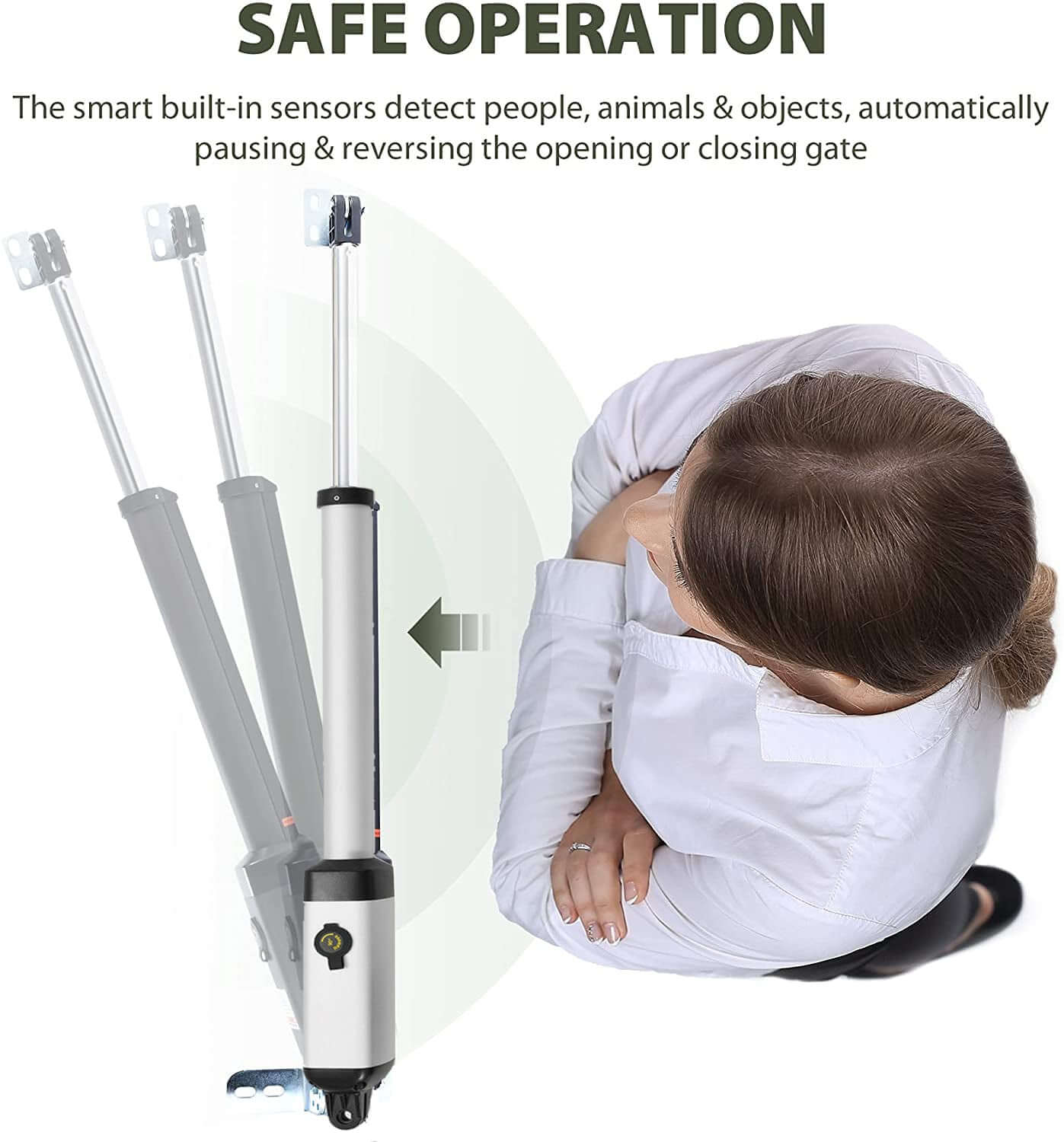

Ritrox Farm Solar RX365S Gate Opener demonstrating safe operation with obstruction detection and reverse feature.

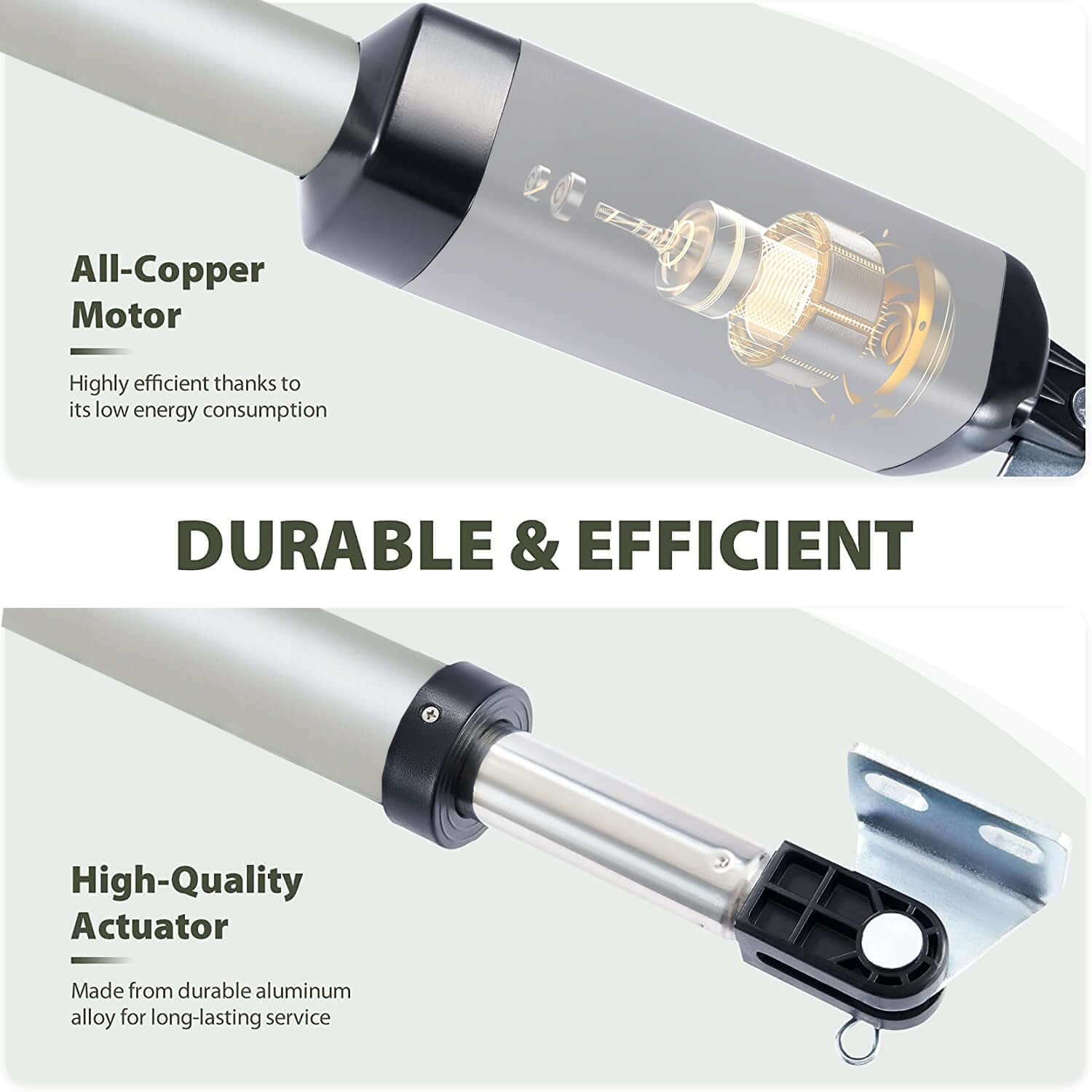

Close-up of Ritrox Farm Solar RX365S swing gate opener with all-copper motor and high-quality aluminum actuator showing durability.
3x car sun visor clips with keys hanging from car visor organizer, ideal for storage and organization inside vehicles.

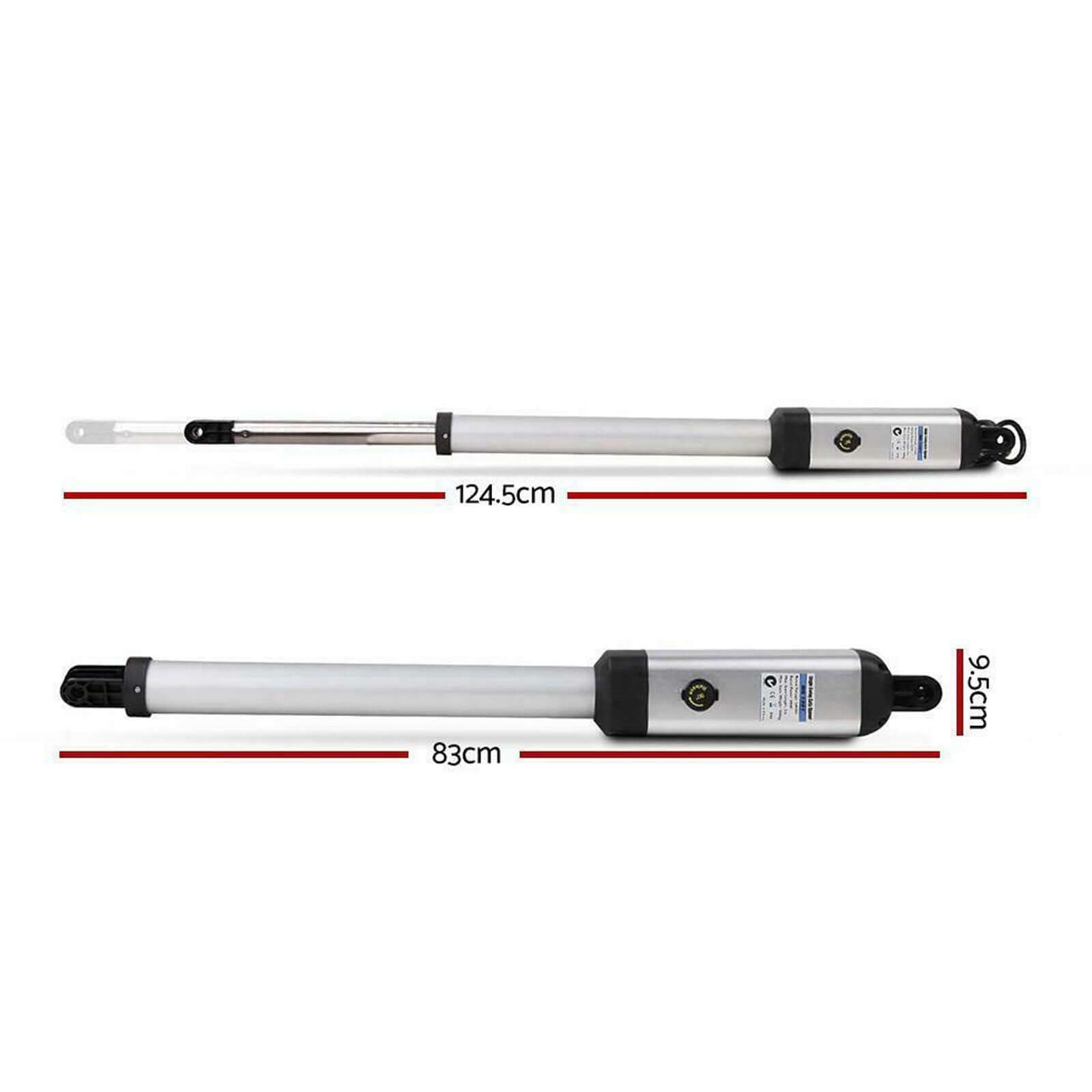

Ritrox Farm Solar RX365S swing gate opener shown with dimensions; ideal for Garageway gates up to 5m wide and 500kg per arm.
Business professional using Ritrox Farm Full Solar RX365S remote for Garageway gate

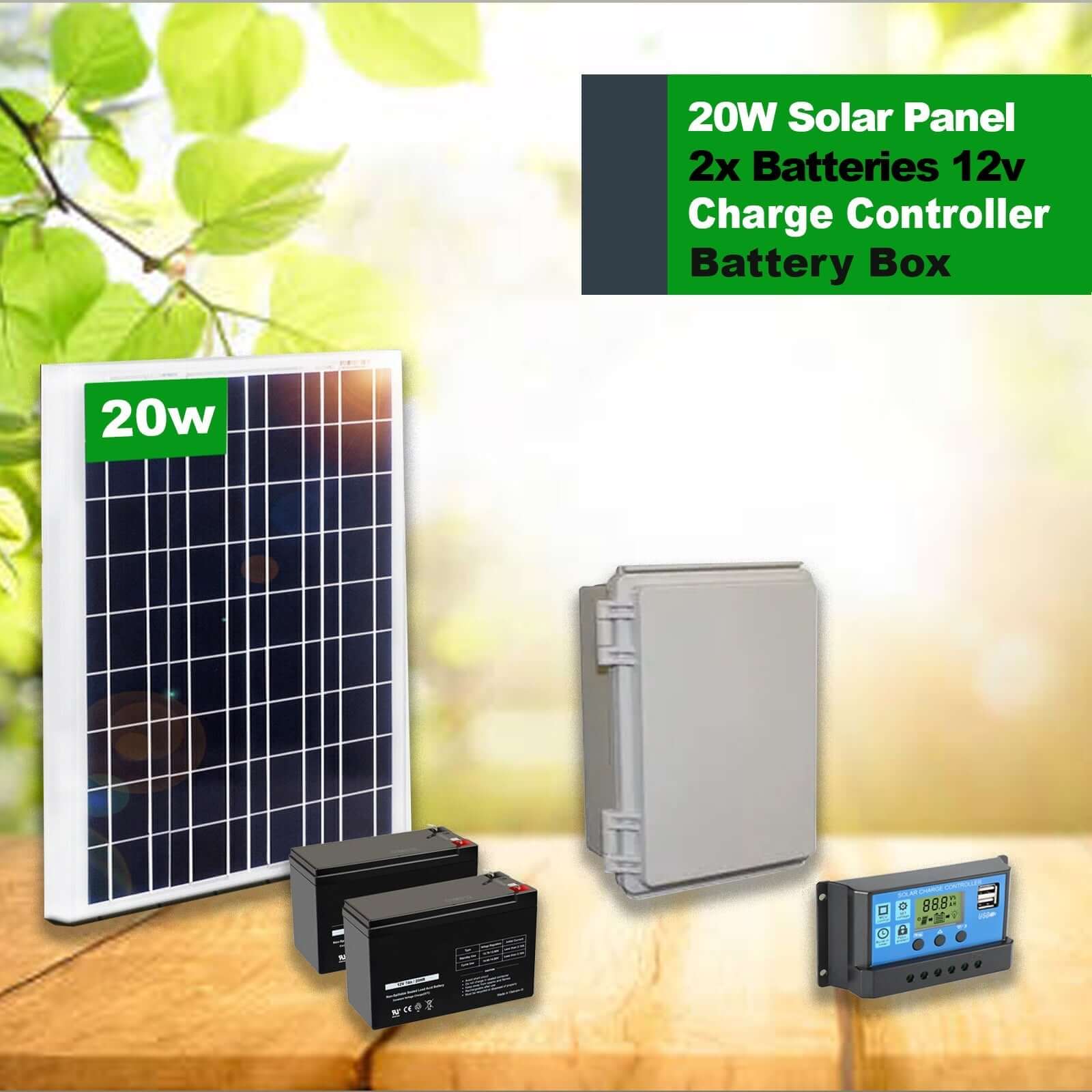

20W solar panel kit with 2x 12V batteries, charge controller, and battery box for swing gate opener.
Warning about coin/button cell battery hazards; keep away from children due to risk of severe injuries or fatality if ingested.
Ritrox Solar RX365S Gate Opener corrosion-resistant aluminum frame with mounting hardware.
Ritrox Solar RX365S Single Swing Gate Motor with 20W solar panel installed on a wooden gate in a residential setting.
Diagram of TCS3 Solar Charge Controller with features: monocrystalline solar cell, tempered glass, aluminum frame, and charge protection.
Garageway.com.au

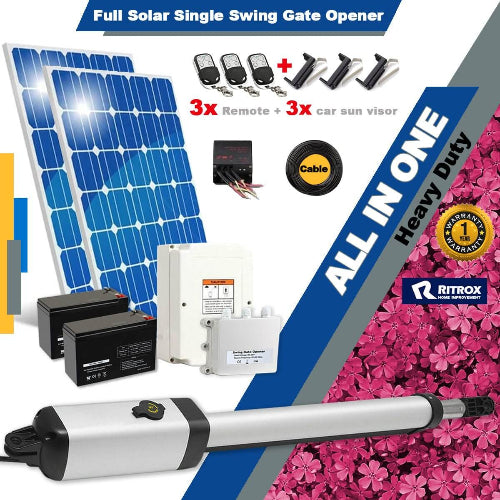

Ritrox Farm Full Solar RX365S Swing Gate Opener 3x Remote

Sale price$635.00

Manual/Instructions PDF Download



Ritrox RX365S Farm Full Solar Single Swing Gate Opener – 24V System with 3 Remotes & Dual 10W Solar Panels | 5m / 500kg Capacity

Secure and automate your single swing gate with the Ritrox RX365S Full Solar Gate Opener, purpose-built for rural driveways and off-grid properties. Designed to handle gates up to 5 metres wide and 500kg in weight, this durable opener runs on solar power—no need for mains electricity.

The complete 20W solar kit includes 2 x 10W panels, 2 x 12V rechargeable batteries, and a solar charge controller, providing efficient, low-voltage operation even in challenging weather conditions. With a waterproof control box, IP55-rated motor, and 3 remote controls, this system ensures reliable access, security, and long-lasting performance.

☀️ Key Features:

  • Full Solar Power: Dual 10W solar panels, 2 x 12V batteries & solar charge controller included

  • Single Gate Automation: Supports gates up to 5m wide and 500kg per arm

  • Weather-Resistant Design: IP55-rated motor and waterproof IP44 control box

  • Safe & Efficient: 24V low voltage system with automatic stop and reverse function

  • Wireless Control: Includes 3 remote controls (30m range) and 3 car sun visor clips

  • DIY-Friendly: Easy installation with included hardware and user manual

📊 Specifications:

  • Motor Voltage: DC 24V

  • Operating Voltage: 24VDC

  • Input Power: 230V/50Hz or 120V/60Hz

  • Motor Power: 50W

  • Max Gate Weight: 500kg

  • Max Gate Width: 5m

  • Current Draw: 3A

  • Actuator Speed: 16mm/s

  • Actuator Travel: 385mm

  • Motor Protection: IP55

  • Control Box Rating: IP44

  • Remote Battery Type: 12V 27A (alkaline zinc manganese)

  • Assembly Required: Yes

📦 Package Includes:

  • 1 x Gate Opener Arm

  • 1 x Waterproof Control Panel

  • 3 x Remote Controls

  • 3 x Car Sun Visor Clips

  • 2 x 10W Solar Panels with Mounting Hardware

  • 2 x 12V Rechargeable Batteries

  • 1 x Solar Charge Controller

  • 1 x Weatherproof Battery Box

  • 1 x Gate Bracket

  • 1 x Post Bracket

  • 1 x Allen Key

  • 6m Connection Cable

  • 1 x Installation Manual & Hardware Kit

Perfect for remote entrances, farm gates, or rural driveways, the Ritrox RX365S Solar Gate Opener with 3 Remotes offers smart, eco-friendly, and durable automation — ready for Australia’s toughest conditions.
