Ritrox Solar RX365S Single Swing Gate Motor

Sale price$649.00

Ritrox Solar RX365S Single Swing Gate Motor

Ritrox Farm Full Solar RX365S Swing Gate Opener 4x Remote



Manual/Instructions PDF Download



Features:

One swing arm for use with single gates
Gates up to 5m in width and up to 500kg in weight per arm

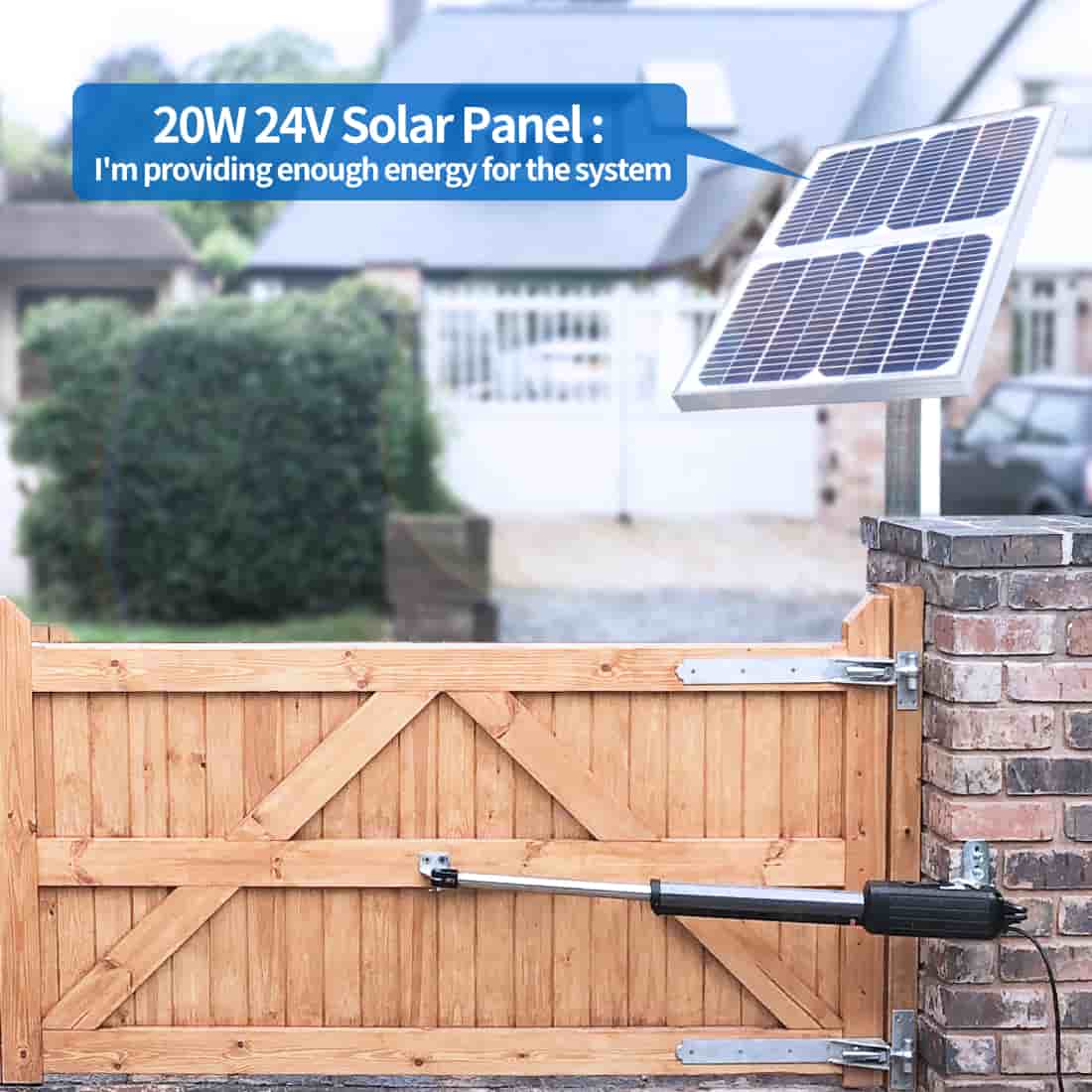

20w full solar kit with 2x12v batteries and solar charge controller
Waterproof and dustproof control box
Low power consumption
24V low voltage system
High-quality aluminium swing arm
Stop and reverse mode for obstructions

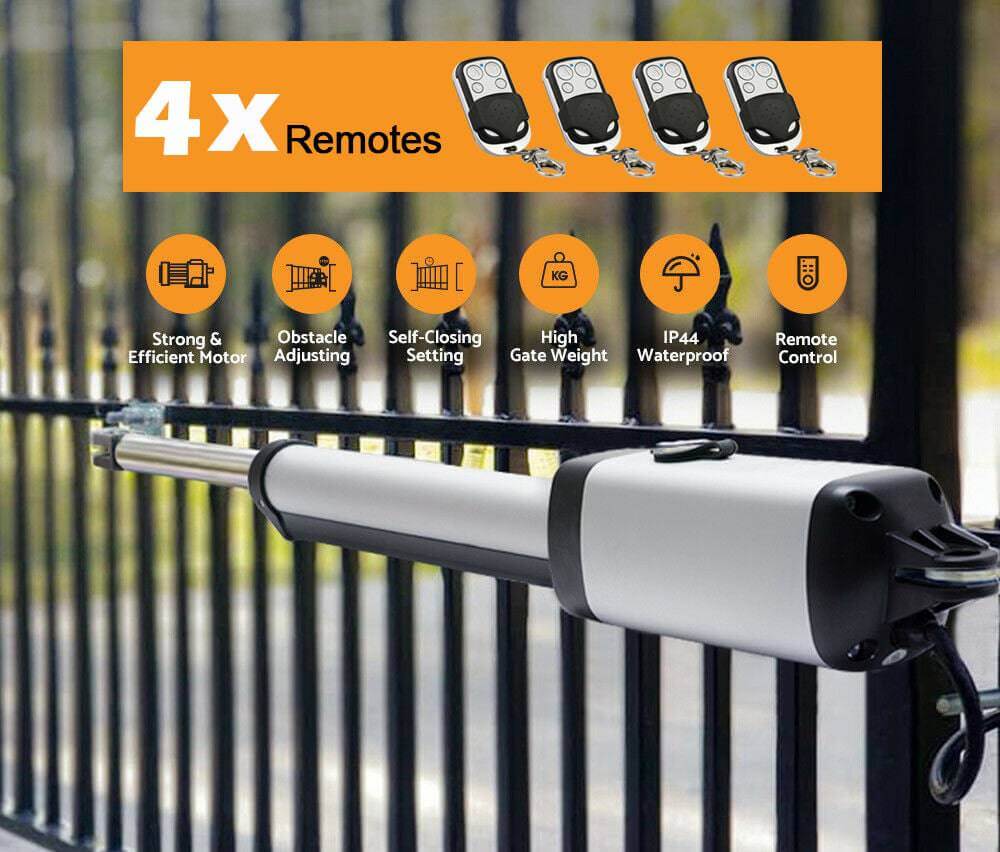

4x Remote Controls w/ 30m operation range
Installation hardware


Specifications:

Motor Voltage: DC 24V
Input: 230V/50Hz or 120V/60Hz
Power: 50W/arm
Gate weight: Up to 500kg
Gate width: Max 5m
Current: 3A
Actuator speed: 16mm/s
Actuator travel: 385mm
Protection class: IP44
Power supply: Electric
Assembly Required: Yes
Remote control battery: Alkaline zinc manganese battery 12V 27A



Package Include:

  • 1 x Gate opener Arm
  • 1 x Control panel
  • 6m cable
  • 4 x Remote Controls
  • 3 x car sun visor clips

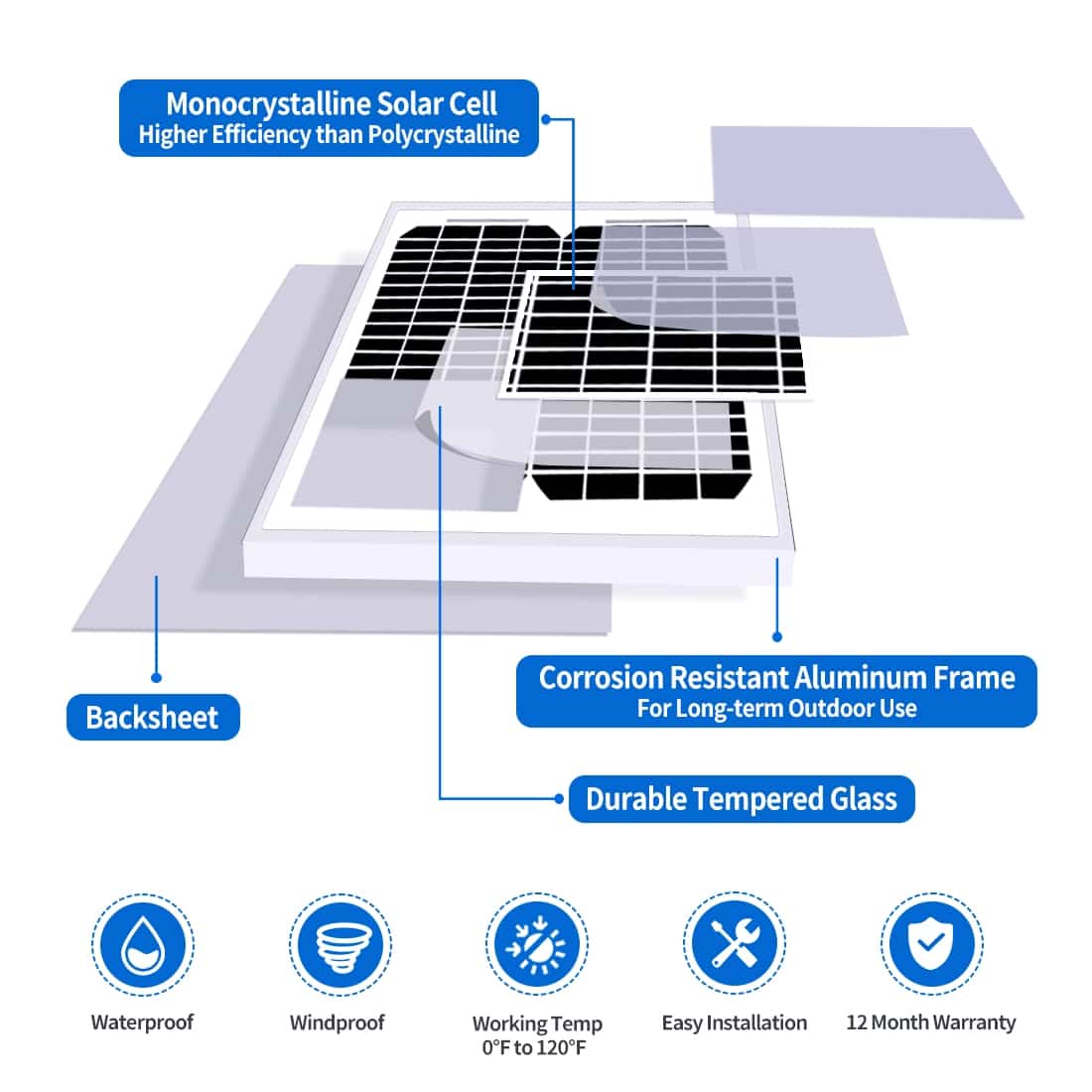

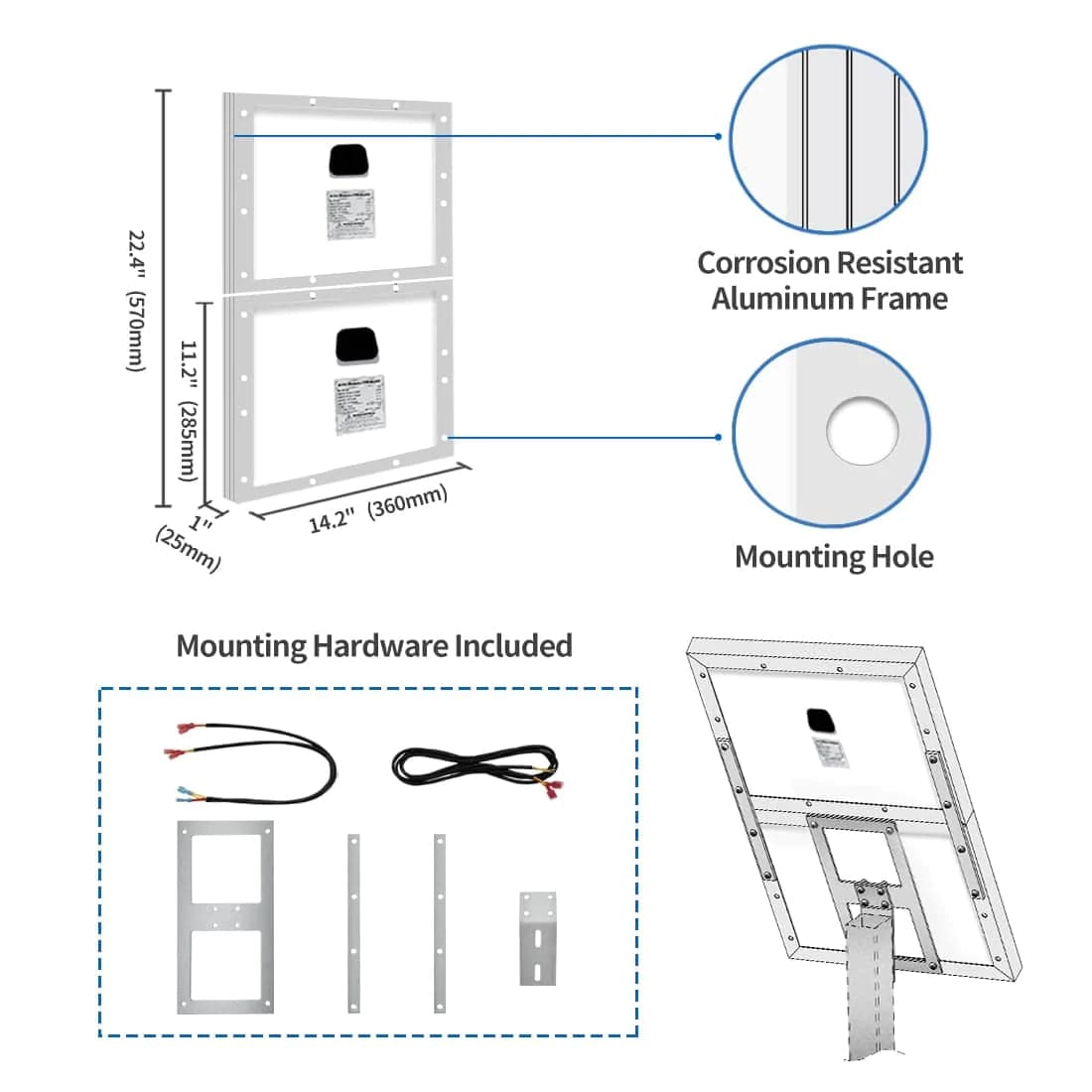

  • 2 x 10w solar panel (Mounting Hardware Included)
  • 2 x 12v batteries
  • 1 x solar charge controller
  • 1 x battery Box
  • 1 x allen key
  • 1 x Gate brackets
  • 1 x post brackets
  • Operating Voltage: 24VDC
  • Operate the gate Max length 5m per leaf
  • IP55 rated motors-built to withstand the harshest environments
