RITROX ECO Full Solar Powered Single Swing Gate Opener/Motor
📄 Download Installation Manual – PDF
RITROX ECO Full Solar Powered Single Swing Gate Opener – 24V with Keypad & Battery Box
Harness the power of the sun with the RITROX ECO Full Solar Powered Single Swing Gate Opener, designed for eco-conscious users who need reliable and efficient gate automation. Engineered for single swing gates up to 3 metres and 250kg, this system is fully self-powered and comes with solar panels, batteries, a charge controller, wireless keypad, and remotes – everything you need for a complete, off-grid setup.
✅ Key Features:
-

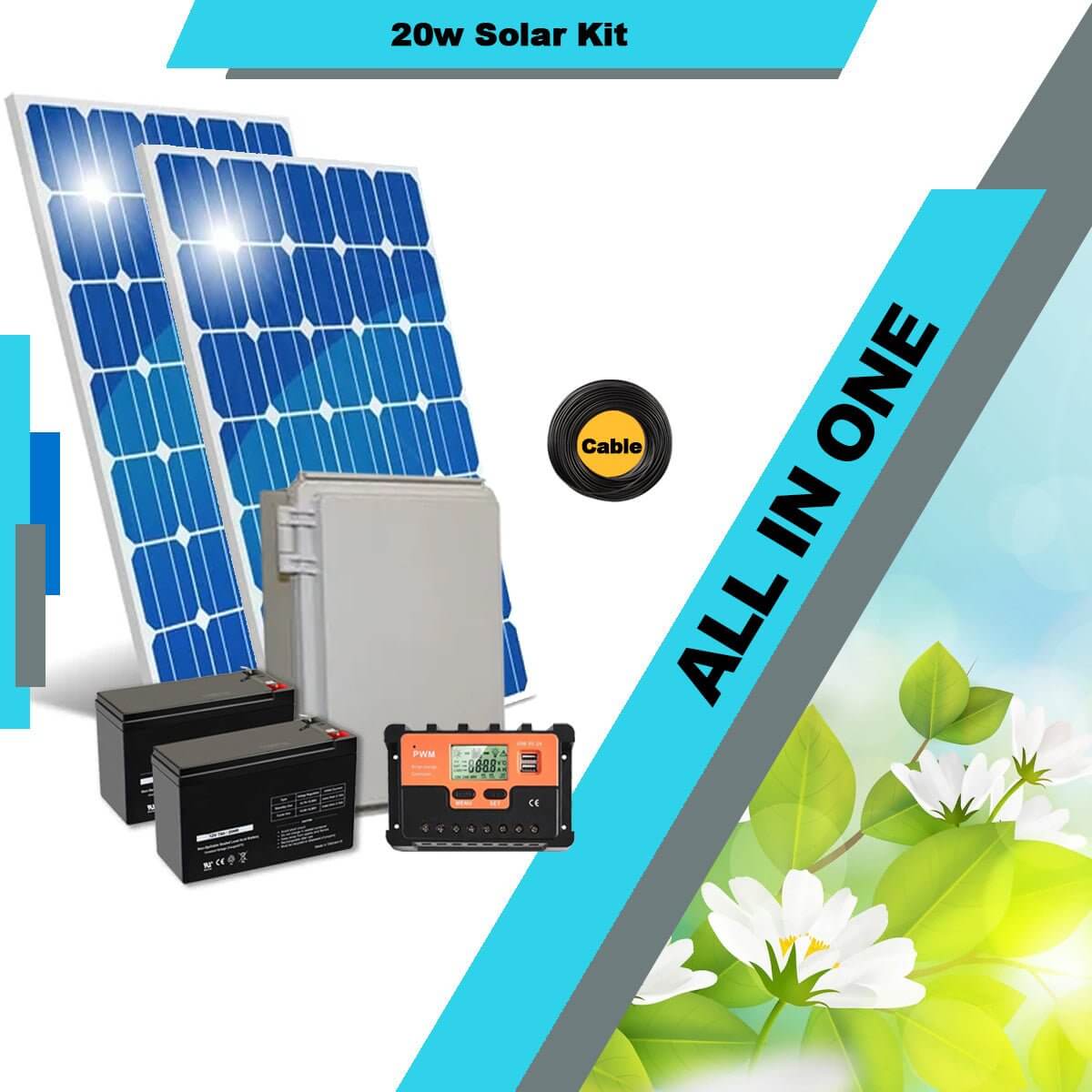

Solar-Powered System: Includes 2 x 10W solar panels, 2 x 12V batteries, and waterproof solar controller – no mains power required
-
Single Gate Arm: Suitable for gates up to 3m in width and 250kg in weight
-
24V Low Voltage Operation: Energy efficient and safe for DIY installations
-

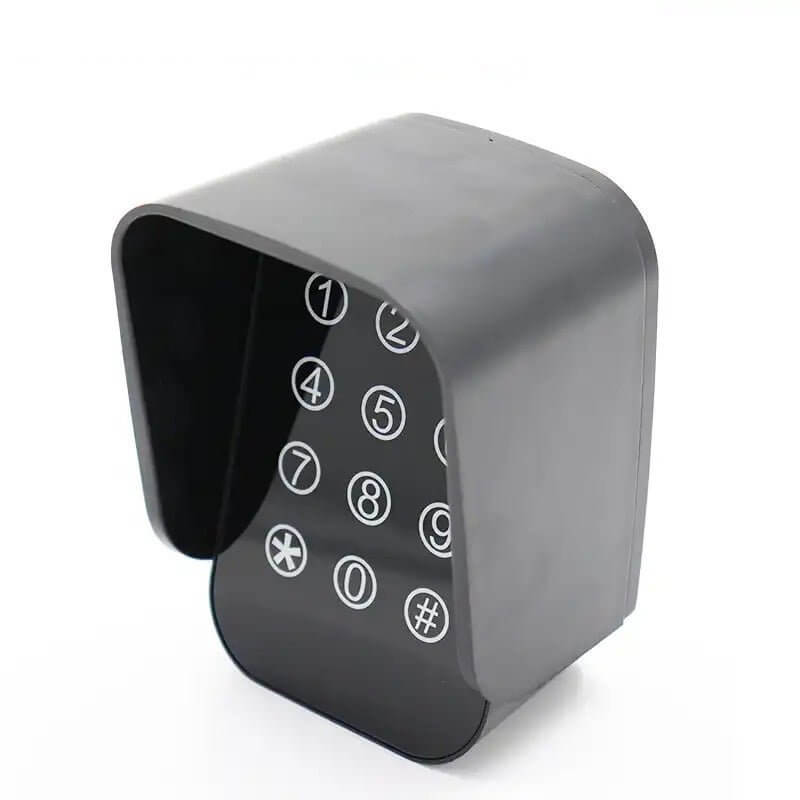

Wireless Keypad Included: For convenient, secure keyless access
-

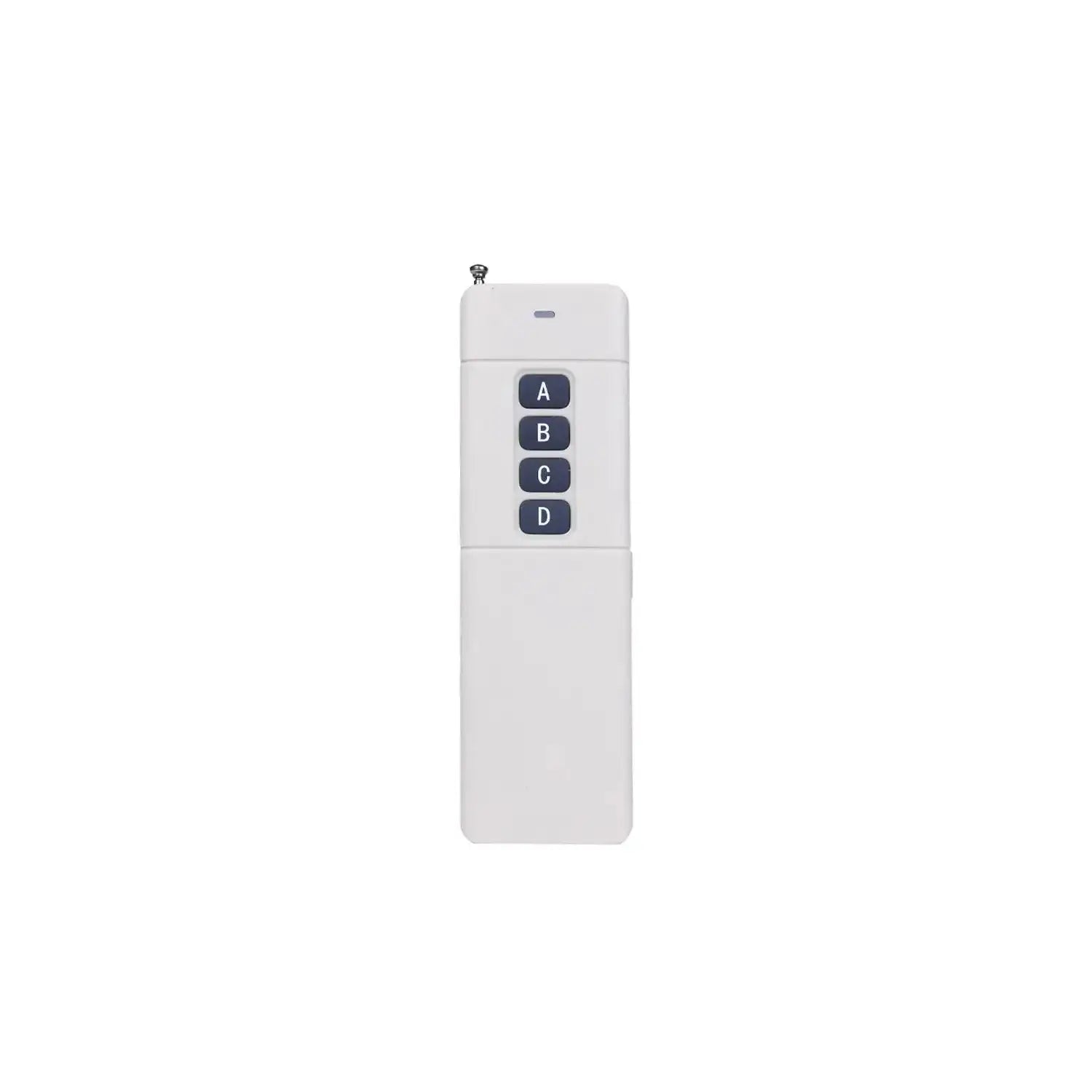

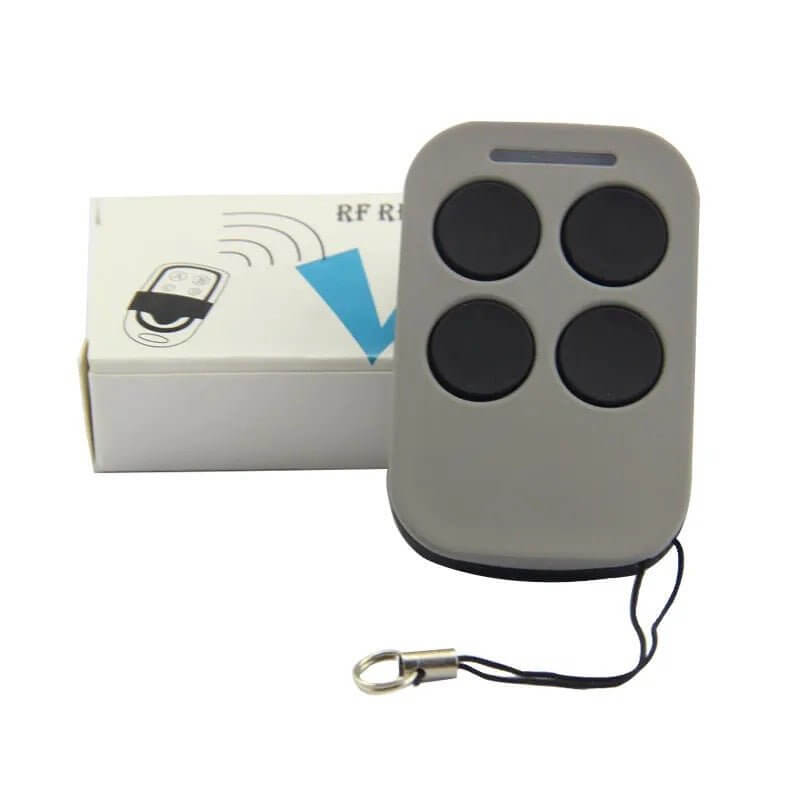

3 Remote Controls: Includes long-range and visor-style remotes (30m range)
-
Durable Aluminium Actuator: Lightweight, corrosion-resistant build for long-lasting performance
-
Obstacle Detection: Auto stop and reverse to prevent damage or injury
-
All Hardware Included: Ready-to-install with brackets, Allen key, and clips
-
Dustproof & Waterproof: Control box rated IP44; actuator rated IP55 for outdoor durability
⚙️ Technical Specifications:
-
Motor Voltage: DC 24V
-
Power Input: 230V/50Hz or 120V/60Hz (for optional AC charging)
-
Power per Arm: 40W
-
Max Gate Width: 3m
-
Max Gate Weight: 250kg
-
Actuator Travel: 385mm
-
Speed: 16mm/s
-
Current Draw: 3A
-
Remote Battery: 12V 27A (alkaline zinc manganese)
-
Protection Rating: IP44 (Control Panel), IP55 (Motor)
-
Assembly Required: Yes
-
Ships In: 1 Package

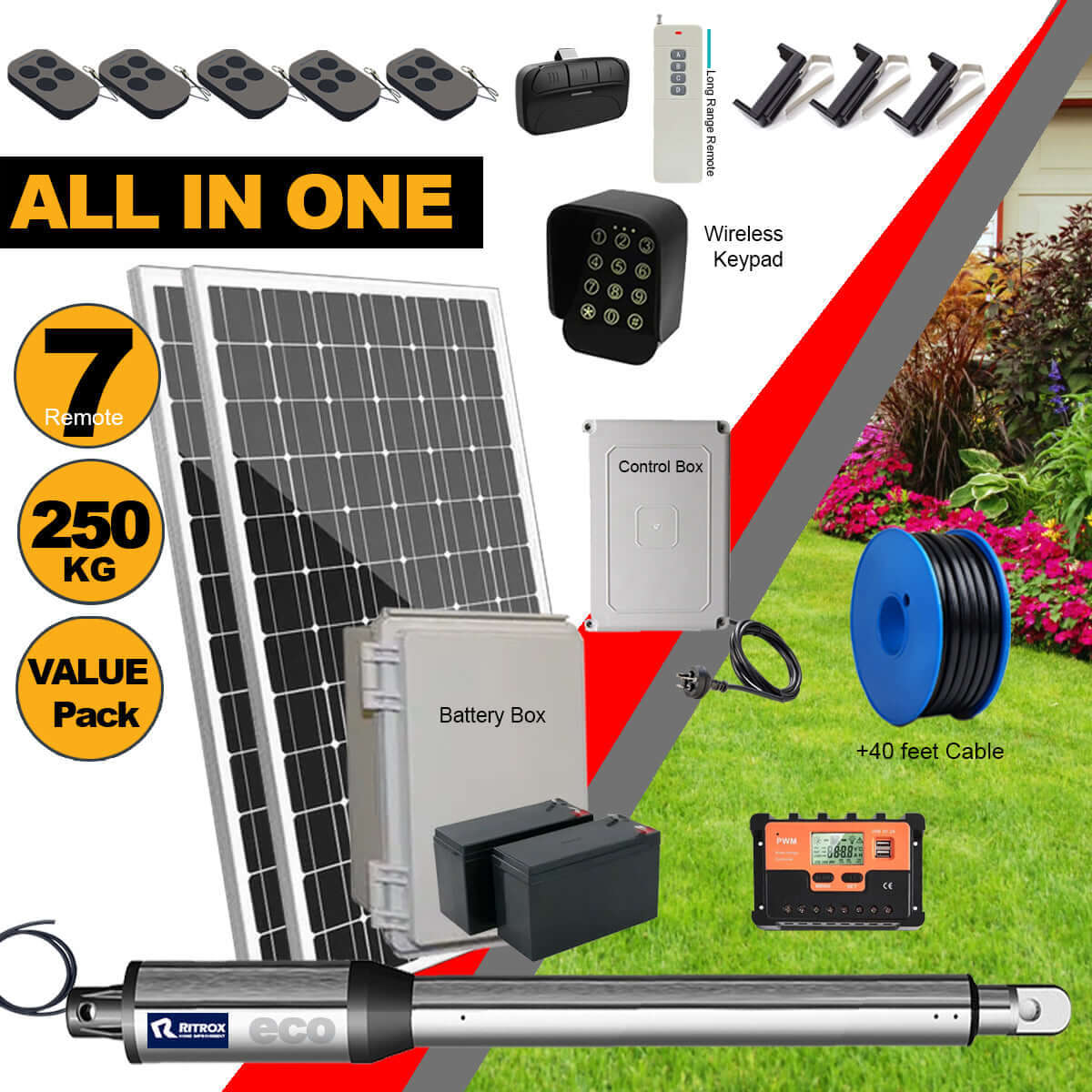

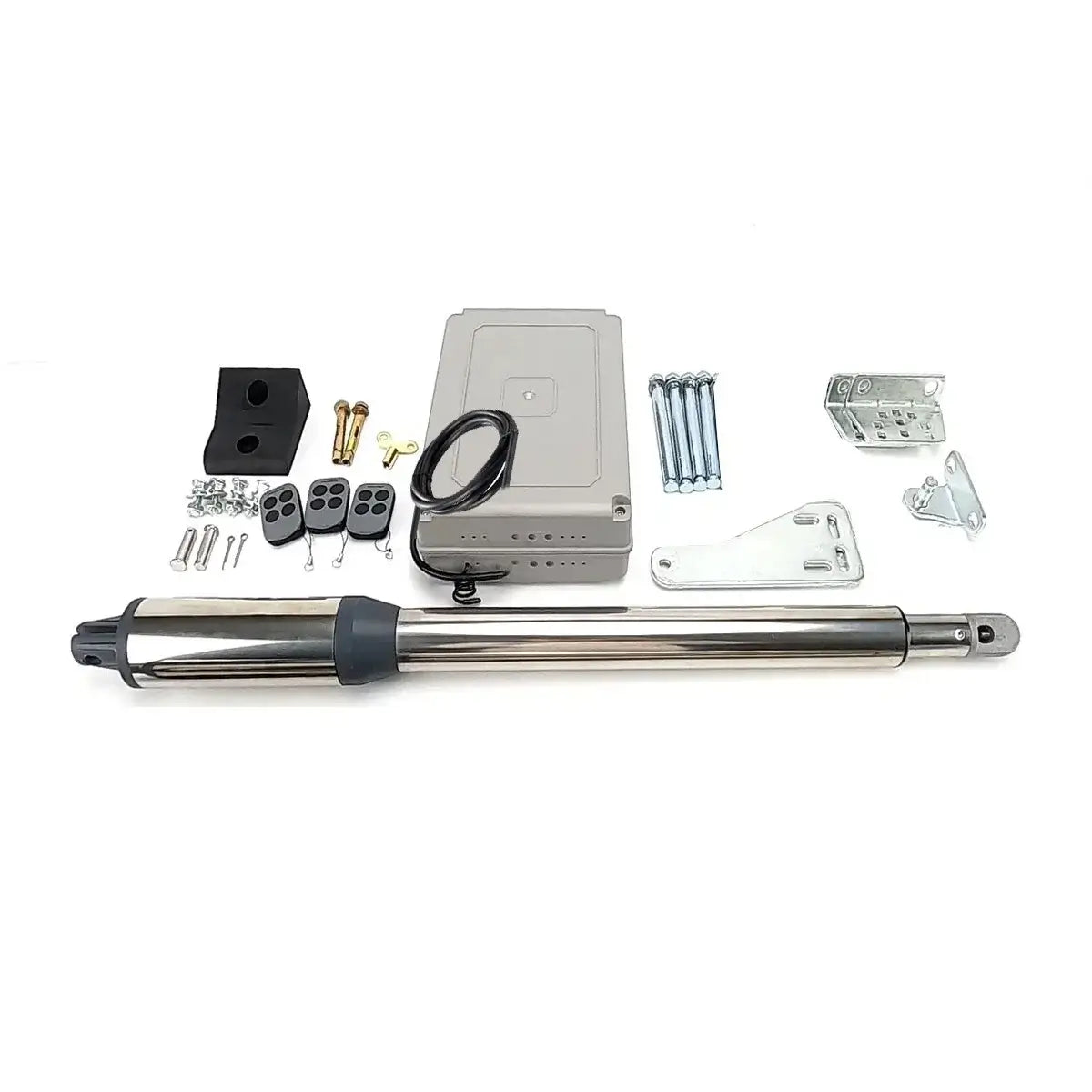

📦 Package Includes:
-
1 x Swing Gate Arm
-

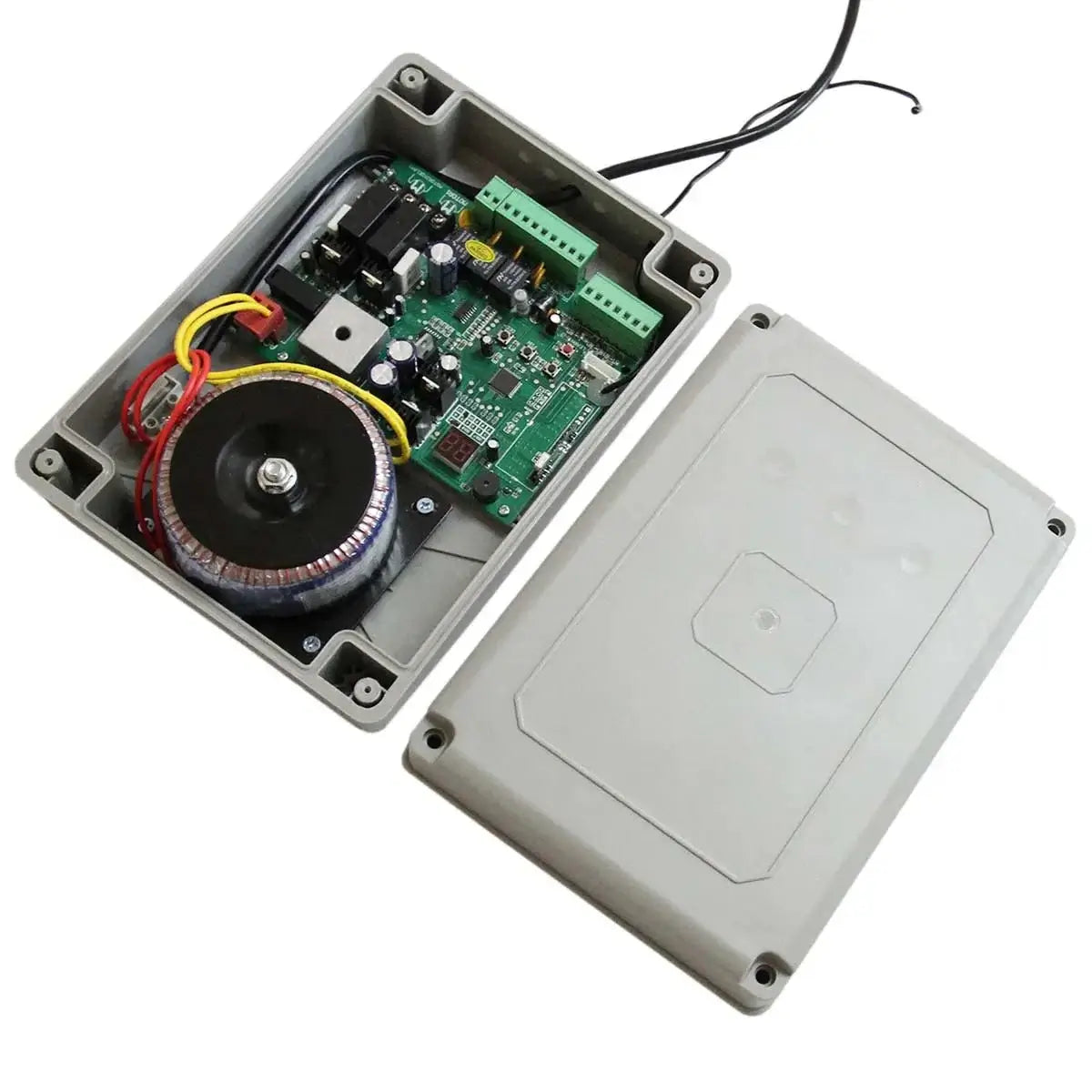

1 x Control Panel
-

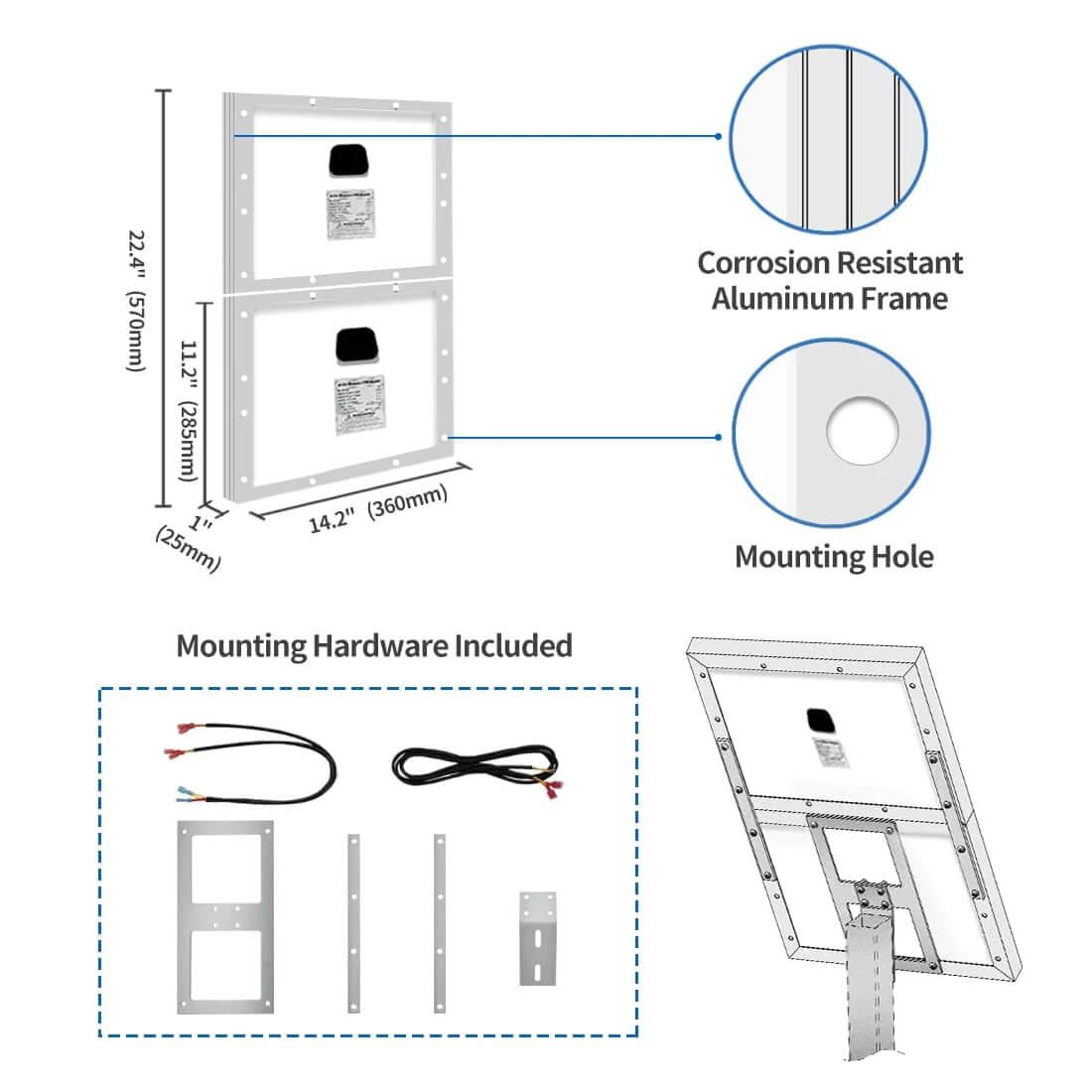

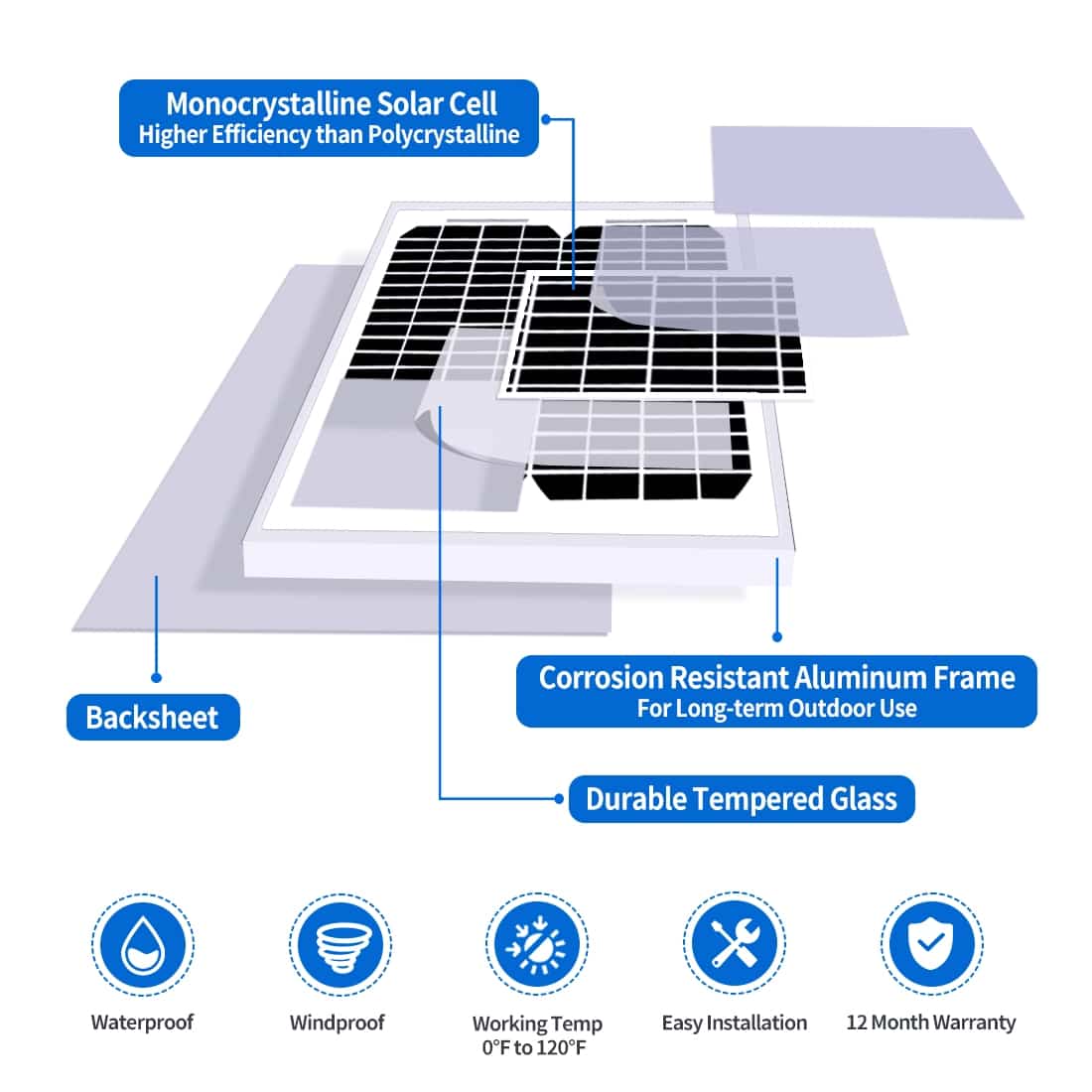

2 x 10W Solar Panels with Mounting Holder
-
1 x Solar Charge Controller
-
2 x 12V Rechargeable Batteries
-
1 x Battery Box
-

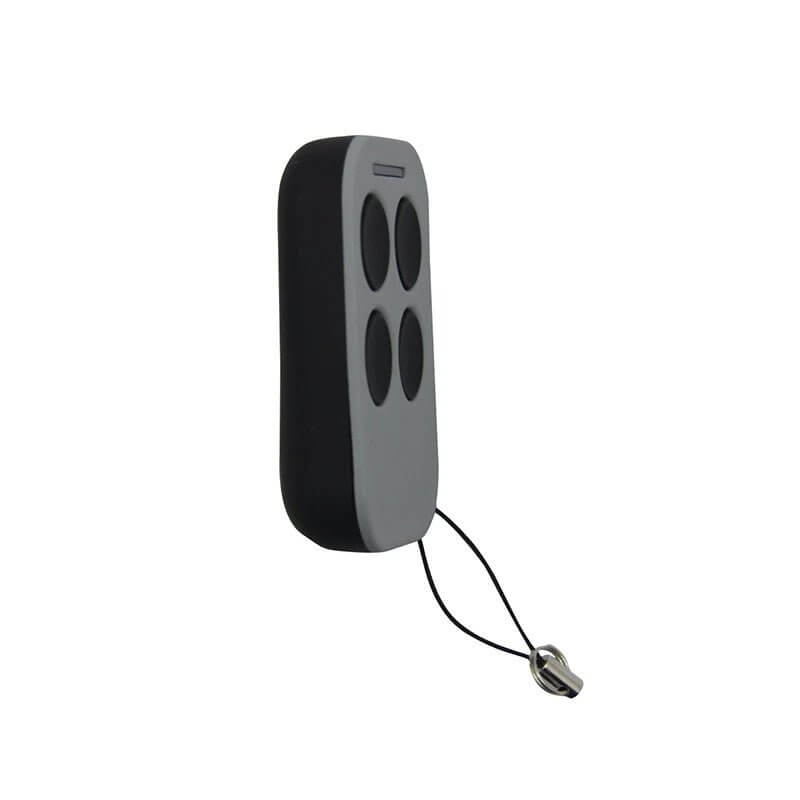

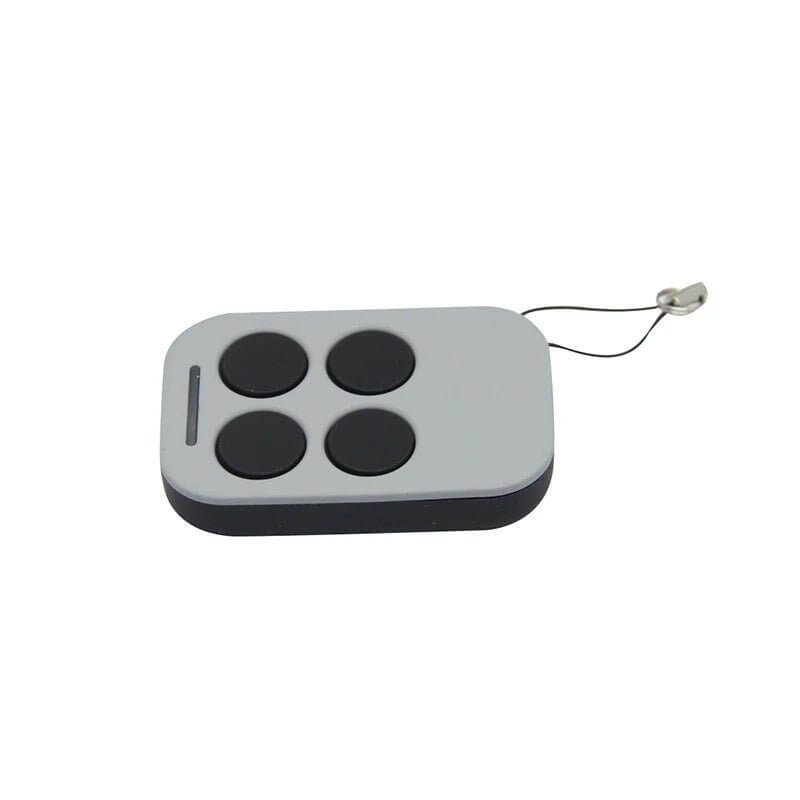

3 x Remote Controls (Standard, Long-Range, and Visor)
-

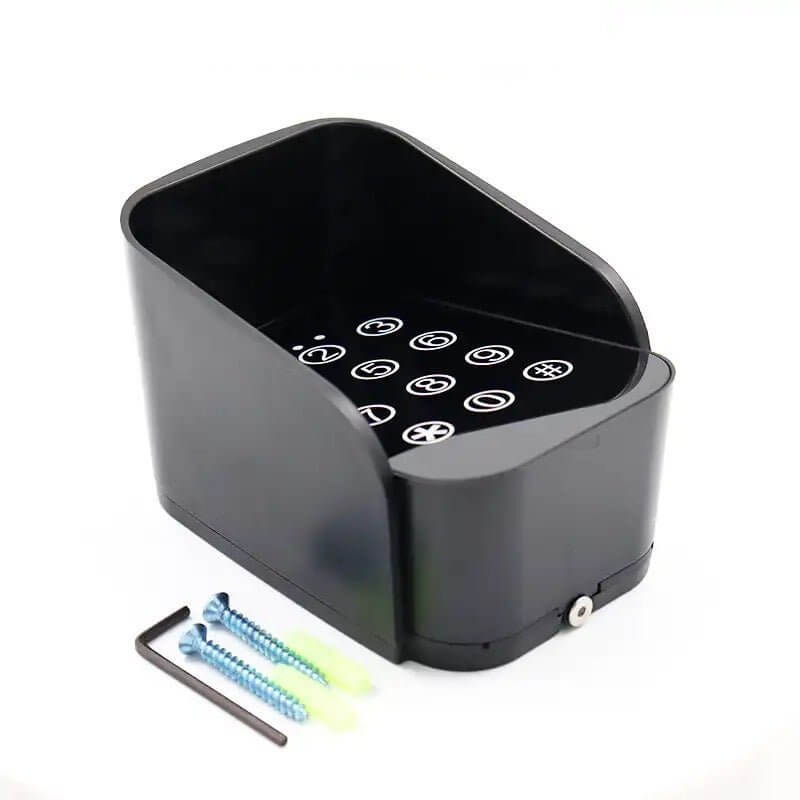

1 x Wireless Waterproof Keypad
-

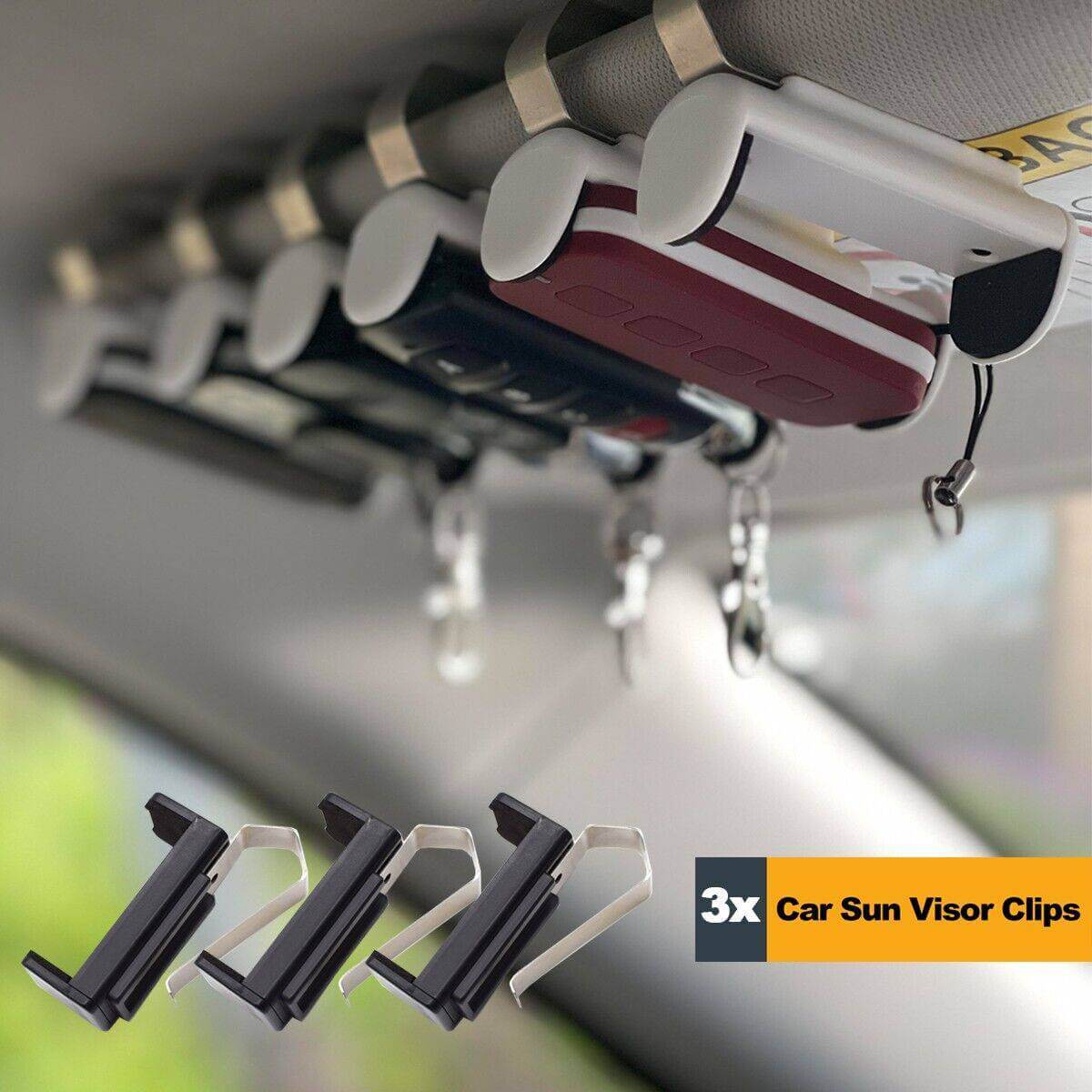

3 x Car Visor Clips
-
1 x Allen Key
-
1 x Gate Bracket
-
1 x Post Bracket
Ideal for rural, off-grid, or eco-friendly properties, this RITROX ECO solar kit gives you everything needed for full gate automation—without needing power lines. Reliable, efficient, and built for harsh Australian conditions.
💡 Reduce your energy bills and boost your convenience with a clean, solar-powered gate opener.
