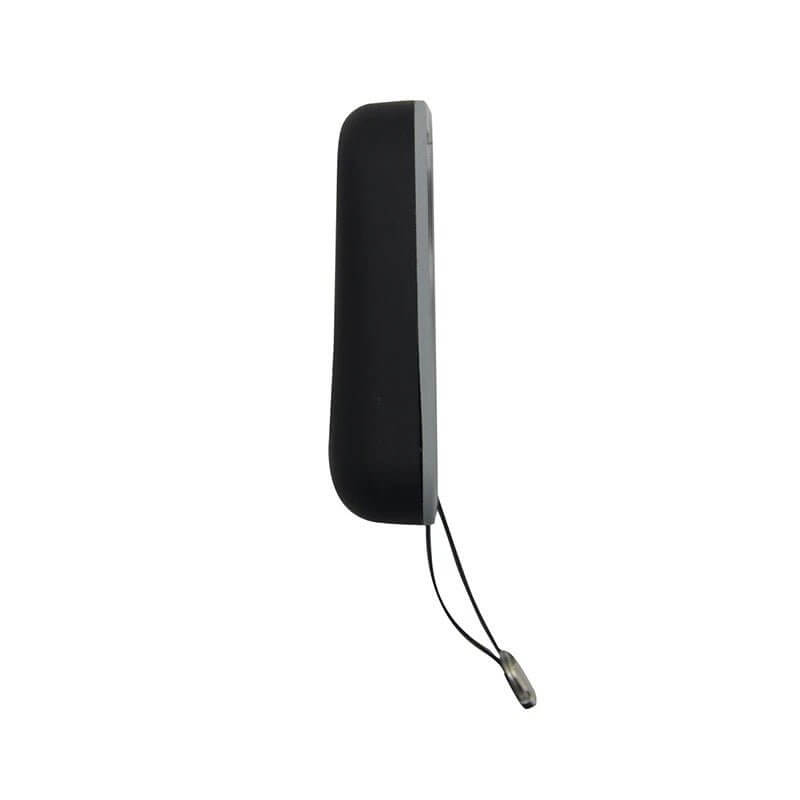

Side view of the RITROX ECO Electric Single Swing Gate Opener Motor showing sleek design and keychain attachment.
Car sun visor clips set of 3 holding sunglasses and keys in a vehicle, showcasing convenient interior organization.
RITROX ECO Full Solar Powered Single Swing Gate Opener/Motor - Garageway.com.au

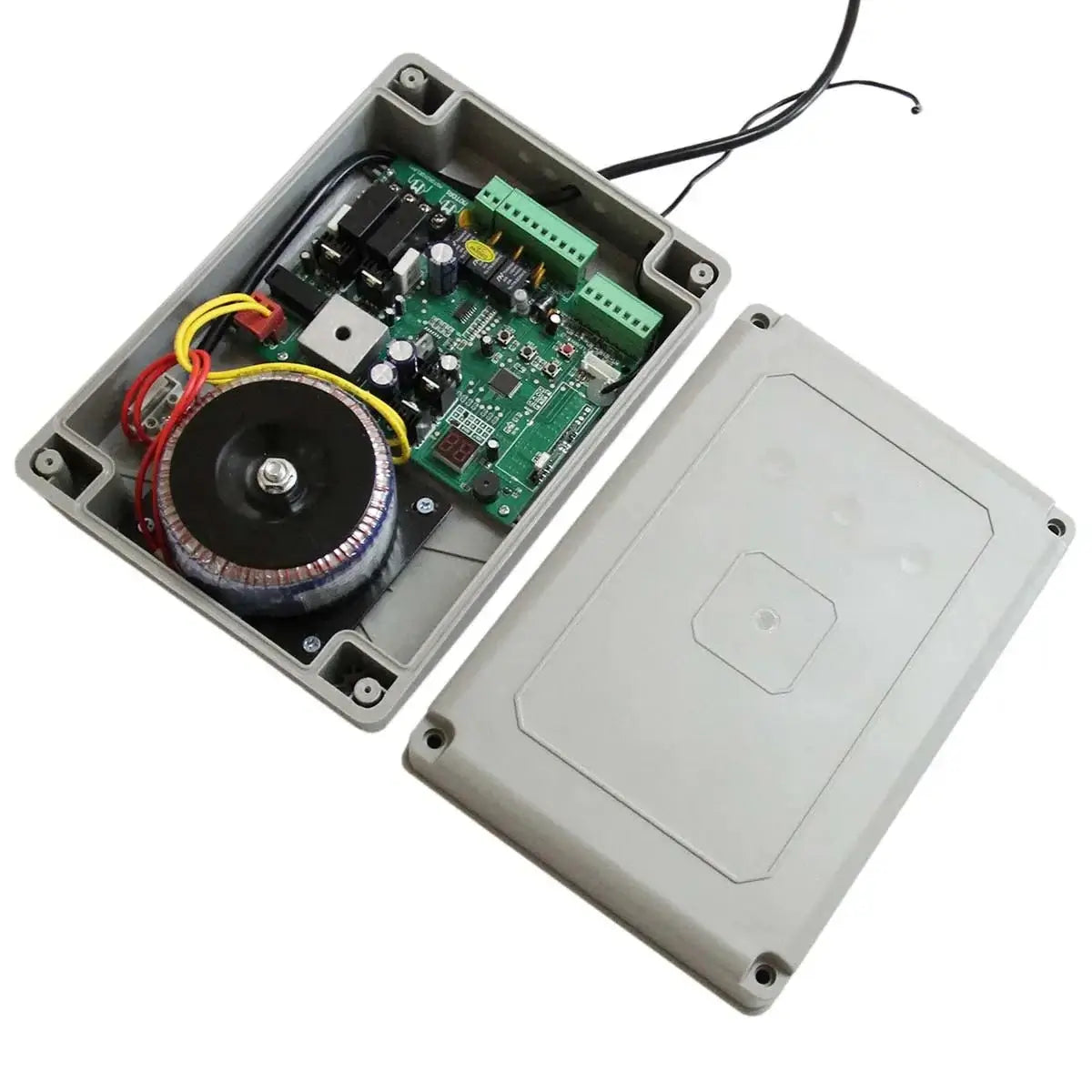

Open control box for RITROX ECO Single Swing Gate Opener, showcasing waterproof design and high-quality circuitry components.
Remote control for RITROX ECO Electric Swing Gate Opener, featuring four buttons and a keychain attachment.
RITROX ECO remote control for electric swing gate opener, featuring four buttons and a keychain for convenient access
RITROX ECO High Quality Electric Single Swing Gate Opener Motor - Garageway.com.au
Remote control for RITROX K2208 sliding gate opener, black device with buttons for wireless gate operation.
Black lock box with numeric keypad and mounting screws for secure storage
Wireless outdoor keypad for smart gate opener with numeric buttons and protective cover
Warning sign about coin/button cell battery hazard, advising to keep away from children and seek medical help if ingested.
Garageway.com.au

RITROX ECO Electric Single Swing Gate Opener Motor with waterproof wireless Keypad

Sale price$465.00

📄 Download Installation Manual – PDF

RITROX ECO Electric Single Swing Gate Opener Motor – 24V High-Quality System

Experience powerful performance and effortless access with the RITROX ECO Single Swing Gate Opener, designed for single-leaf gates up to 3 metres wide and 250kg in weight. Built with high-grade components and engineered for the Australian environment, this opener combines quiet operation, energy efficiency, and reliable access control—all in one easy-to-install kit.

âś… Key Features:

  • Single Arm Design: Ideal for swing gates up to 3m wide and 250kg

  • 24V Low Voltage System: Safe and energy-efficient, perfect for residential installations

  • High-Quality Aluminium Actuator: Strong, lightweight, and weather-resistant

  • IP44 Rated Control Box: Dustproof and waterproof for outdoor use

  • Obstacle Detection: Auto stop and reverse to prevent accidents

  • Includes 3 Remote Controls: Plus a long-range and visor remote with up to 30m range

  • Digital Adjustment: Fine-tune gate speed, delay, and force as needed

  • Quiet Operation: Low-noise motor with smooth swing movement

  • DIY Friendly: Comes with all required hardware for installation

⚙️ Technical Specifications:

  • Motor Voltage: DC 24V

  • Input Power: 230V/50Hz or 120V/60Hz

  • Power per Arm: 40W

  • Max Gate Width: 3m

  • Max Gate Weight: 250kg

  • Actuator Travel: 385mm

  • Speed: 16mm/s

  • Current Draw: 3A

  • Protection Rating: IP44 (Control Box), IP55 (Motor)

  • Remote Battery: 12V 27A (Alkaline zinc manganese)

  • Assembly Required: Yes

  • Ships In: 1 Package

📦 Package Includes:

  • 1 x Swing Gate Arm

  • 1 x Control Panel

  • 3 x Remote Controls

  • 1 x Long-Range Remote

  • 1 x Visor Remote

  • 3 x Car Visor Clips

  • 1 x Allen Key

  • 1 x Gate Bracket

  • 1 x Post Bracket

  • 1 x Wireless Keypad

Perfect for driveways, farm gates, and residential properties, this RITROX ECO system offers smooth, secure, and convenient access with a focus on performance and durability.

💡 Designed to perform even in Australia’s toughest outdoor environments.
