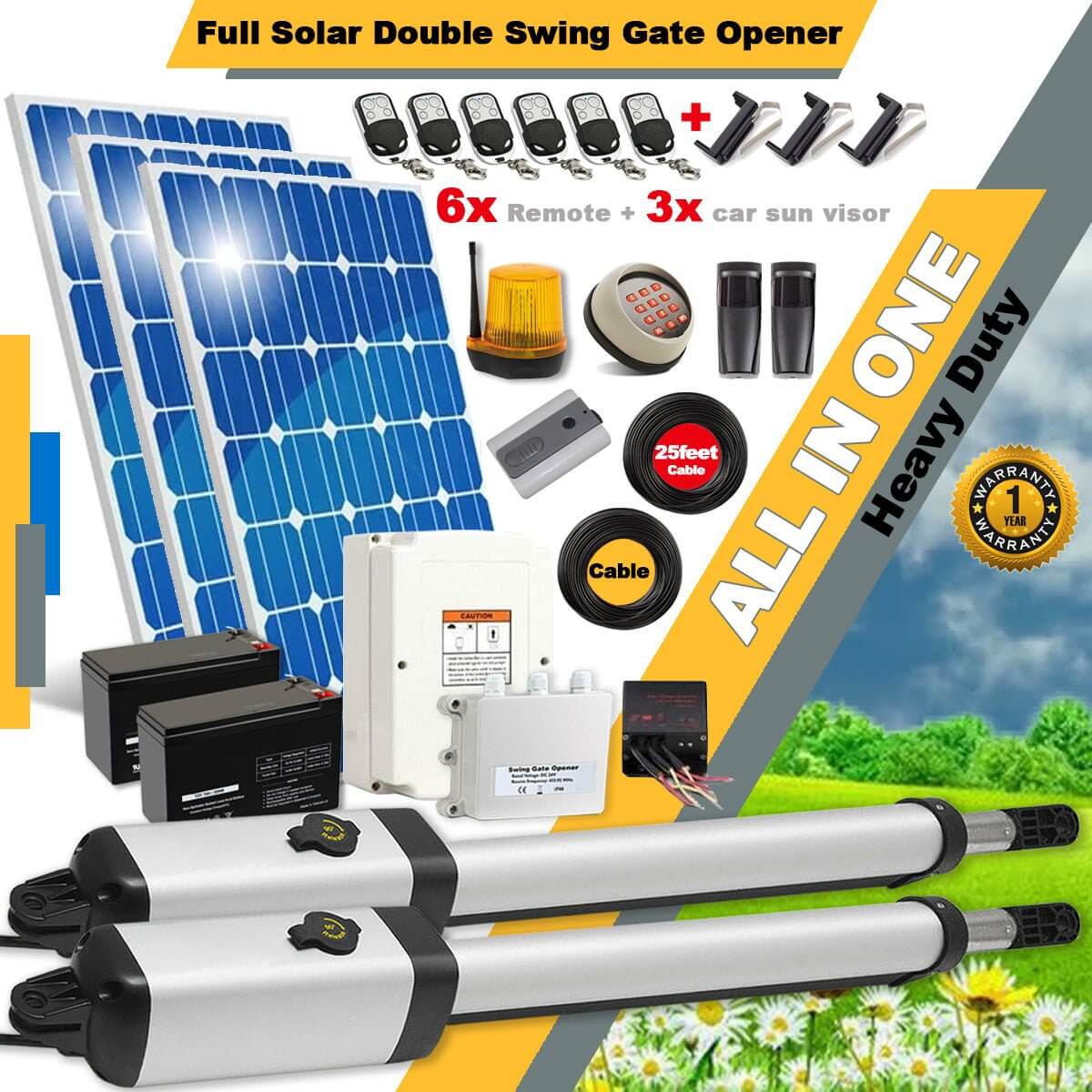

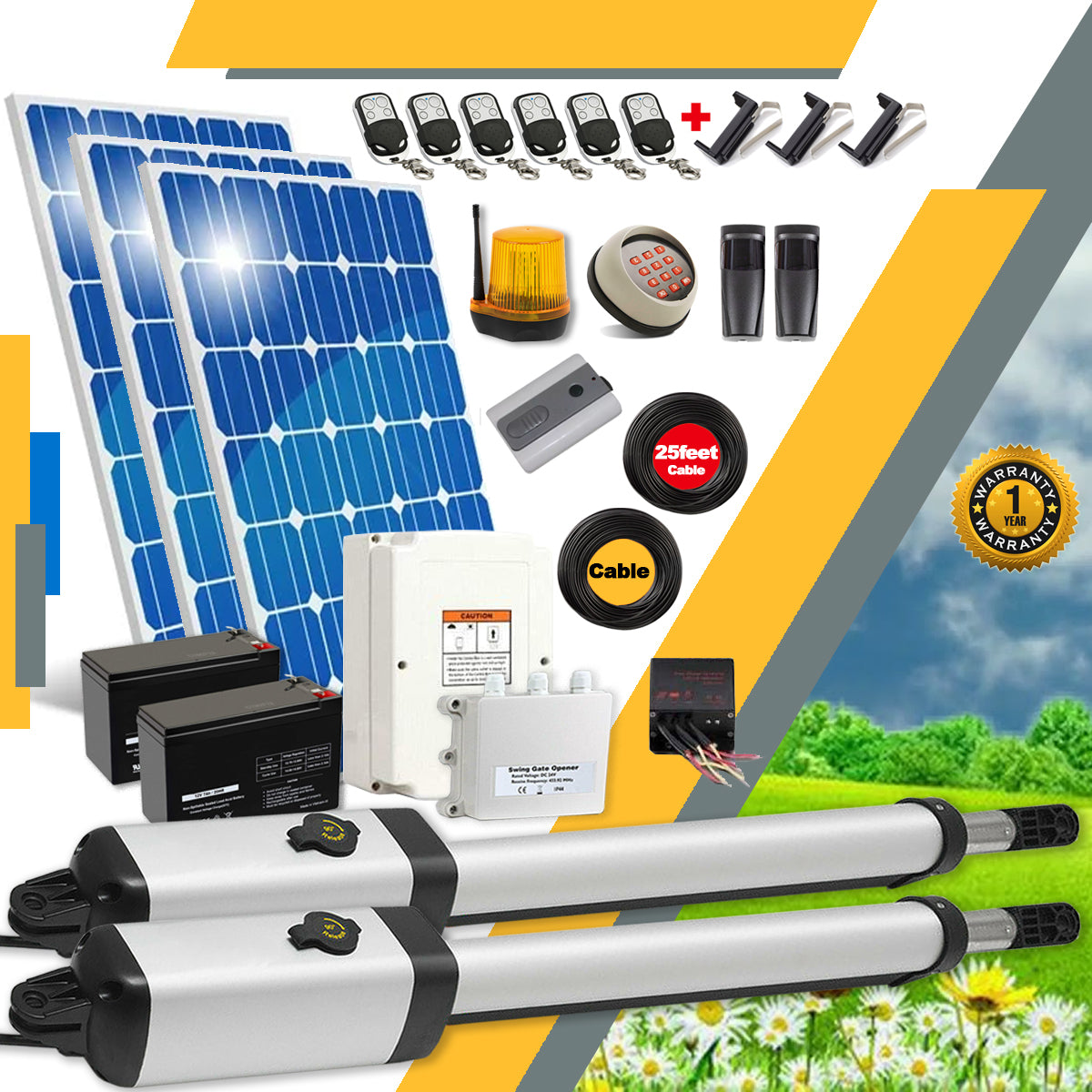

Ritrox RXD365S solar gate opener with heavy-duty swing arms, solar panels, control box, and batteries for garageway security.

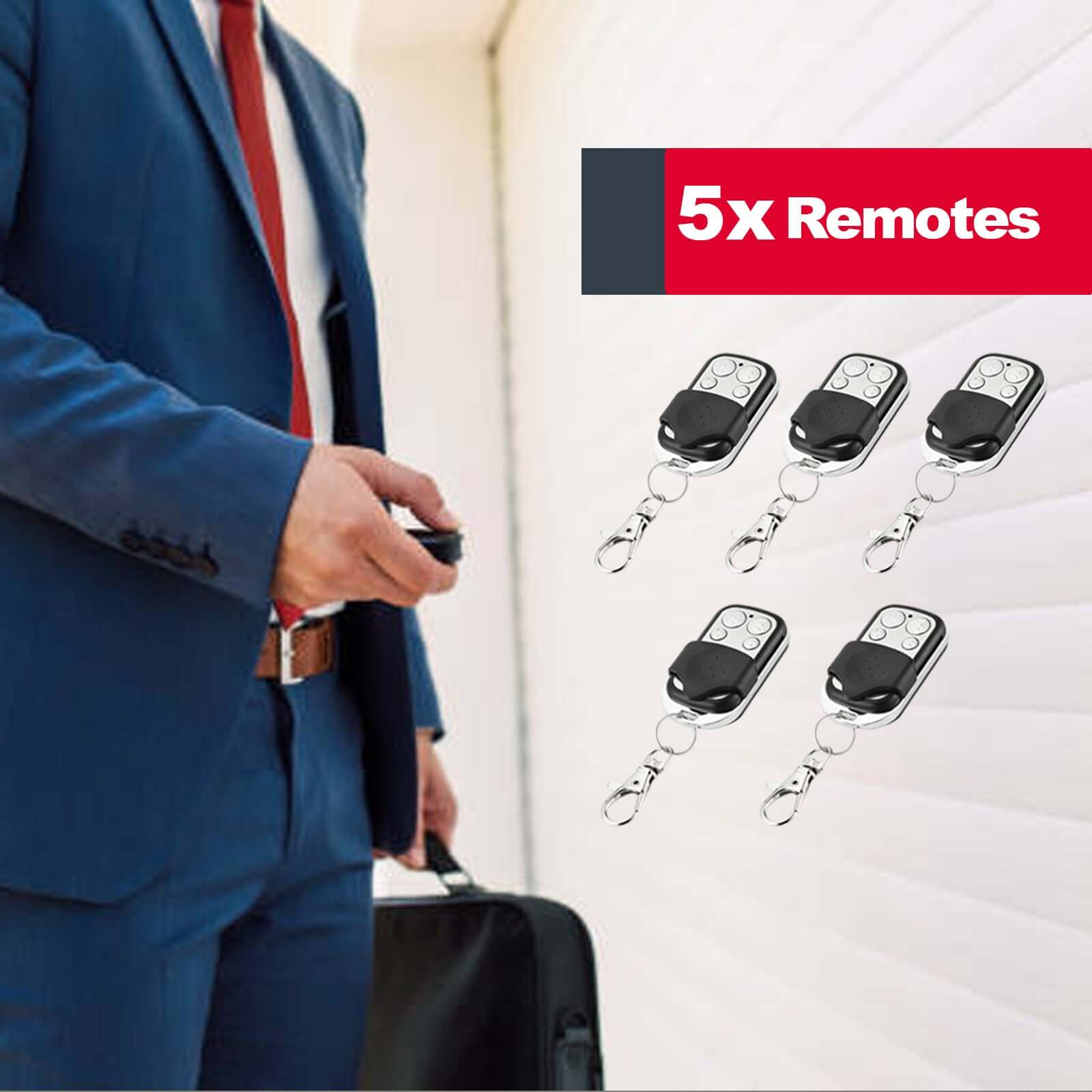

Businessman holding a remote with a garage door background; five additional remotes shown.

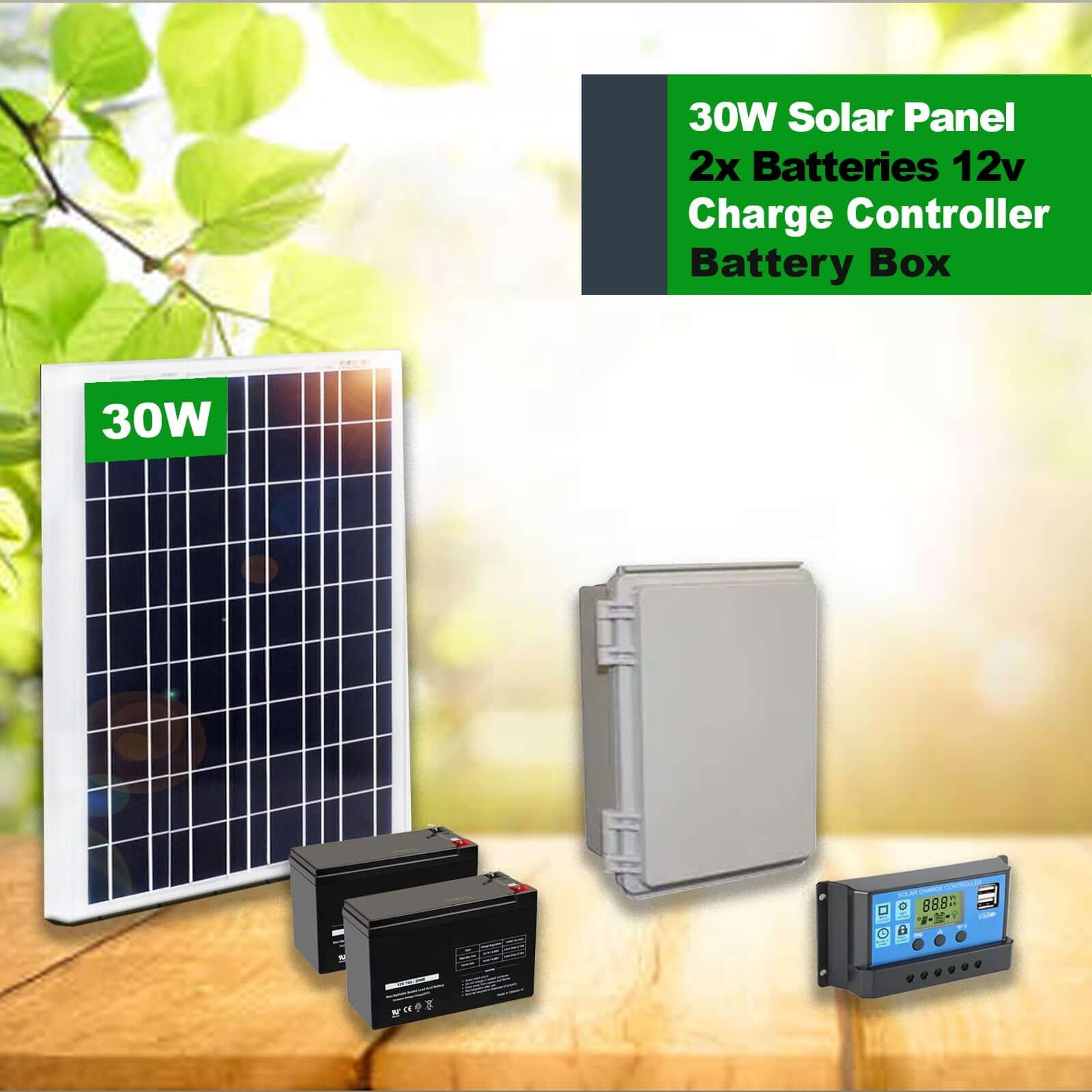

30W solar panel kit with two 12V batteries, charge controller, and battery box for Garageway setups.

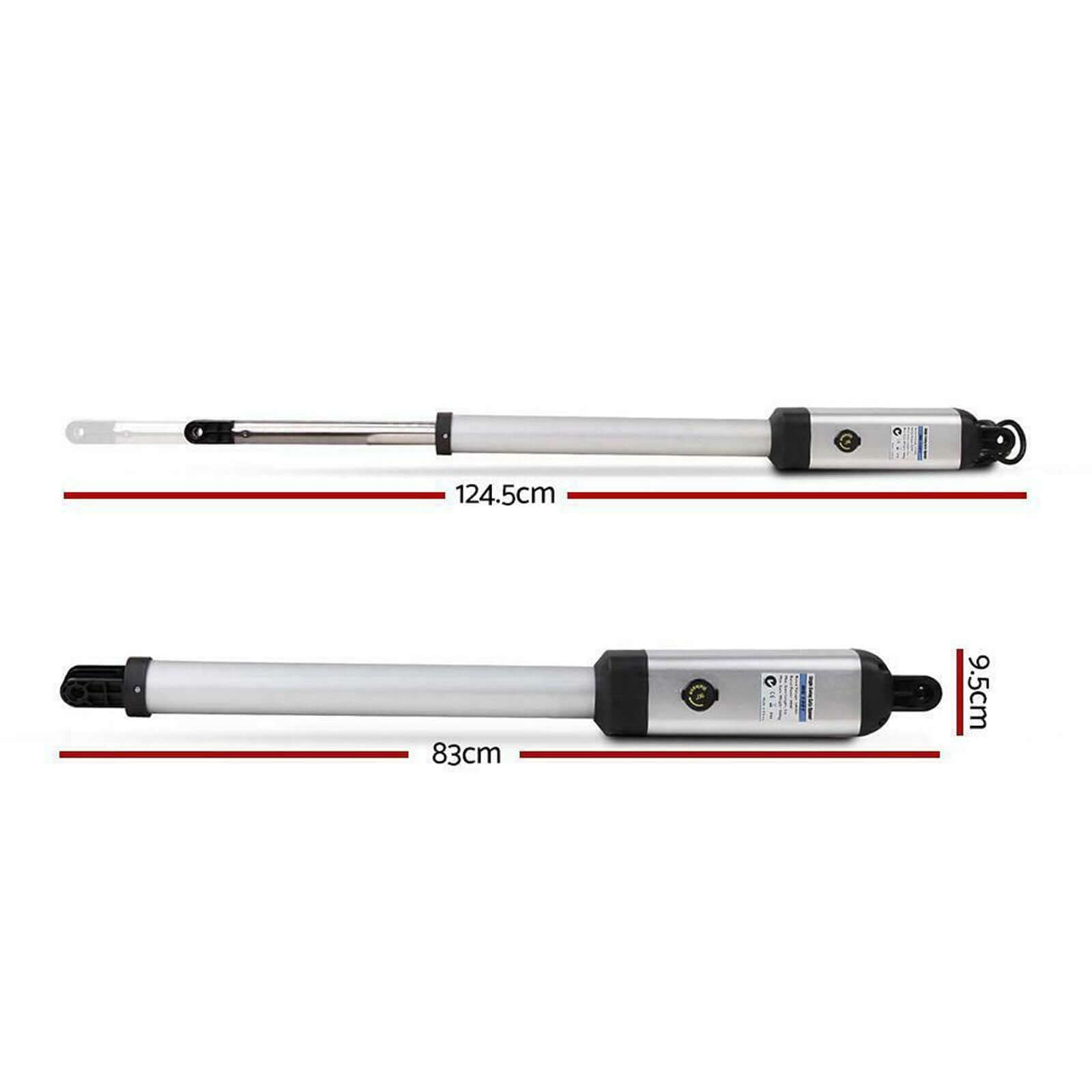

Ritrox RXD365S Solar Gate Opener swing arms showing dimensions for Garageway gates up to 5.5m wide and 500kg each arm.

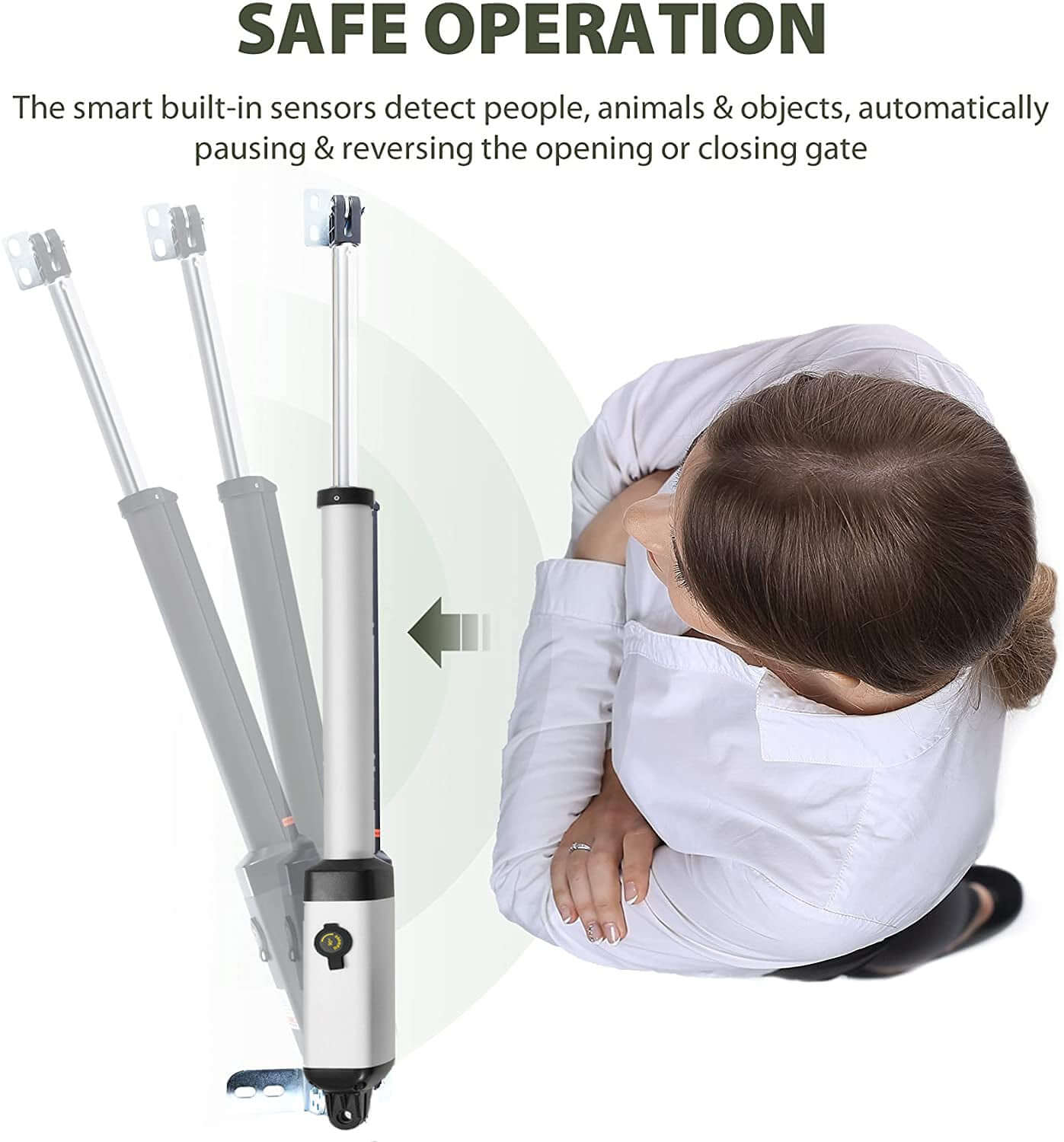

Illustration showing safe operation of the Ritrox RXD365S solar gate opener with automatic stop and reverse sensors.

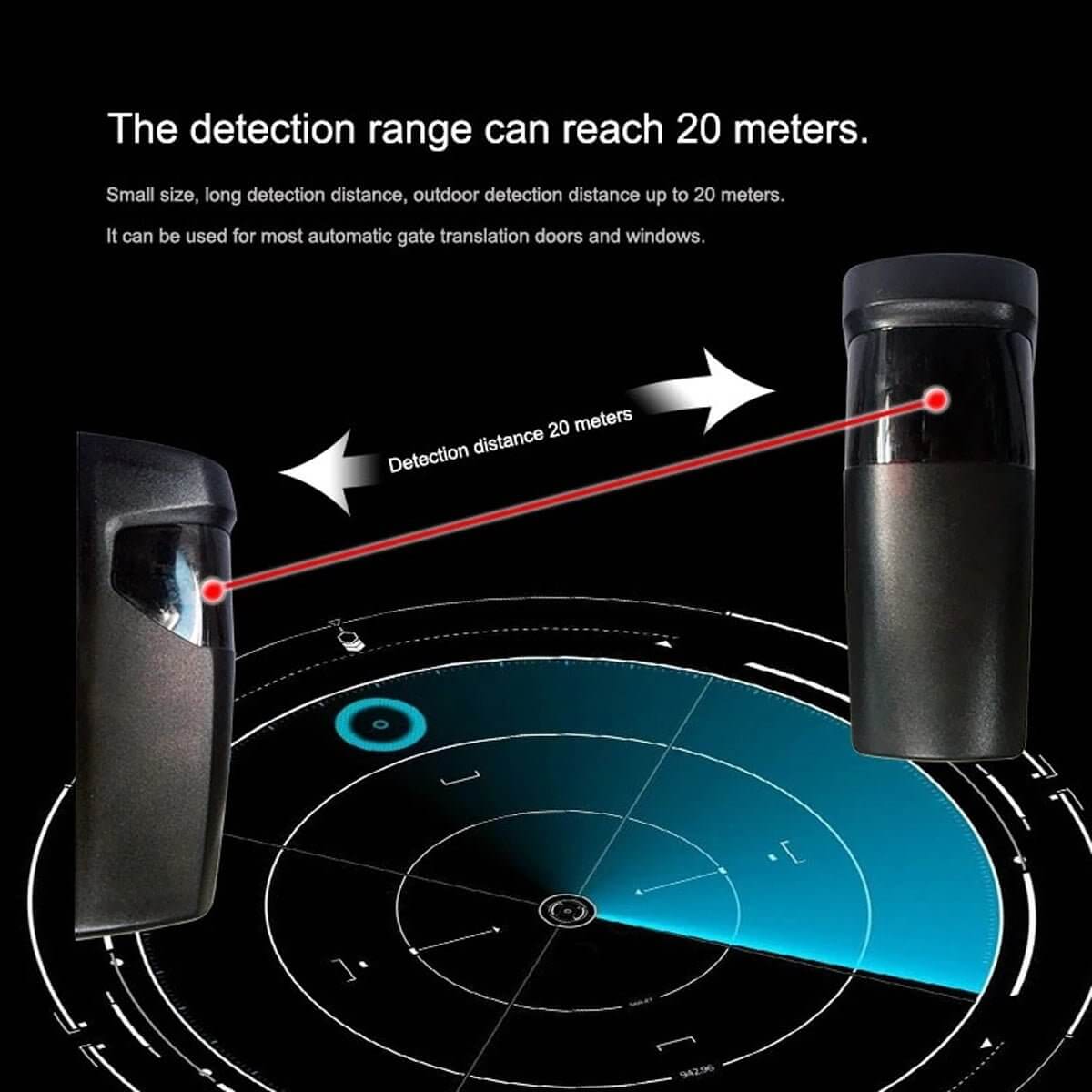

Automatic gate sensor with 20-meter detection range, suitable for indoor and outdoor garageways.

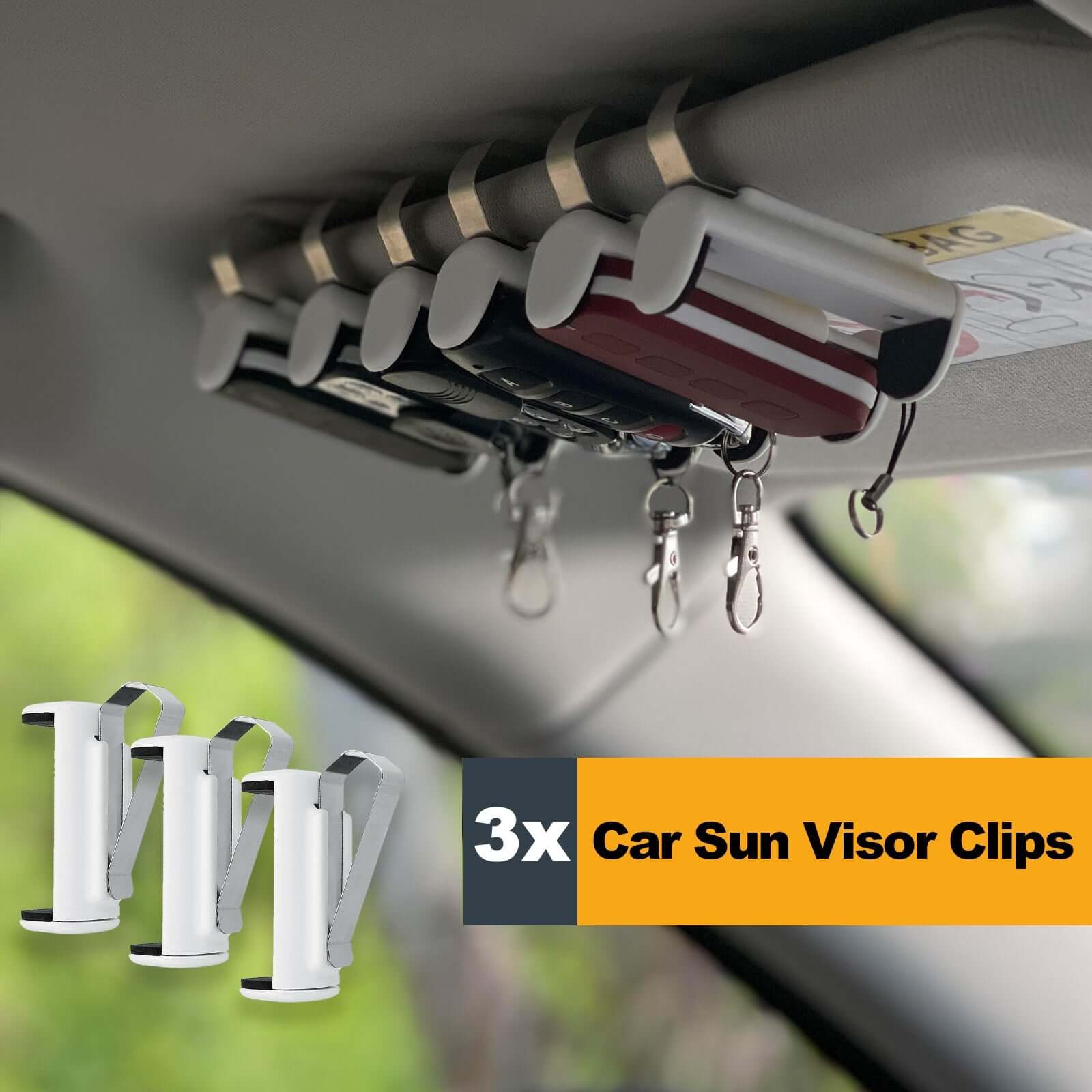

3x car sun visor clips holding sunglasses inside a vehicle, demonstrating organized storage and easy access.

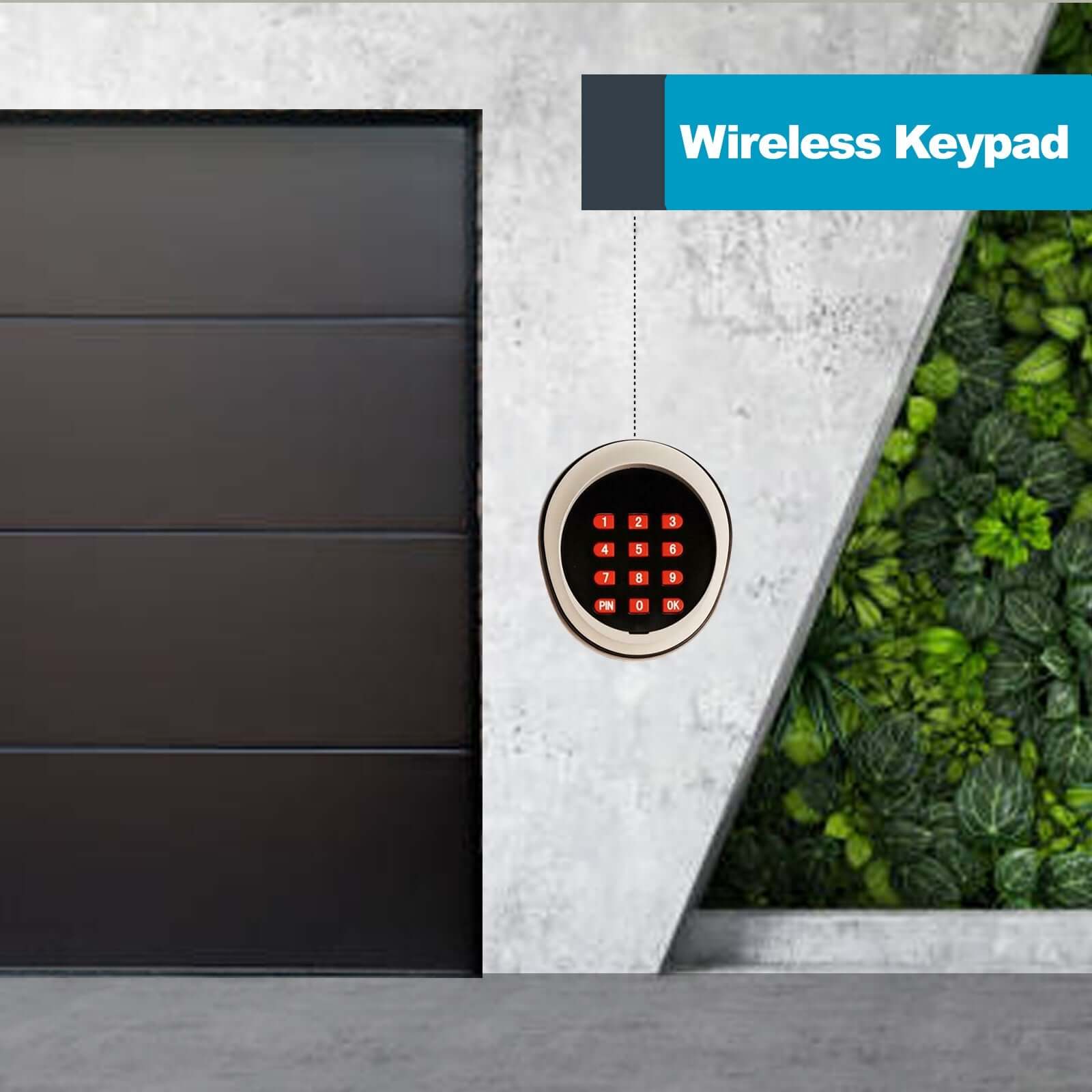

Modern garage door with digital wireless keypad and green wall.
Warning label about hazardous coin/button cell battery precautions and safety instructions.
Garageway.com.au

Ritrox RXD365S Farm Full Solar Gate Opener

Sale price$895.00 Regular price$985.00
Save $90.00

Manual/Instructions PDF Download



Ritrox RXD365S Farm Full Solar Powered Double Swing Gate Opener – 24V System with 6 Remotes, Keypad, Photocell & 30W Solar Panel | 5.5m / 500kg Per Arm Capacity

Automate your double swing gates with the Ritrox RXD365S Farm Full Solar Gate Opener, designed for large rural driveways, farm entrances, and remote properties. With support for gates up to 5.5 metres per leaf and 500kg per arm, this heavy-duty system delivers reliable, off-grid performance using clean solar energy.

This all-in-one kit includes a powerful 30W solar panel, 2 x 12V rechargeable batteries, and a solar charge controller, ensuring consistent gate operation without the need for mains power. Built to handle extreme environments, the IP55-rated motors, weatherproof control box, and durable aluminium swing arms make this system perfect for long-term outdoor use.

☀️ Key Features:

  • Solar-Powered System: 30W solar panel with charge controller and dual 12V batteries

  • Double Swing Gate Support: Operates gates up to 5.5m wide and 500kg per arm

  • Durable Aluminium Arms: High-strength build for long-term reliability

  • IP55-Rated Motors: Built for harsh outdoor environments

  • Waterproof & Dustproof Control Box: Rated IP44 for year-round protection

  • Safety Functions: Stop and reverse mode on obstruction detection

  • Access Control: Includes 6 remote controls (30m range), wireless keypad, push button, and photocell sensor

  • DIY-Friendly: Comes with complete mounting hardware and step-by-step manual

📊 Specifications:

  • Motor Voltage: DC 24V

  • Operating Voltage: 24VDC

  • Input Power: 230V/50Hz or 120V/60Hz

  • Motor Power: 50W per arm

  • Maximum Gate Width: 5.5m per leaf

  • Maximum Gate Weight: 500kg per arm

  • Current Draw: 3A

  • Actuator Speed: 16mm/s

  • Actuator Travel: 385mm

  • Motor Protection: IP55

  • Control Box Protection: IP44

  • Remote Control Battery: 12V 27A (alkaline zinc manganese)

  • Assembly Required: Yes

📦 Package Includes:

  • 2 x Gate Opener Arms

  • 1 x Waterproof Control Panel

  • 6 x Remote Controls

  • 3 x Car Sun Visor Clips

  • 1 x Wireless Keypad

  • 1 x Wireless Push Button

  • 1 x Photocell Sensor

  • 1 x 30W Solar Panel with Mounting Holder

  • 2 x 12V Rechargeable Batteries

  • 1 x Solar Charge Controller

  • 1 x Weatherproof Battery Box

  • 7.5m Connection Cable

  • 2 x Gate Brackets

  • 2 x Post Brackets

  • 2 x Allen Keys

  • 1 x Installation Manual & Hardware Kit

Ideal for off-grid installations and remote rural access points, the Ritrox RXD365S Full Solar Gate Opener offers unmatched convenience, reliable performance, and energy-efficient operation in all weather conditions.
