RITROX RXD365S Farm Solar Gate Opener Motor

Sale price$829.00

Manual/Instructions PDF Download

RITROX Farm Full Solar Powered Double Swing Gate Opener 5x Remote Keypad


Features:

Two swing arms for use with Double gates
Gates up to 4.5m in width and up to 500kg in weight per arm
30w full solar kit with 2x12v batteries and solar charge controller
Waterproof and dustproof control box
Low power consumption
24V low voltage system
High-quality aluminium swing arm
Stop and reverse mode for obstructions
5x Remote Controls w/ 30m operation range
Installation hardware



Specifications:

Motor Voltage: DC 24V
Input: 230V/50Hz or 120V/60Hz
Power: 50W/arm
Gate weight: Up to 500kg
Gate width: Max 5.5m
Current: 3A
Actuator speed: 16mm/s
Actuator travel: 385mm
Protection class: IP44
Power supply: Electric
Assembly Required: Yes
Remote control battery: Alkaline zinc manganese battery 12V 27A



Solar Gate Opener Package Include:

  • 2 x gate opener Arms
  • 1 x Control panel
  • 25 feet Cable
  • 5 x Remote Controls
  • 3 x car sun visor clips
  • 1 x Wireless Keypad

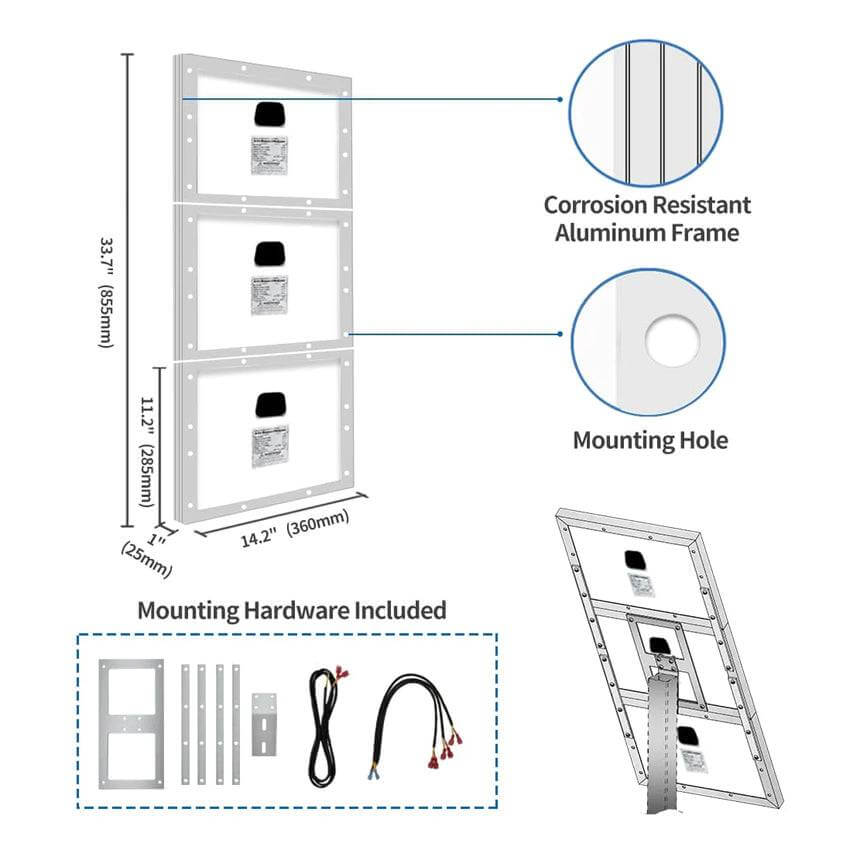

  • 3 x 10w solar panel (Mounting Hardware Included)
  • 1 x Solar Kit Connection Cable
  • 2 x 12V batteries
  • 1 x solar charge controller
  • 1 x battery Box
  • 2 x allen keys
  • 2 x Gate brackets
  • 2 x post brackets
  • Operating Voltage: 24VDC
  • Operate the gate Max length 4.5m per leaf
  • IP55 rated motors-built to withstand the harshest environments
