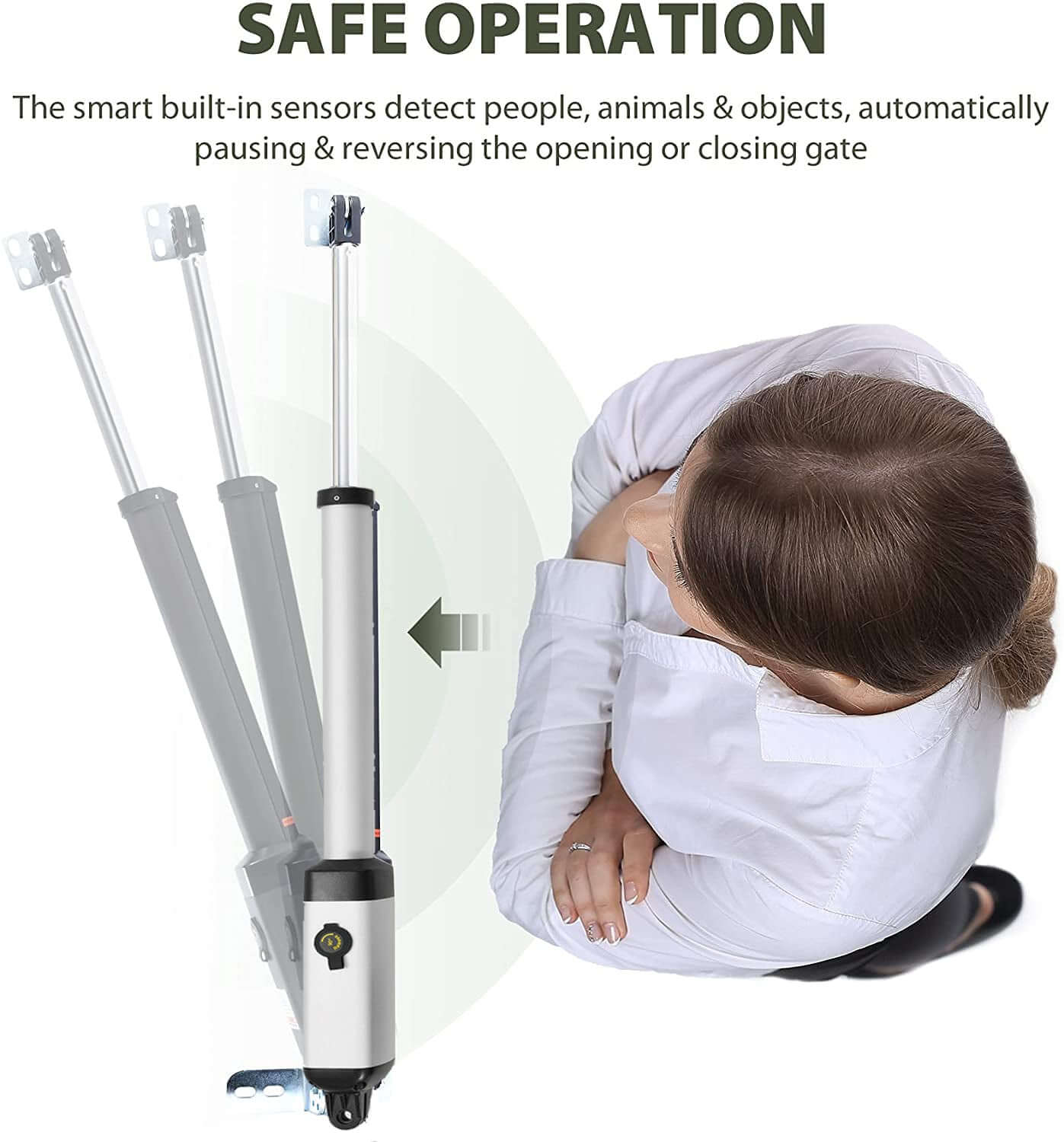

RITROX RXD365S gate opener with sensors pausing for person, demonstrating safe solar-powered garageway operation.

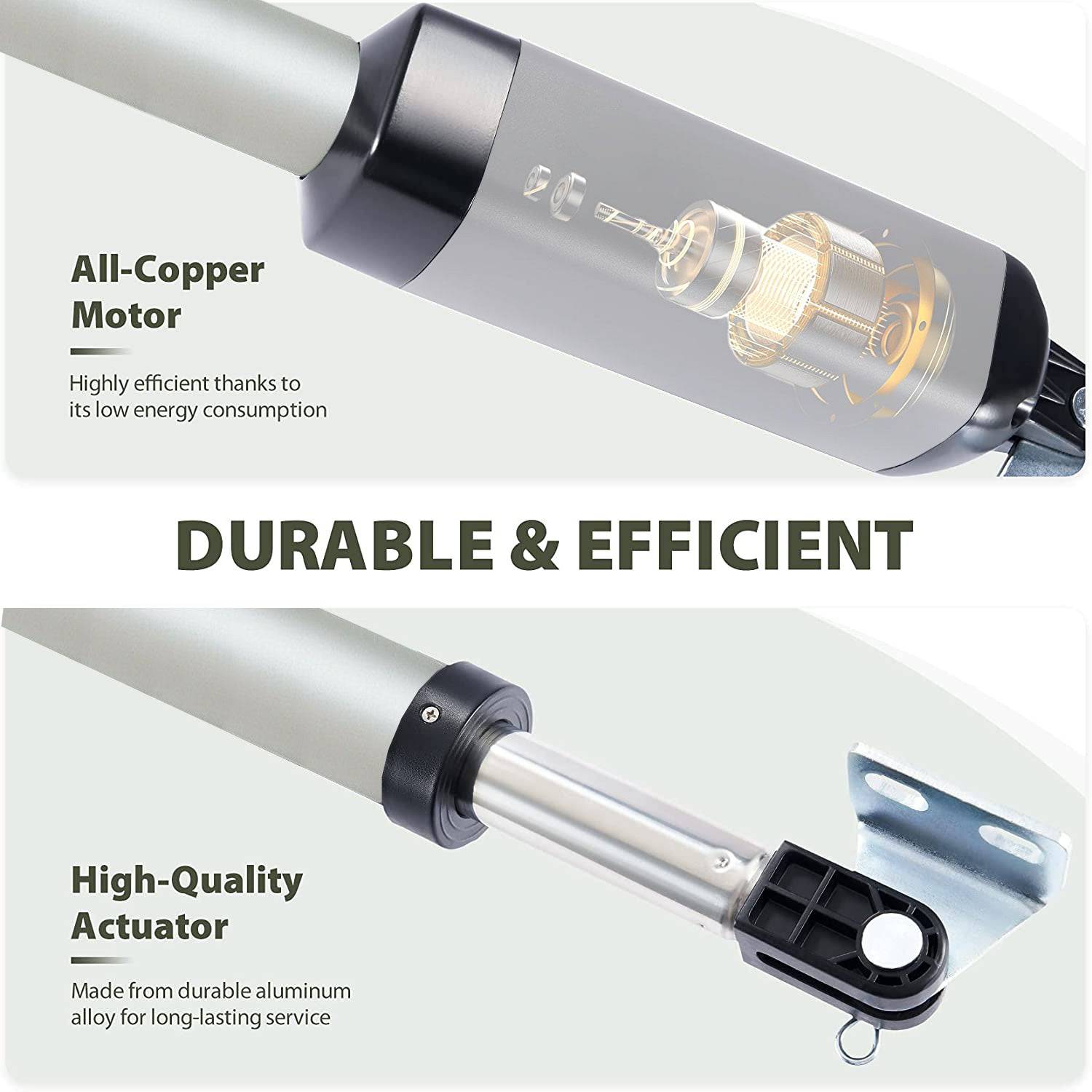

Close-up of RITROX Garageway full solar gate opener featuring all-copper motor and high-quality aluminum actuator for efficient operation.
Close-up of durable solar gate opener with all-copper motor and high-quality aluminum actuator, highlighting efficiency and longevity for Garageway.

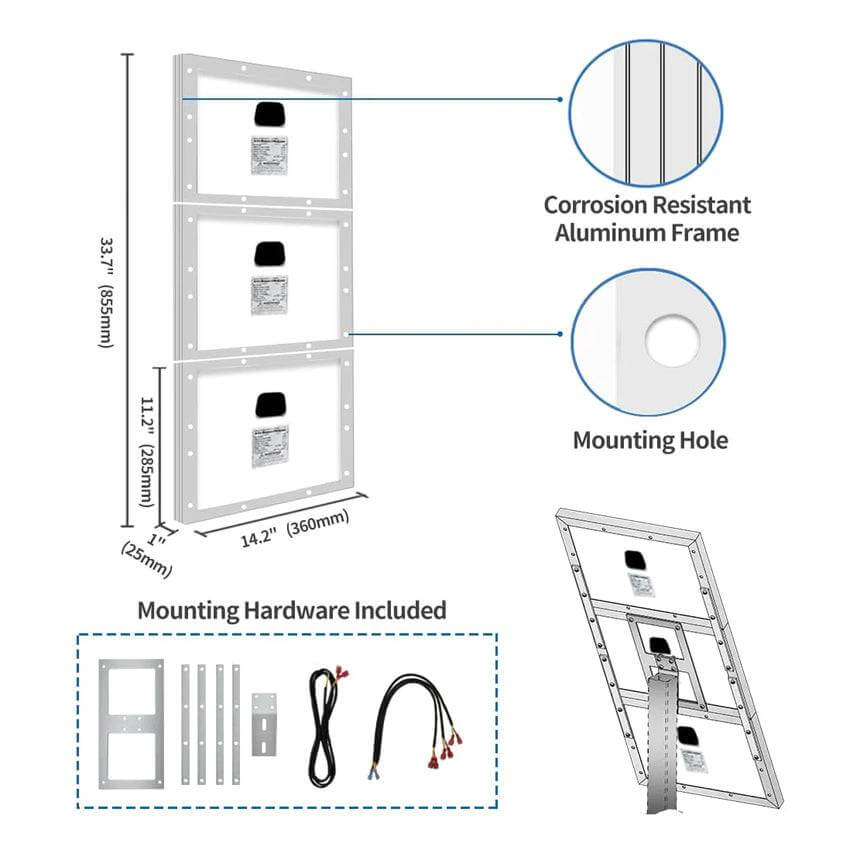

Diagram of corrosion-resistant aluminum solar panel frame with mounting hardware for RITROX RXD365S solar gate opener.
Diagram of corrosion-resistant aluminum frame with dimensions and mounting hardware for garageway gate opener.

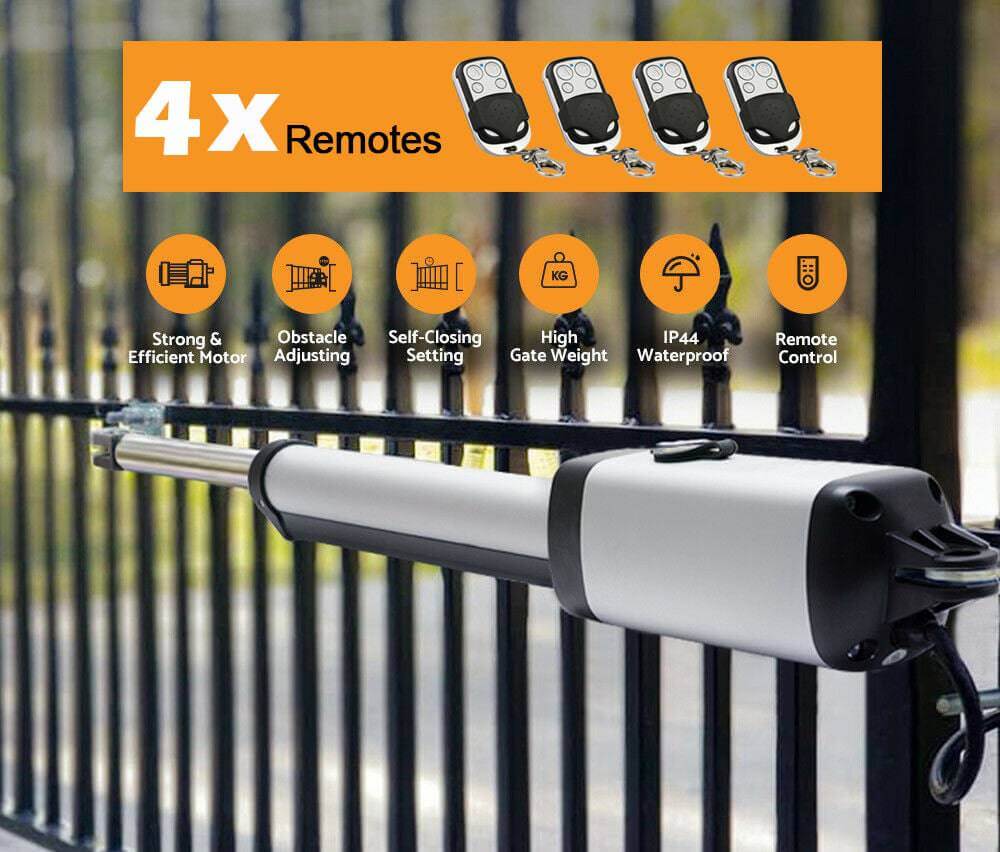

RITROX RXD365S solar gate opener with remote, showing features: strong motor, obstacle adjusting, self-closing, IP44 waterproof.

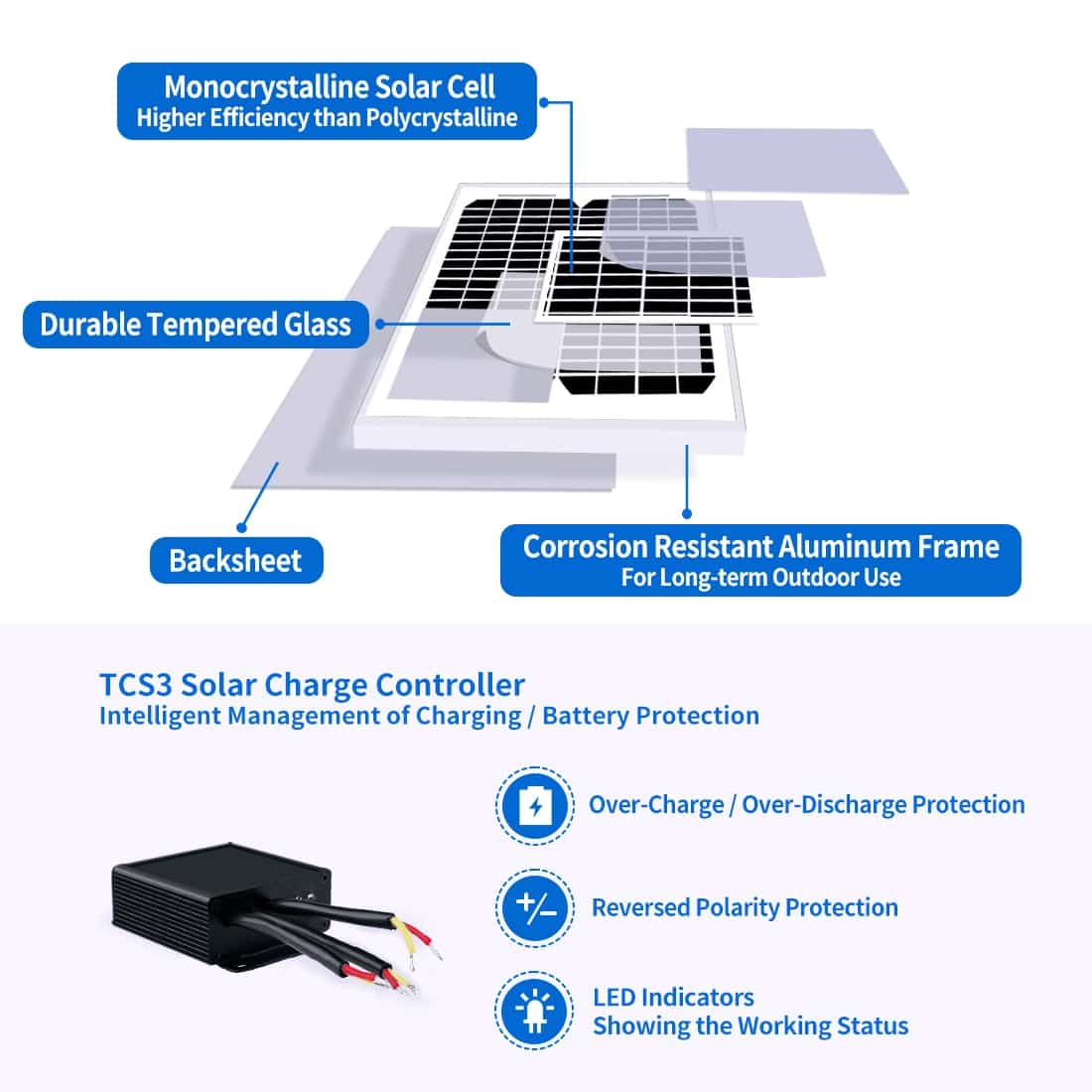

Diagram of the RITROX Full Solar Double Gate Opener's components, highlighting monocrystalline solar cells and solar charge controller features.

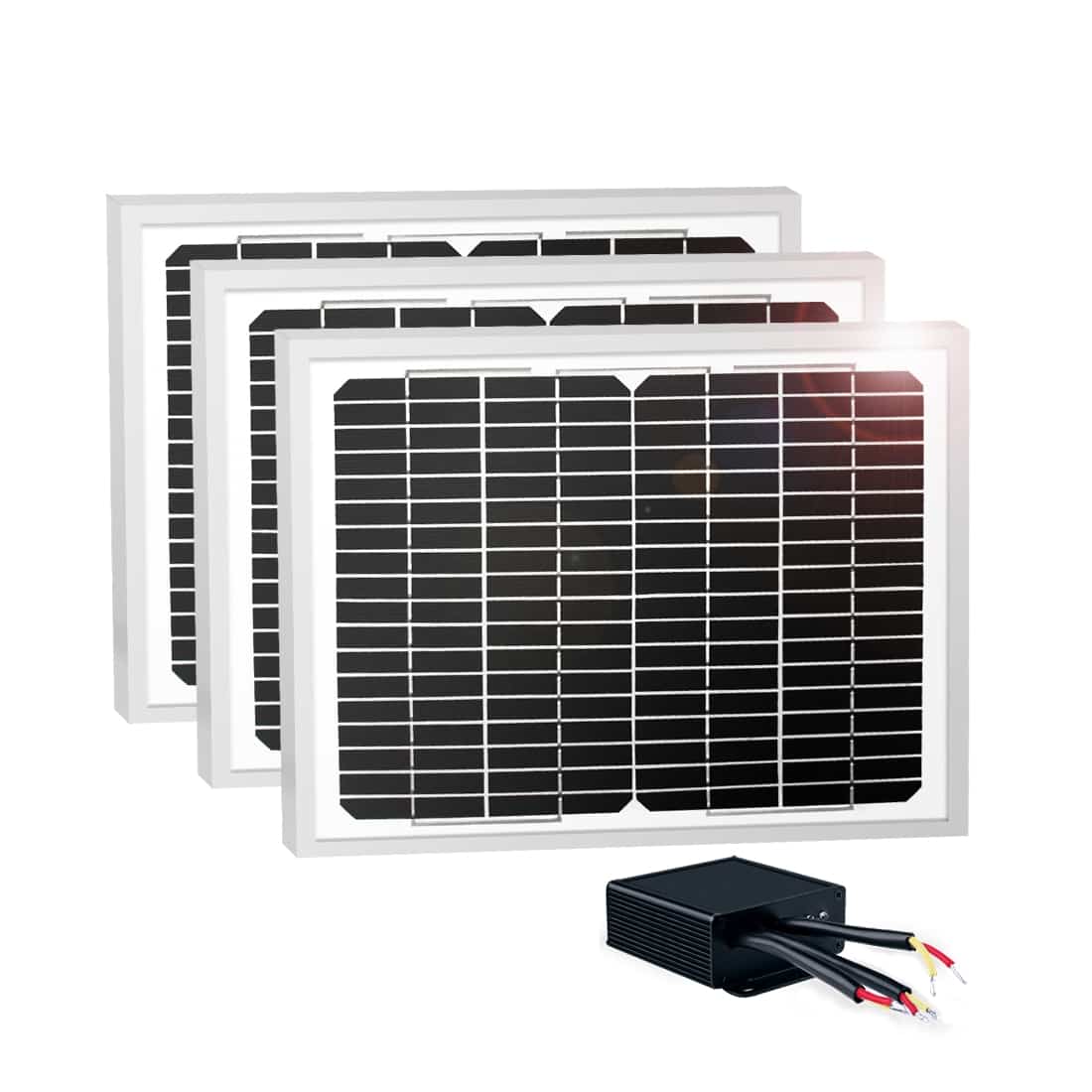

RITROX RXD365S solar panels and control box for Garageway gate opener system.
Three solar panels and control box for RITROX RXD365S Garageway gate opener, highlighting renewable energy components.

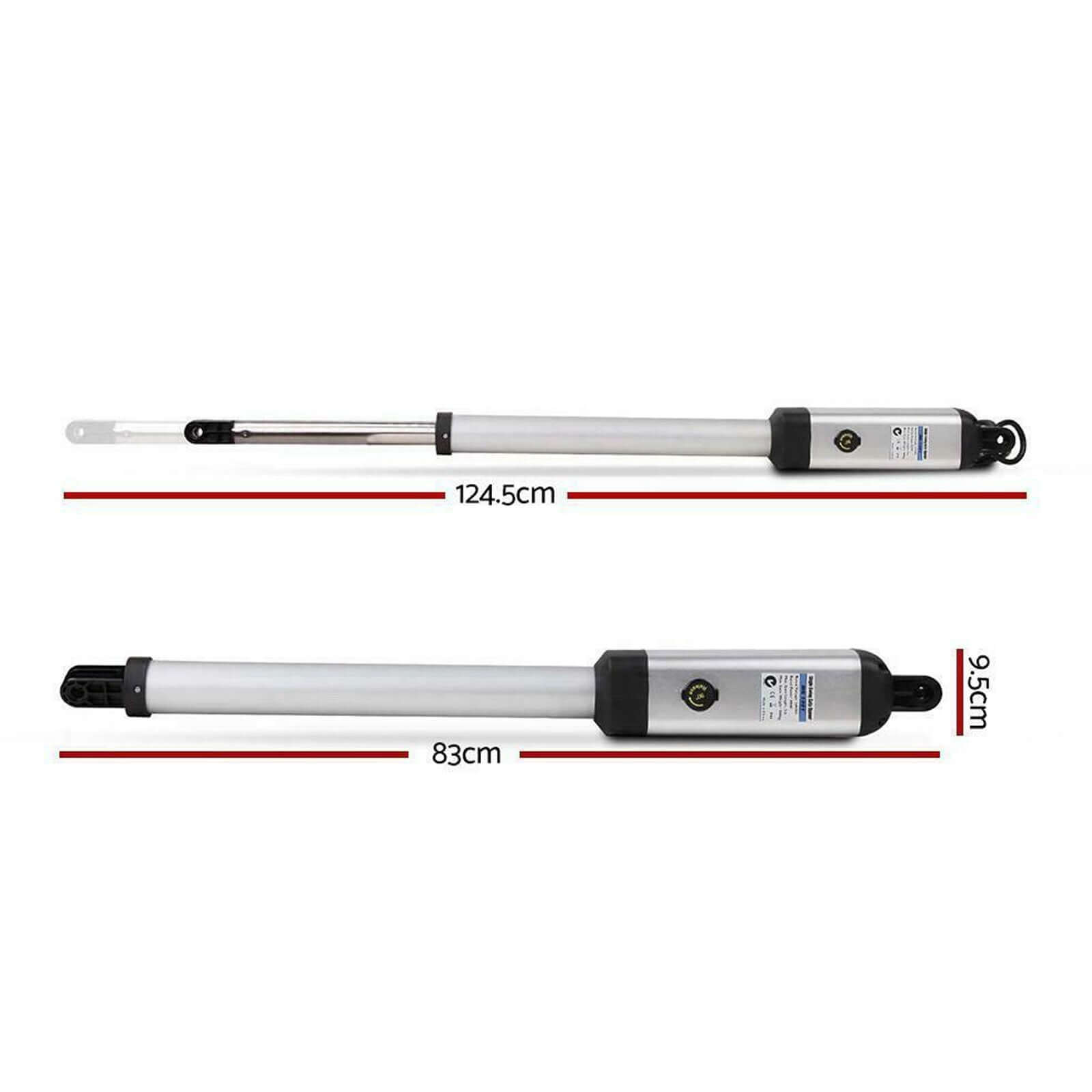

RITROX RXD365S swing arms for solar gate opener showing dimensions, perfect for Garageway gates up to 4.5m wide and 500kg per arm.
Car sun visor clips holding sunglasses and keys, with image of three extra visor clips, ideal for organization and accessibility.
Warning sign about coin/button cell battery hazard and safety instructions to prevent injury.
Garageway.com.au

RITROX RXD365S Full Solar Double Gate Opener

Sale price$825.00

🔩 RITROX Farm Full Solar Powered Double Swing Gate Opener Kit

30W Solar, 24V System, 4 Remotes Included

Upgrade your rural or residential property with the RITROX Full Solar Powered Double Swing Gate Opener Kit, engineered for durability, efficiency, and ease of installation. This robust dual-arm gate automation system is ideal for farm entrances and wide driveways, offering smooth operation for gates up to 4.5 metres per leaf and 500kg per arm.

🌟 Key Features

  • ☀️ Full Solar Operation – Eco-friendly 30W solar kit with 3 x 10W panels, 2 x 12V deep cycle batteries & charge controller

  • 💪 Heavy-Duty Performance – Supports gates up to 4.5m wide and 500kg per arm

  • 🔇 Reliable & Quiet – 24V DC motors with smooth actuator operation (16mm/s)

  • 🛑 Smart Safety – Stop-and-reverse function if obstacles are detected

  • 🌧️ All-Weather Ready – Waterproof and dustproof IP44 control box; motors rated IP55

  • 📡 Convenient Control – Includes 4 remotes (30m range) with sun visor clips

  • 🛠️ DIY Friendly – Comes with detailed instructions and complete installation hardware

⚙️ Technical Specifications

  • Motor Voltage: DC 24V

  • Input Power: 230V/50Hz or 120V/60Hz

  • Motor Power: 50W per arm

  • Max Gate Length: 4.5m per leaf

  • Max Gate Weight: 500kg per arm

  • Actuator Speed: 16mm/s

  • Actuator Travel: 385mm

  • Current Draw: 3A

  • Protection Class: IP44 (Control Box), IP55 (Motors)

  • Assembly Required: Yes

  • Remote Battery Type: 12V 27A Alkaline Zinc Manganese

📦 What’s in the Box

  • 2 × Gate Opener Arms

  • 1 × Control Panel with Waterproof Casing

  • 1 × 25ft Power Cable

  • 4 × Remote Controls

  • 3 × Sun Visor Clips

  • 3 × 10W Solar Panels (Mounting Kit Included)

  • 1 × Solar Kit Connection Cable

  • 2 × 12V Rechargeable Batteries

  • 1 × Solar Charge Controller

  • 1 × Battery Box

  • 2 × Allen Keys

  • 2 × Gate Brackets

  • 2 × Post Brackets

📥 Download the Installation Manual (PDF)


📧 Need assistance? Contact our support team at info@garageway.com.au.
