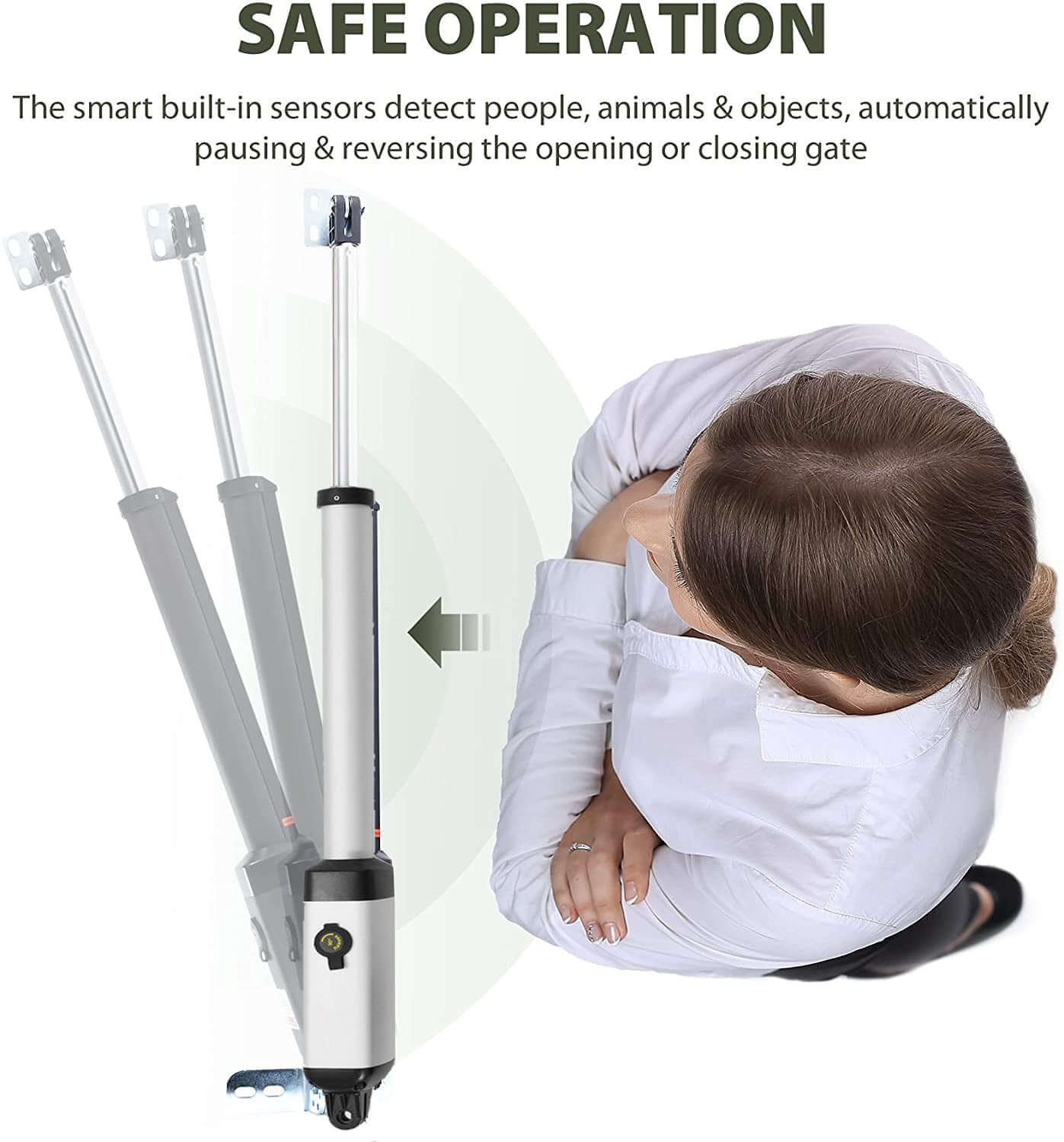

Ritrox Solar RX365S swing gate motor with safety sensors pausing for person, ideal for Garageway use with solar power efficiency.

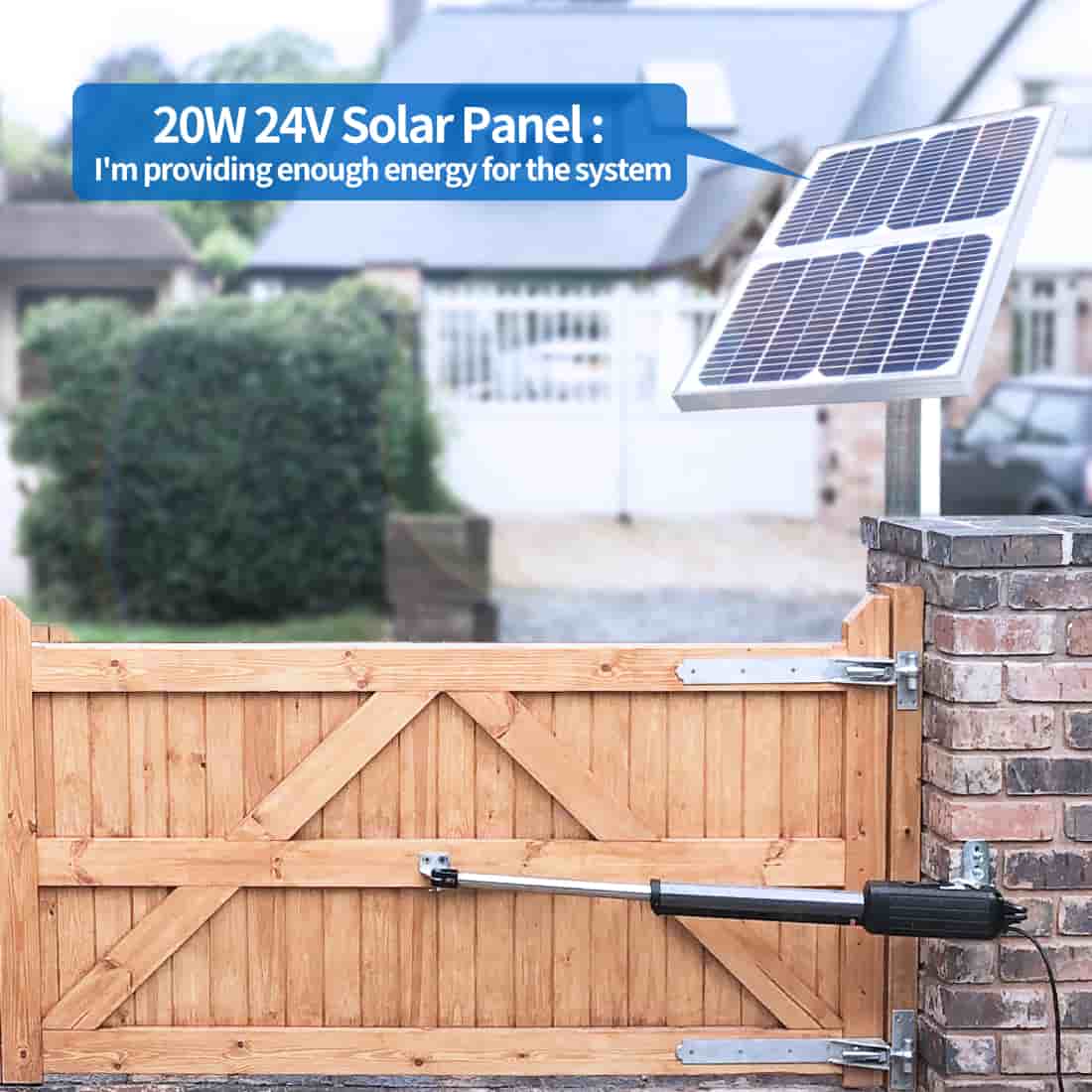

Ritrox Solar RX365S Single Swing Gate Motor with 20W solar panel installed on a wooden gate in a residential setting.

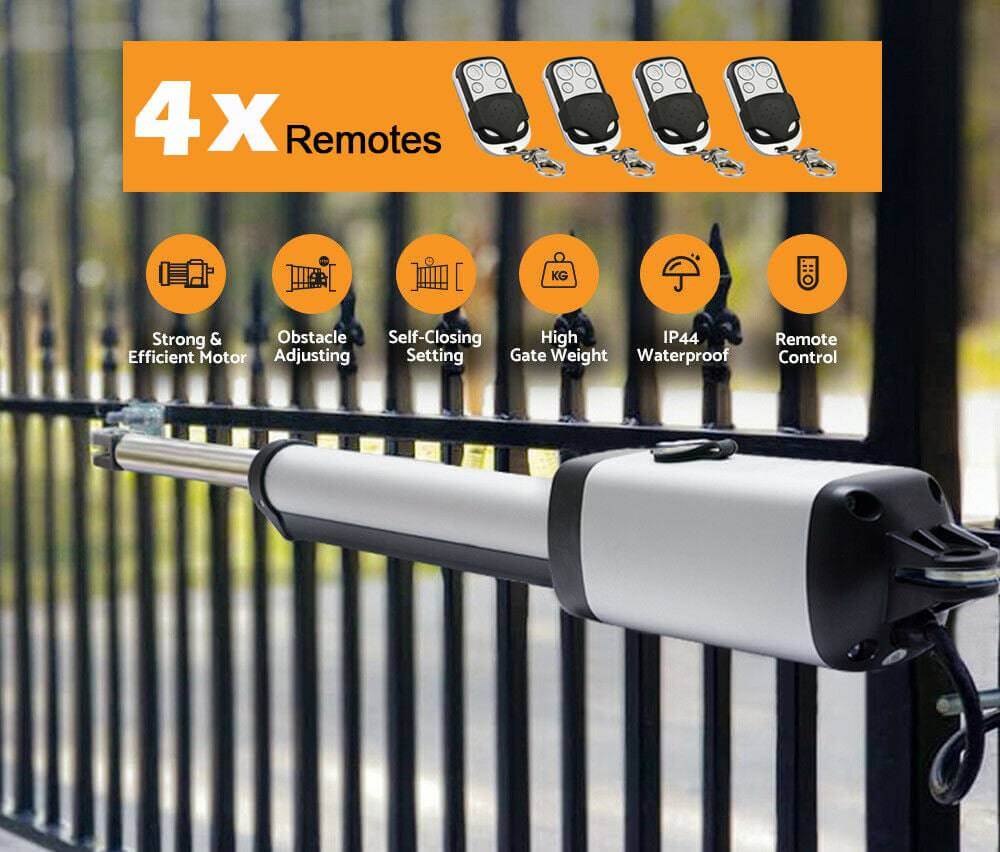

Ritrox Solar RX365S Single Swing Gate Motor with features including strong motor, obstacle adjustment, and waterproof design. Includes 4 remotes.

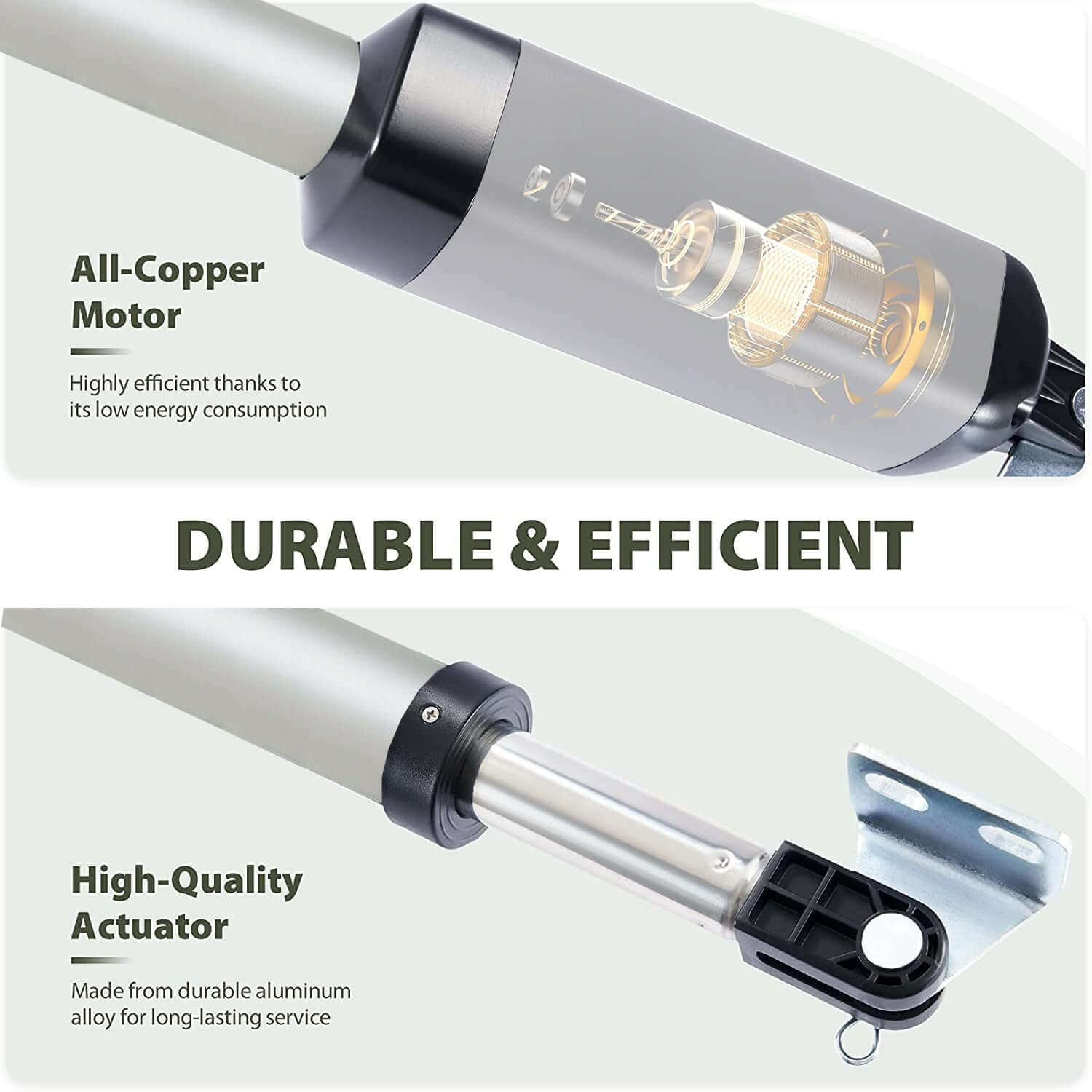

Ritrox Solar RX365S gate motor featuring all-copper motor for efficiency and a durable aluminum actuator. Ideal for Garageway systems.

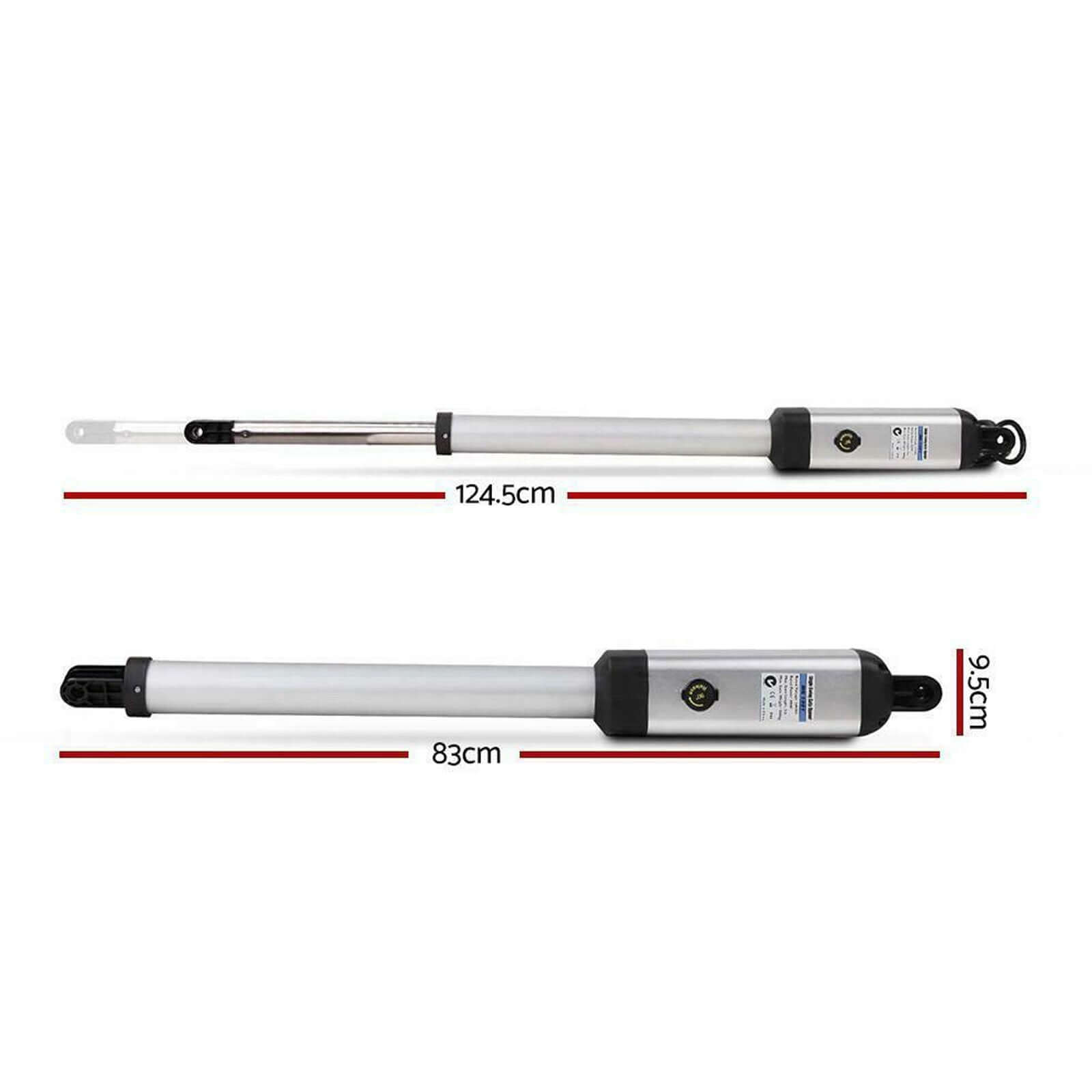

Dimensions of Ritrox Solar RX365S Single Swing Gate Motor arms, Garageway compatible, 124.5cm and 83cm lengths with 9.5cm diameter.

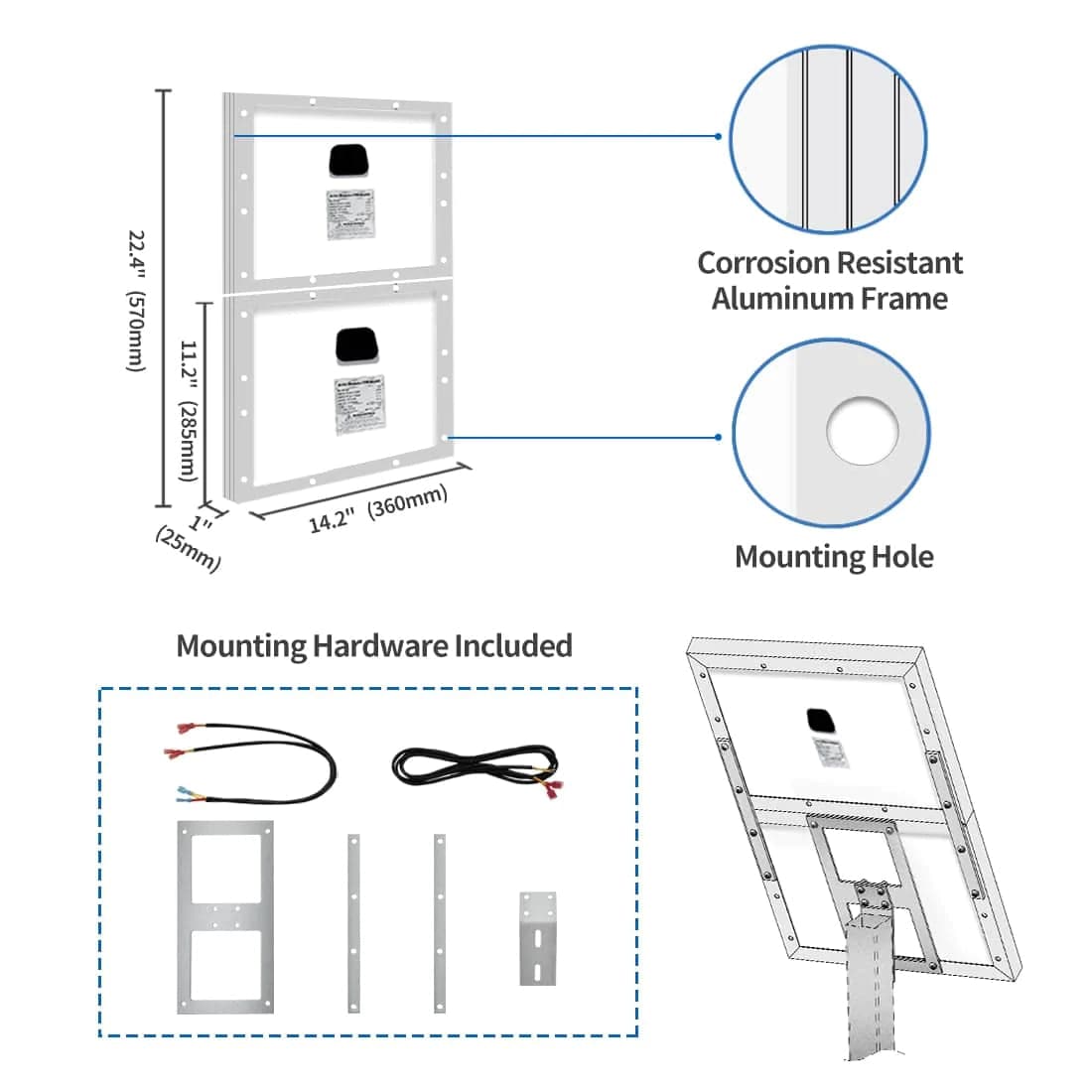

Diagram of a solar panel with corrosion-resistant aluminum frame and mounting hardware included.

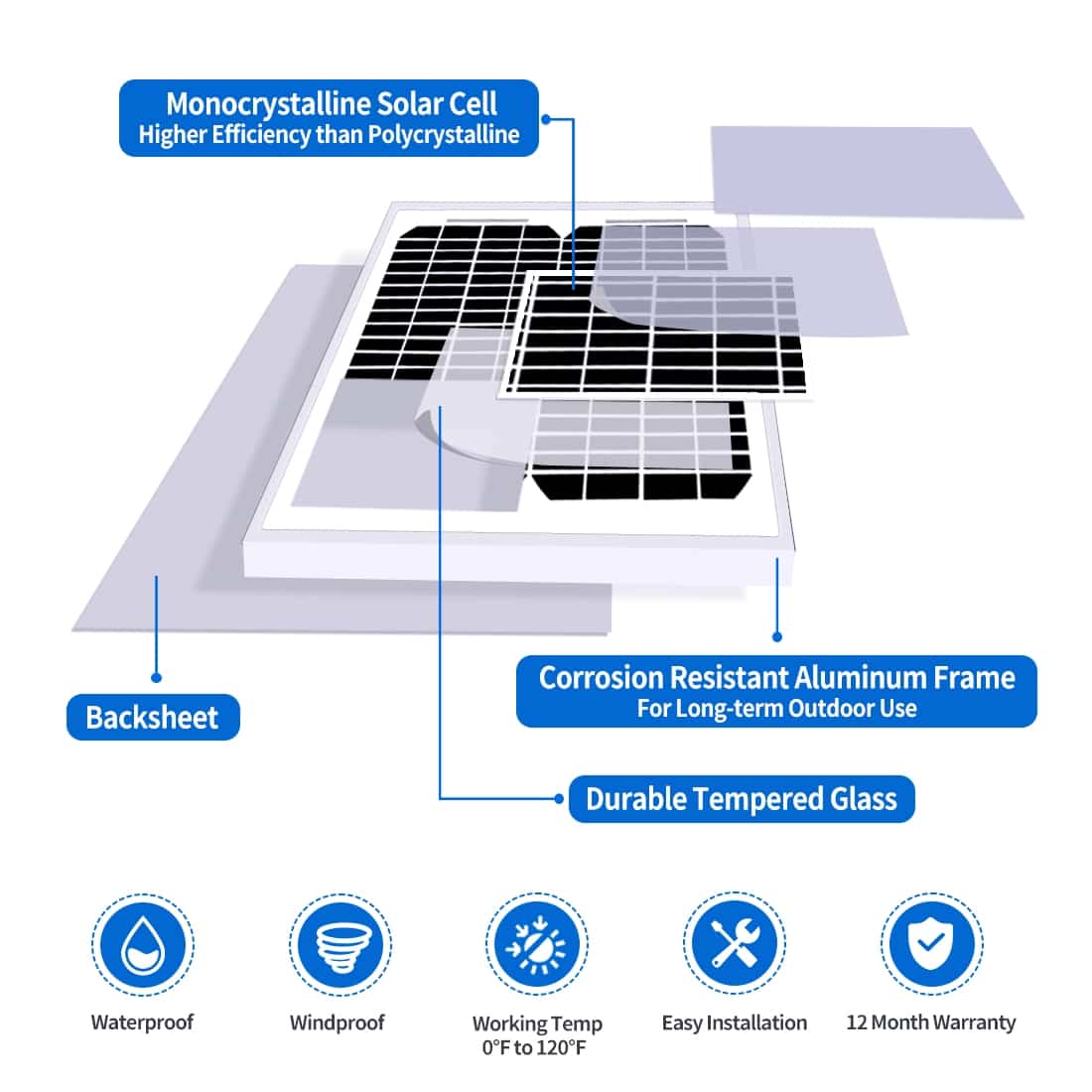

Diagram showing features of monocrystalline solar cell with corrosion-resistant aluminum frame and durable tempered glass.
Bluetooth Receiver for Garage, Gate Openers with APP Android, ios - Garageway.com.au
Bluetooth Receiver for Garage, Gate Openers with APP Android, ios - Garageway.com.au

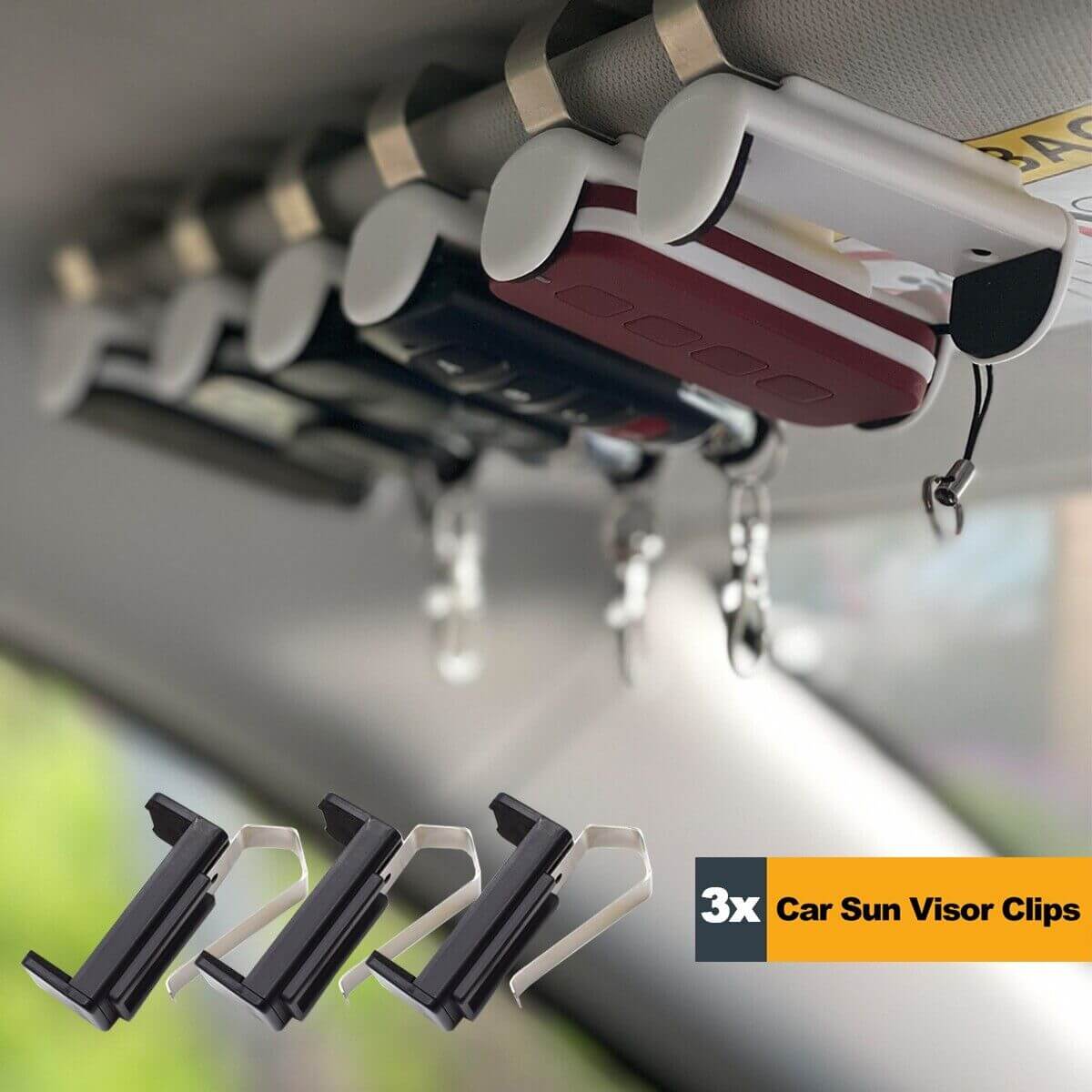

Car sun visor clips holding various items, 3x clips in black and silver, securely attached to a vehicle's sun visor for organization.
Warning sign for product containing coin/button cell battery, advising to keep away from children due to severe injury risk.
Garageway.com.au

RITROX RX365S Solar Single Swing Gate Opener with Bluetooth Receiver – iPhone & Android App Control

Sale price$699.00

Manual/Instructions PDF Download



Ritrox RX365S Full Solar Single Swing Gate Motor – 24V System with 4 Remotes & Dual 10W Solar Panels | 5m / 500kg Capacity

Power your gate sustainably with the Ritrox RX365S Full Solar Swing Gate Motor, designed for single gates up to 5 metres wide and 500kg in weight. Built for rural and remote installations, this robust automation system runs entirely on solar power—no mains electricity required.

Equipped with 2 x 10W solar panels, 2 x 12V batteries, and a solar charge controller, this gate opener offers reliable, energy-efficient performance. With IP55-rated motors, a dustproof and waterproof control box, and a smooth aluminium actuator, the RX365S delivers both strength and durability in any weather.

☀️ Key Features:

  • Solar Powered: 20W solar system with solar charge controller and dual 12V batteries

  • Single Gate Ready: For gates up to 5m wide and 500kg per arm

  • IP55 Rated Motor: Built for harsh outdoor environments

  • Weatherproof Control Box: Dustproof and water-resistant (IP44)

  • Safe & Efficient: 24V low voltage system with obstacle detection (stop & reverse)

  • Wireless Access: Includes 4 remote controls (30m range) and 3 car visor clips

  • DIY Friendly: Easy setup with full installation kit included

📊 Specifications:

  • Motor Voltage: DC 24V

  • Operating Voltage: 24VDC

  • Input Voltage: 230V/50Hz or 120V/60Hz

  • Motor Power: 50W

  • Max Gate Weight: 500kg

  • Max Gate Width: 5m

  • Current Draw: 3A

  • Actuator Speed: 16mm/s

  • Actuator Travel: 385mm

  • Motor Protection: IP55

  • Control Box Rating: IP44

  • Remote Battery: 12V 27A (alkaline zinc manganese)

  • Assembly Required: Yes

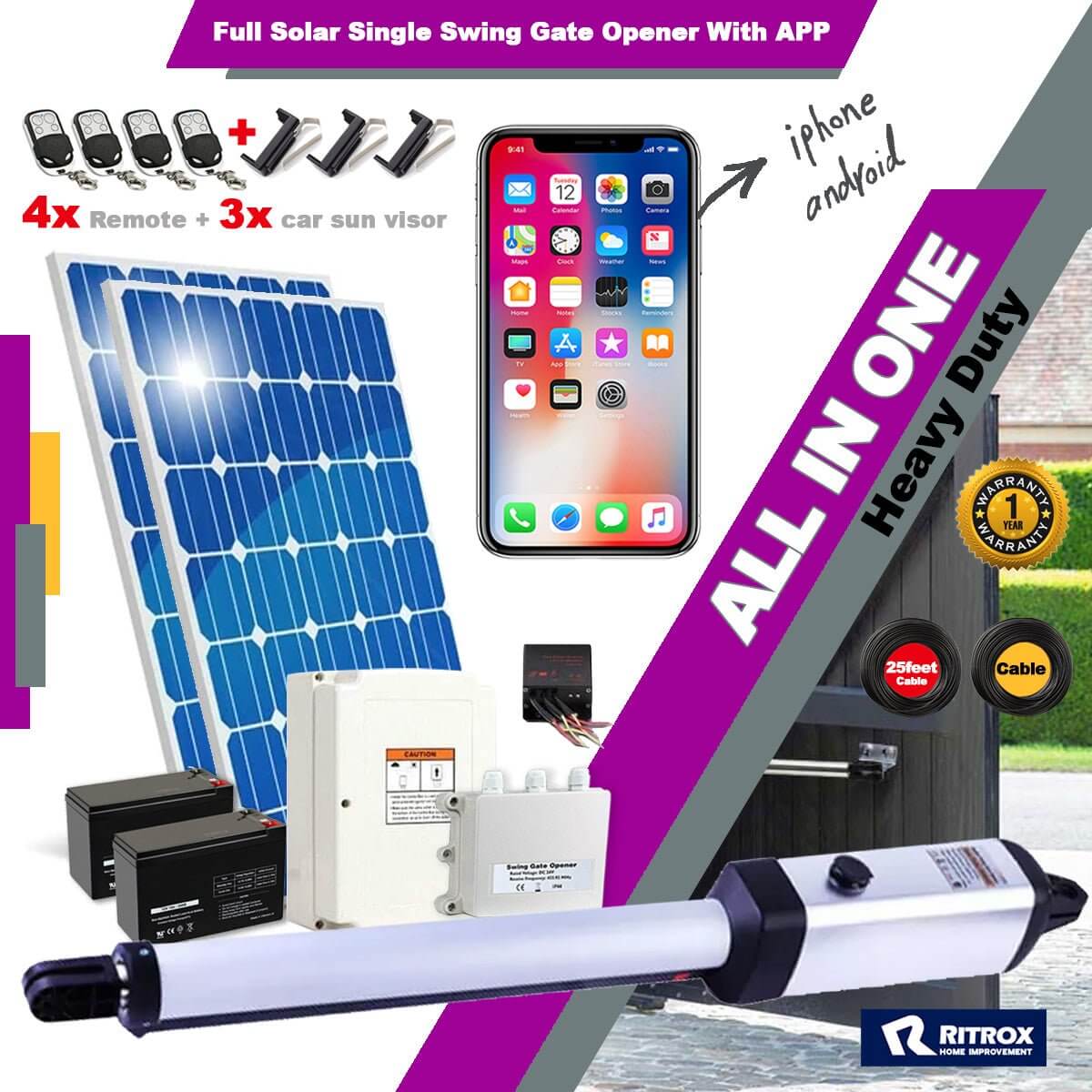

📦 Package Includes:

  • 1 x Gate Opener Arm

  • 1 x Waterproof Control Box

  • 4 x Remote Controls

  • 3 x Car Sun Visor Clips

  • 2 x 10W Solar Panels (with Mounting Hardware)

  • 2 x 12V Rechargeable Batteries

  • 1 x Solar Charge Controller

  • 1 x Battery Box

  • 1 x Gate Bracket

  • 1 x Post Bracket

  • 1 x Allen Key

  • 6m Connection Cable

  • 1 x User Manual & Installation Kit

  • 1 x Bluetooth Receiver

Whether you're securing a farm entrance or automating a remote driveway, the Ritrox RX365S Solar Gate Opener offers powerful, eco-friendly performance built to last in Australia’s toughest conditions.

🔗 Recommended Accessories:

🔢 LM172 Wireless Keypad – Secure Code Entry

🖲 LM173 Wireless Push Button – Quick Gate Access

🎮 LM124 Extra Remote – Compatible with RX-Series

🌐 Photocell Beam Sensor – Obstacle Detection Safety

📞 Need Support? Contact Garageway Support for help with installation, compatibility, or product advice.
