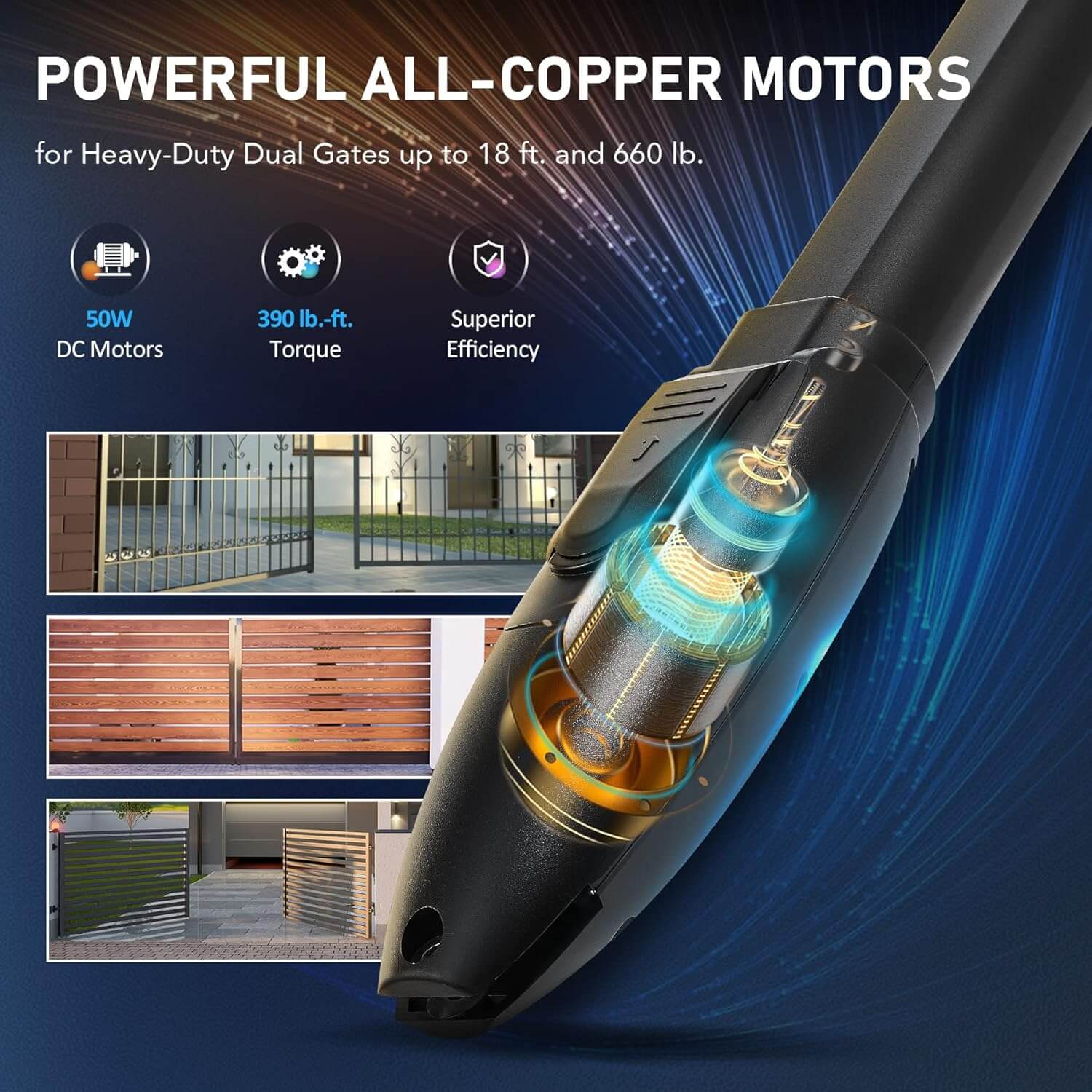

Powerful all-copper motor for heavy-duty dual gates with 50W DC motors, 390 lb-ft torque, and superior efficiency.

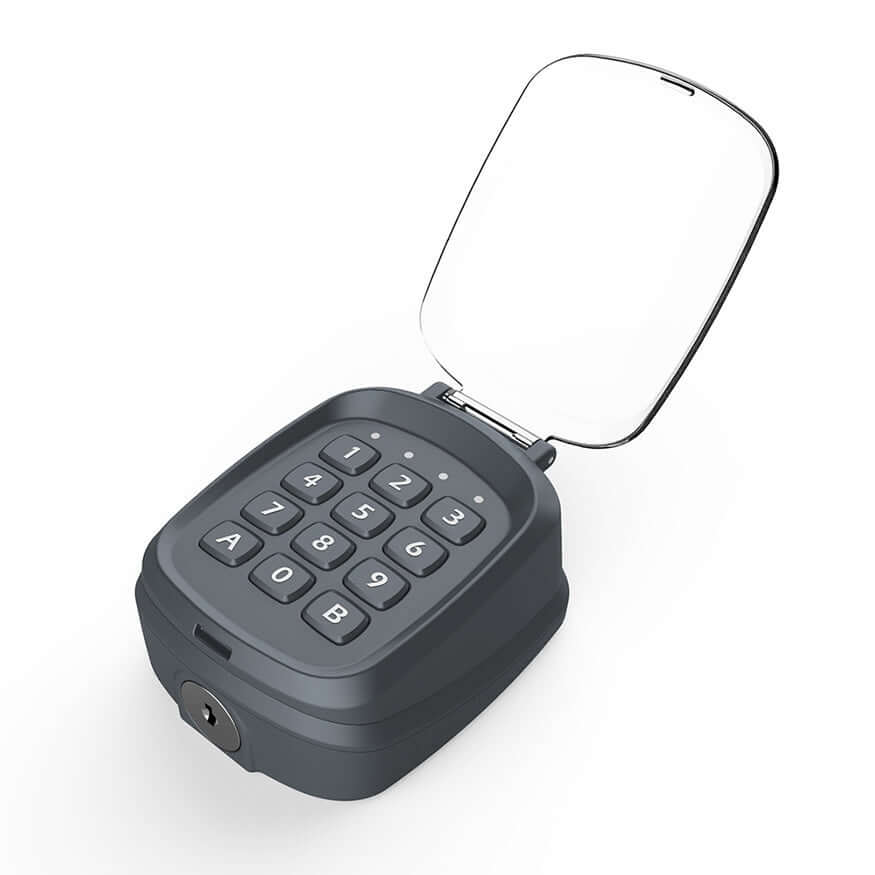

Secure outdoor key lock box with keypad and open cover, ideal for storing access codes and keys safely.

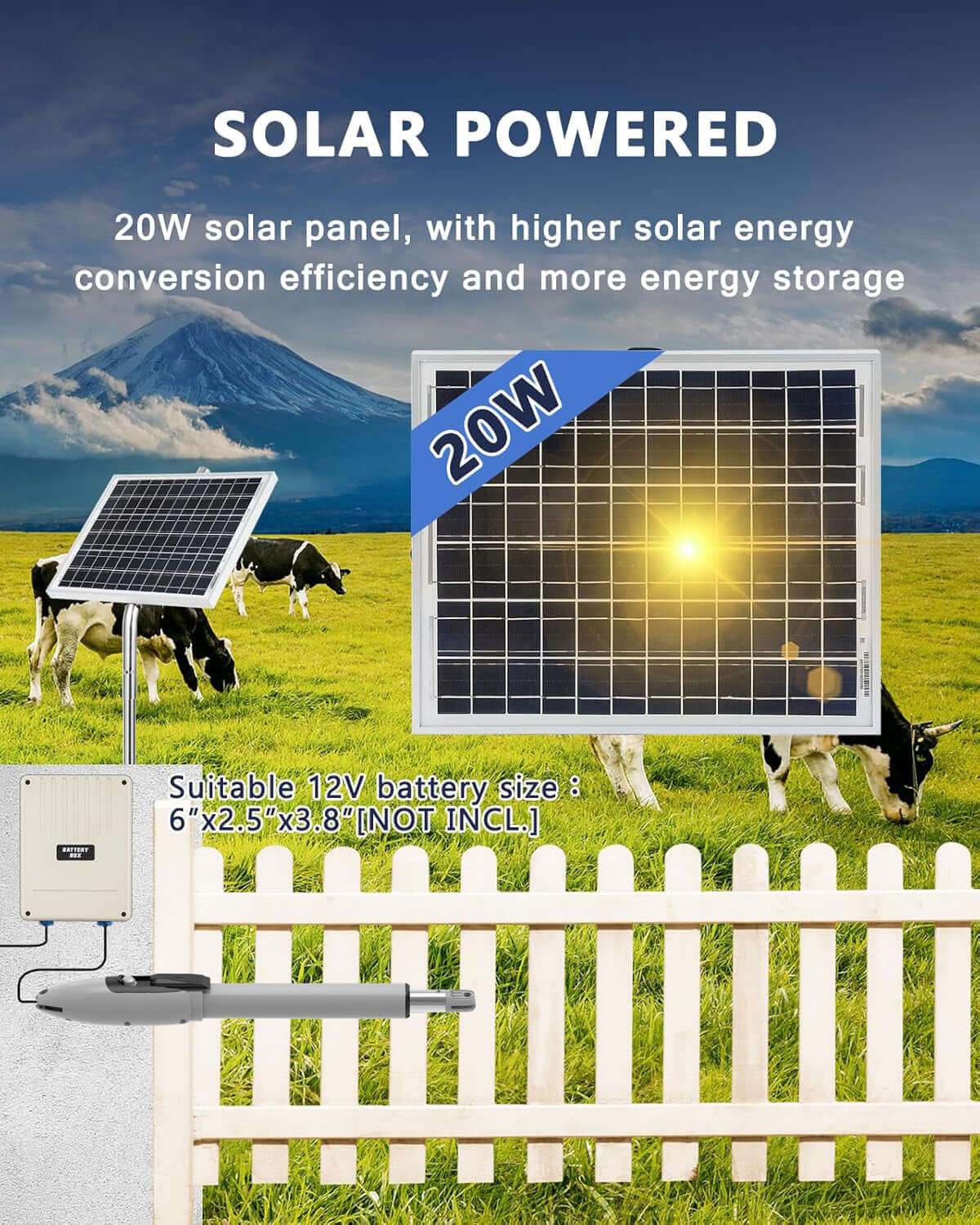

Solar panel powering gate opener in farm setting with cows and mountains in the background.

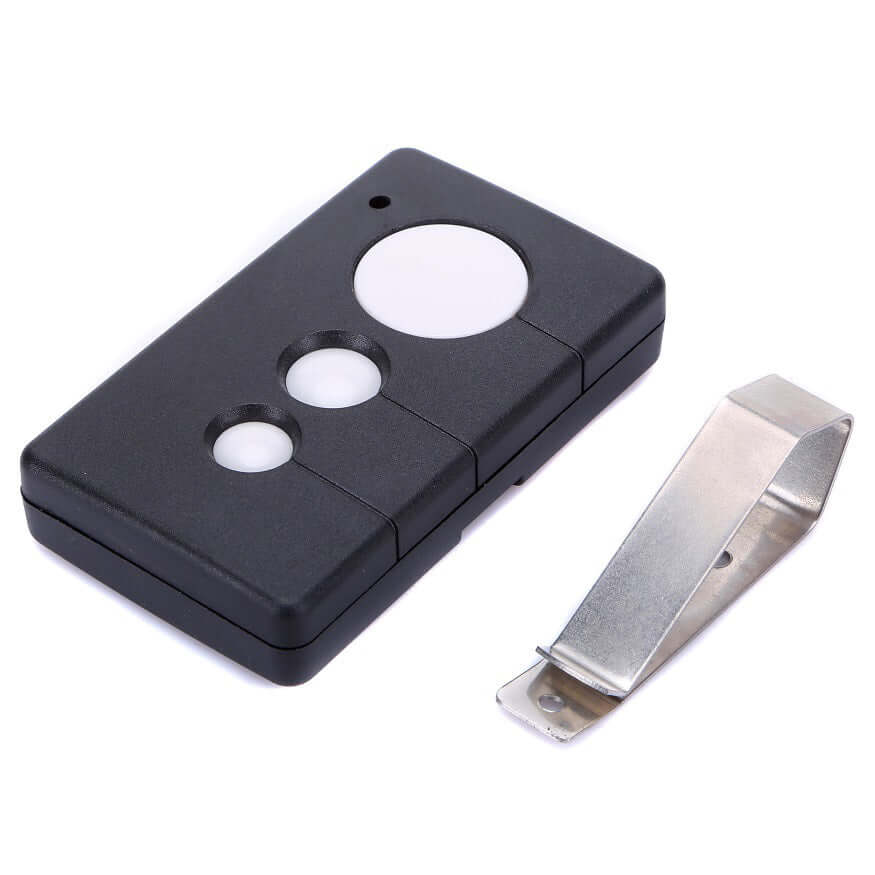

Black remote control for SIGMA SW-300 gate opener with metal clip attachment, ideal for driveway access.

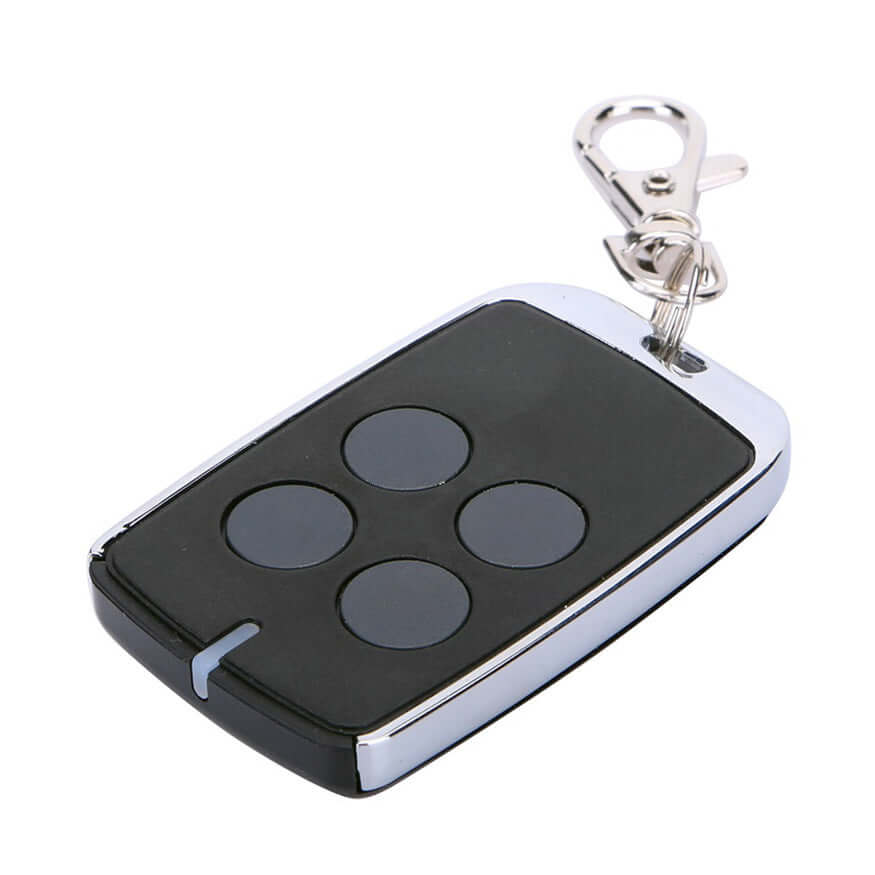

Black four-button remote for driveway gate opener with keychain attachment.

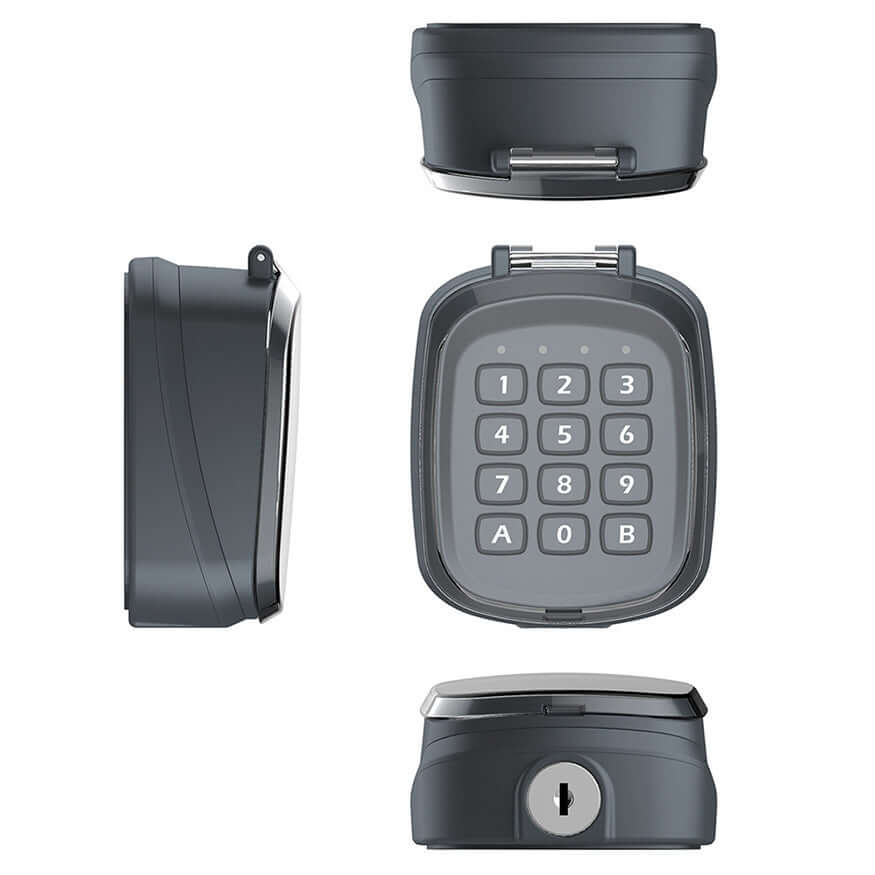

Digital keypad for gate opener, front and side views, with security lock feature.

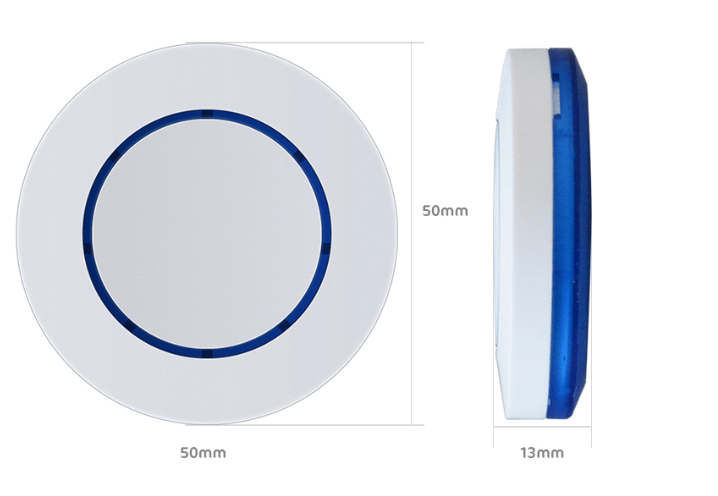

Round blue and white device with measurements, 50mm diameter and 13mm thickness, shown from front and side view.

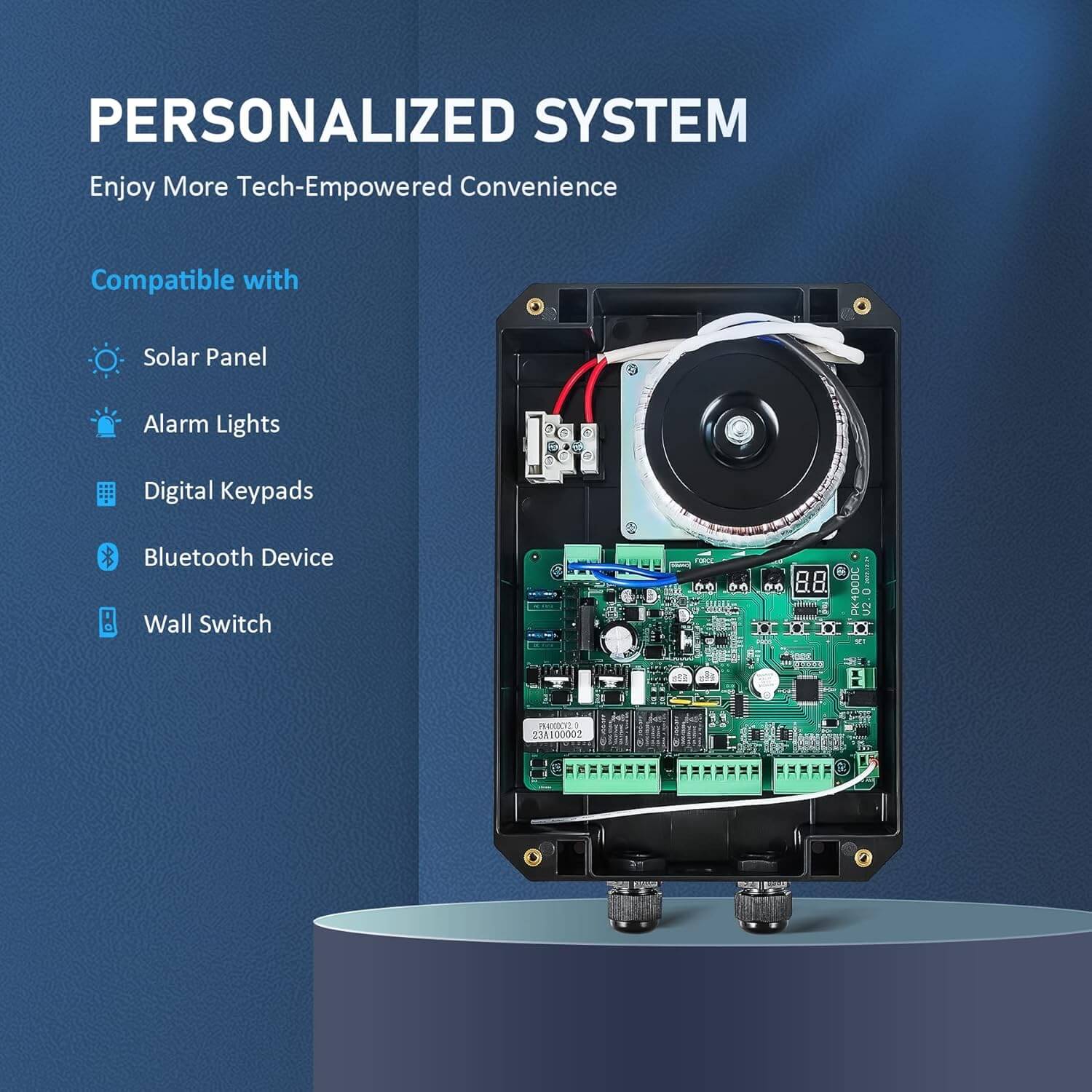

Gate opener motor mechanism compatible with solar panel and Bluetooth, showcasing tech options for personalized convenience.

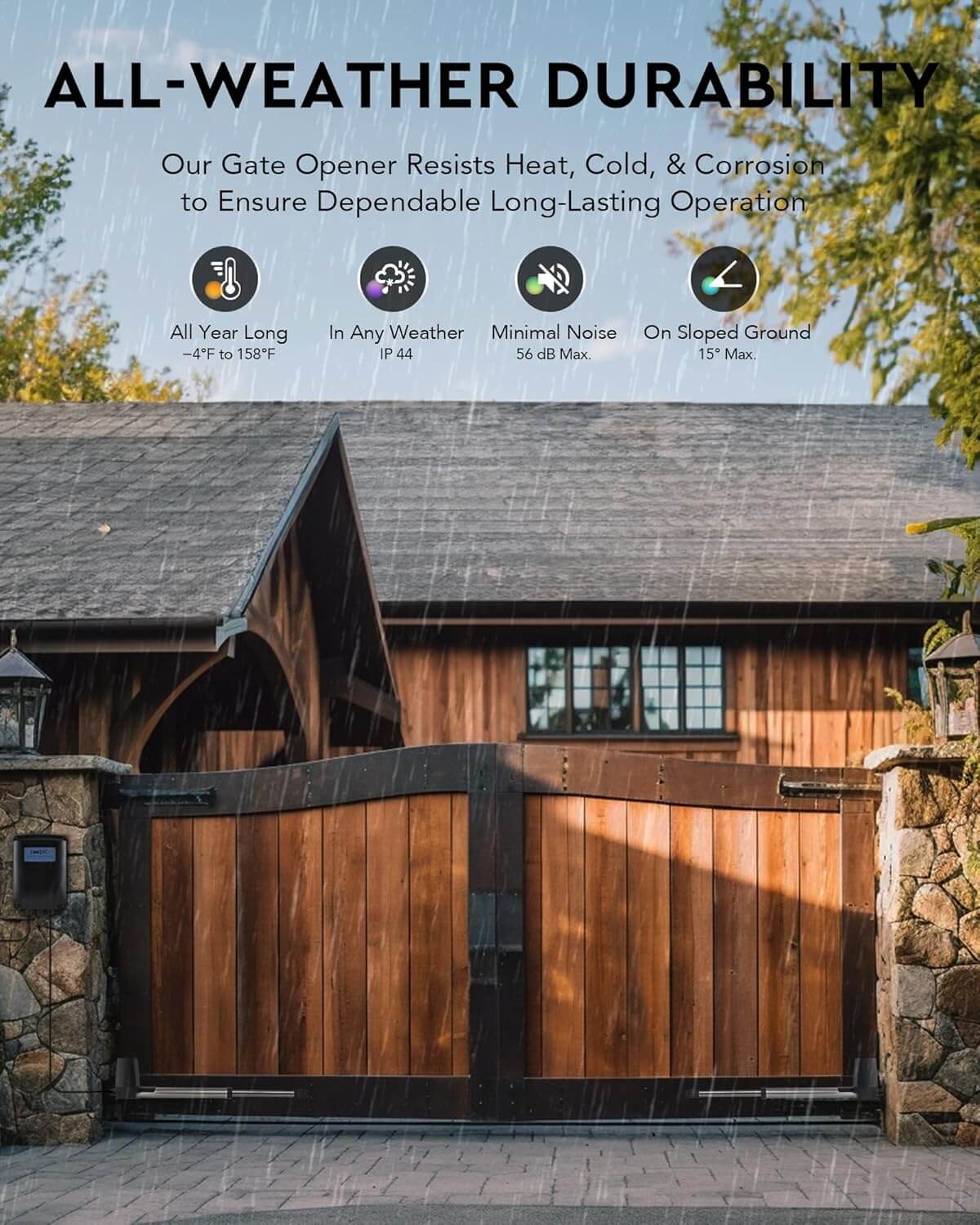

Wooden driveway gate with stone pillars showcasing all-weather durability features for gate openers, suitable for adverse conditions.

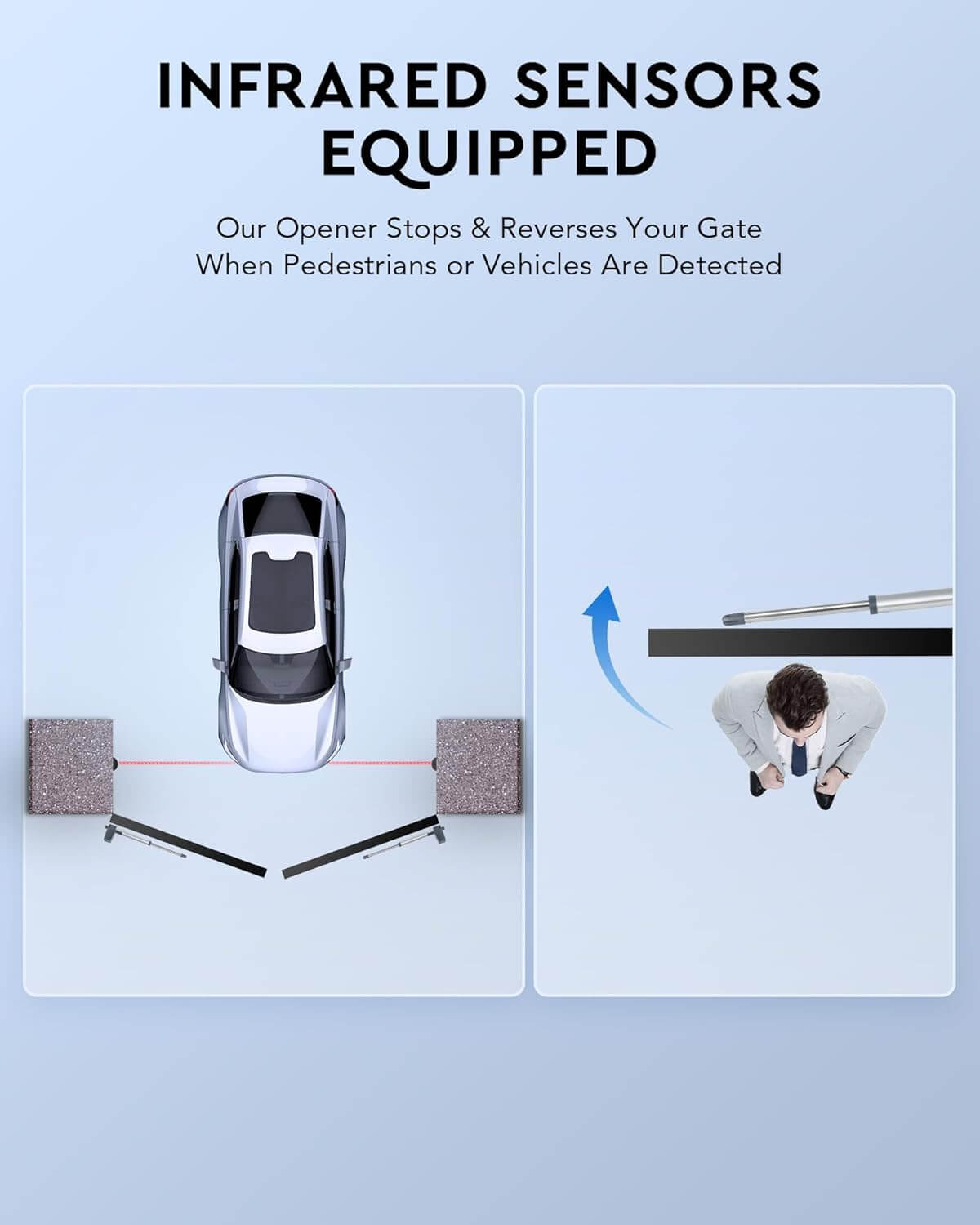

SIGMA SW-300 gate opener with infrared sensors stops for car and pedestrian detection illustration.

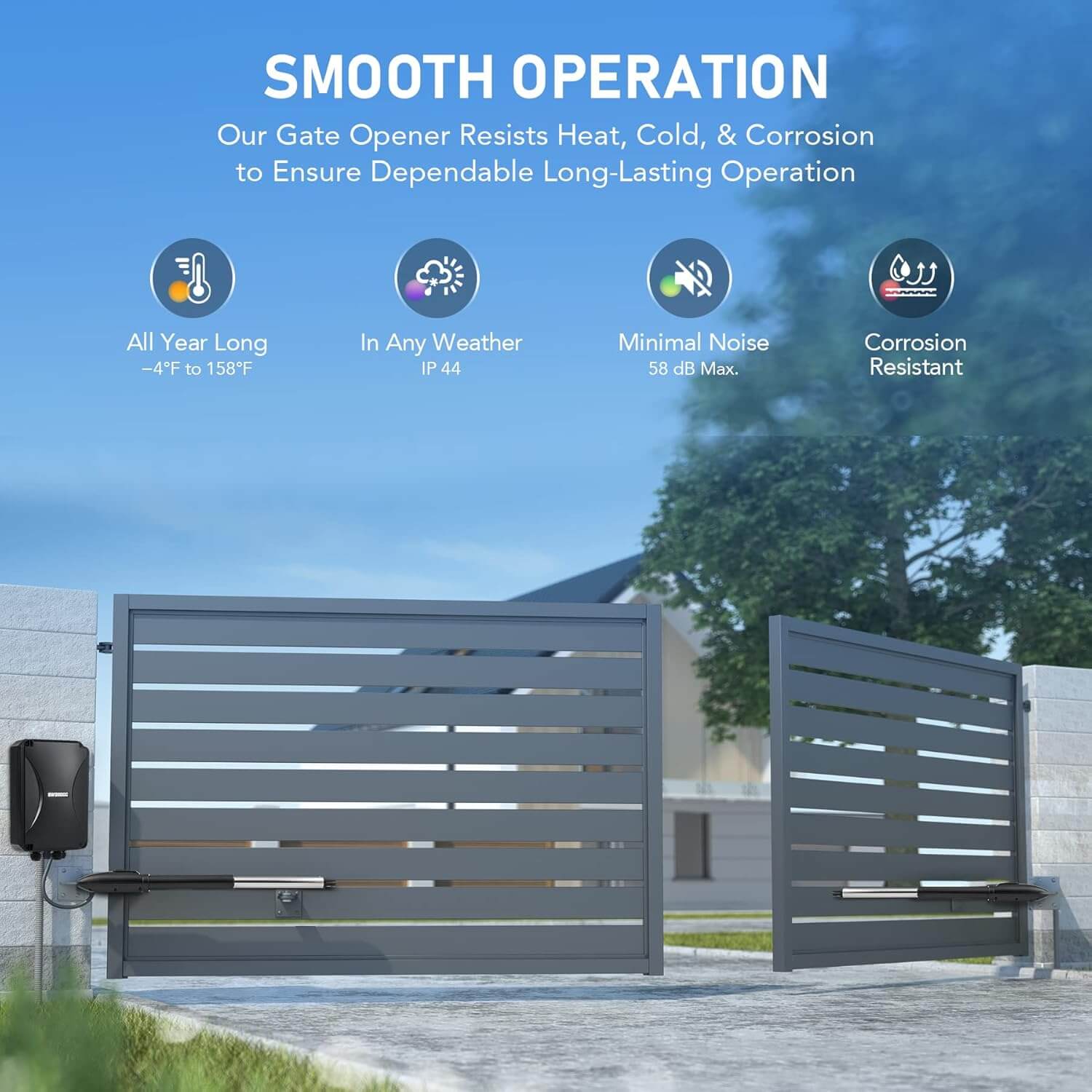

SIGMA SW-300 Solar Double Swing Gate Opener with driveway remote, showcasing smooth operation, durability, and weather resistance.

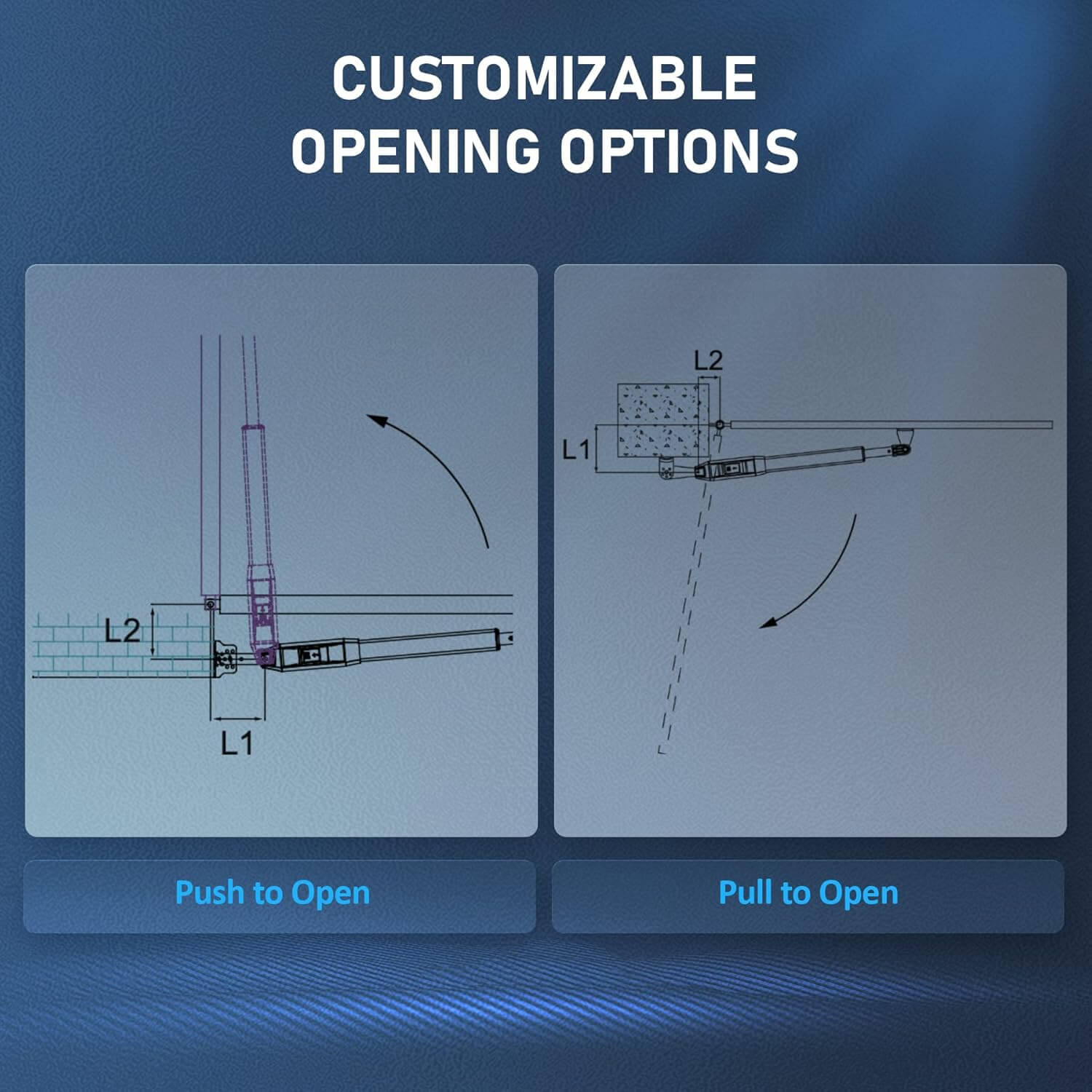

Illustration showing customizable opening options for a SIGMA SW-300 solar swing gate opener with push and pull configurations.

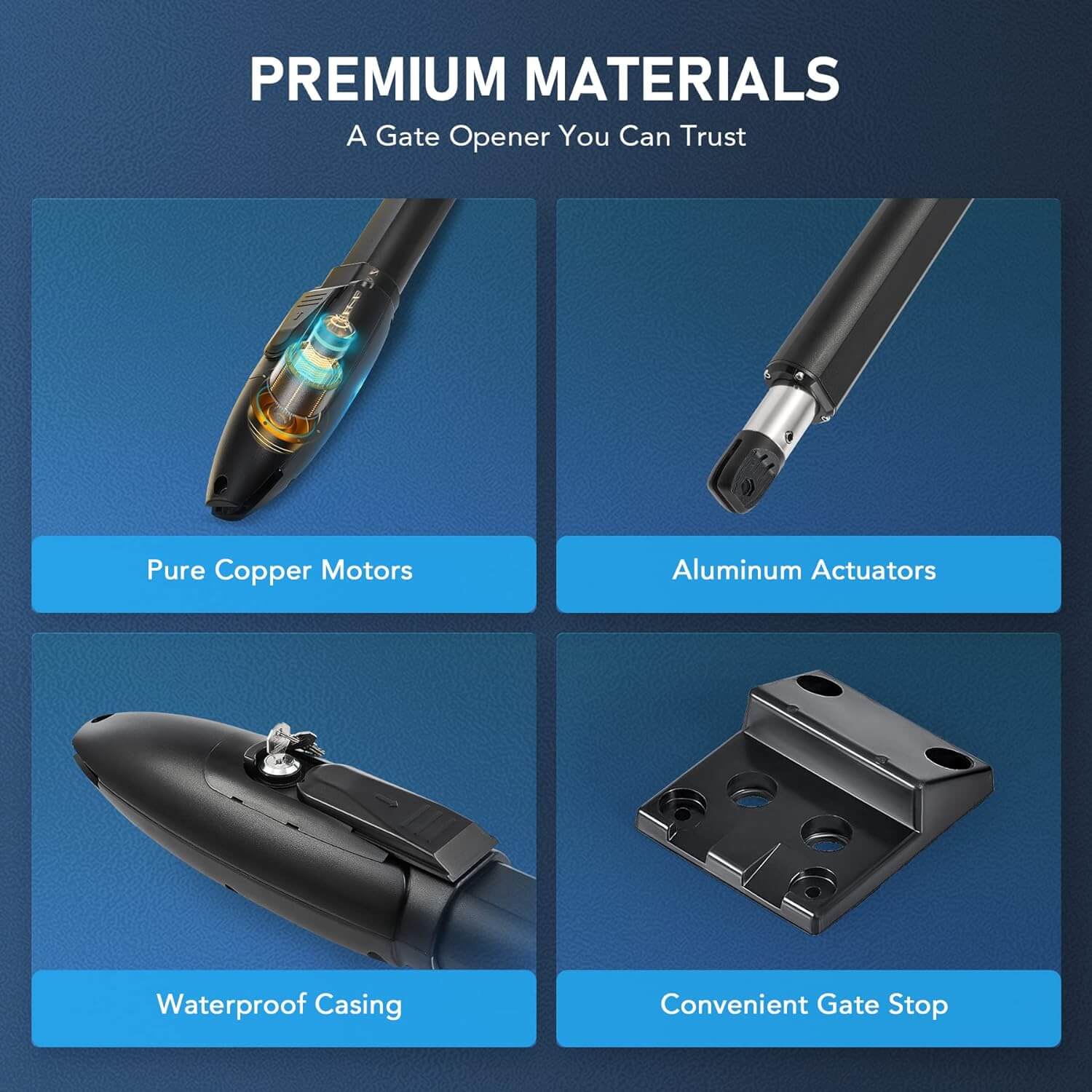

SIGMA SW-300 solar gate opener components: pure copper motors, aluminum actuators, waterproof casing, convenient gate stop.

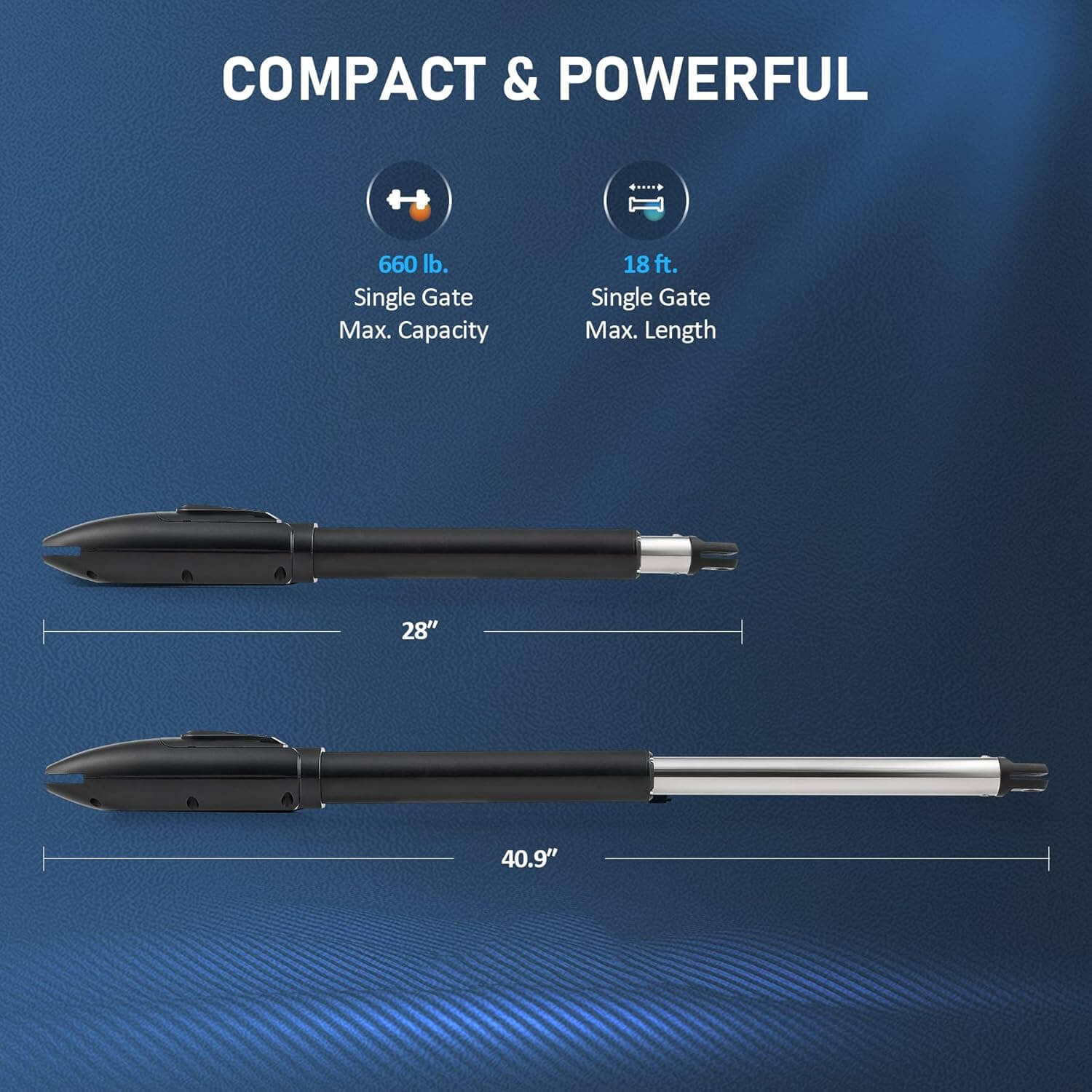

Compact and powerful swing gate opener with 660 lb capacity and 18 ft length, shown in two sizes 28" and 40.9" for driveway gates.

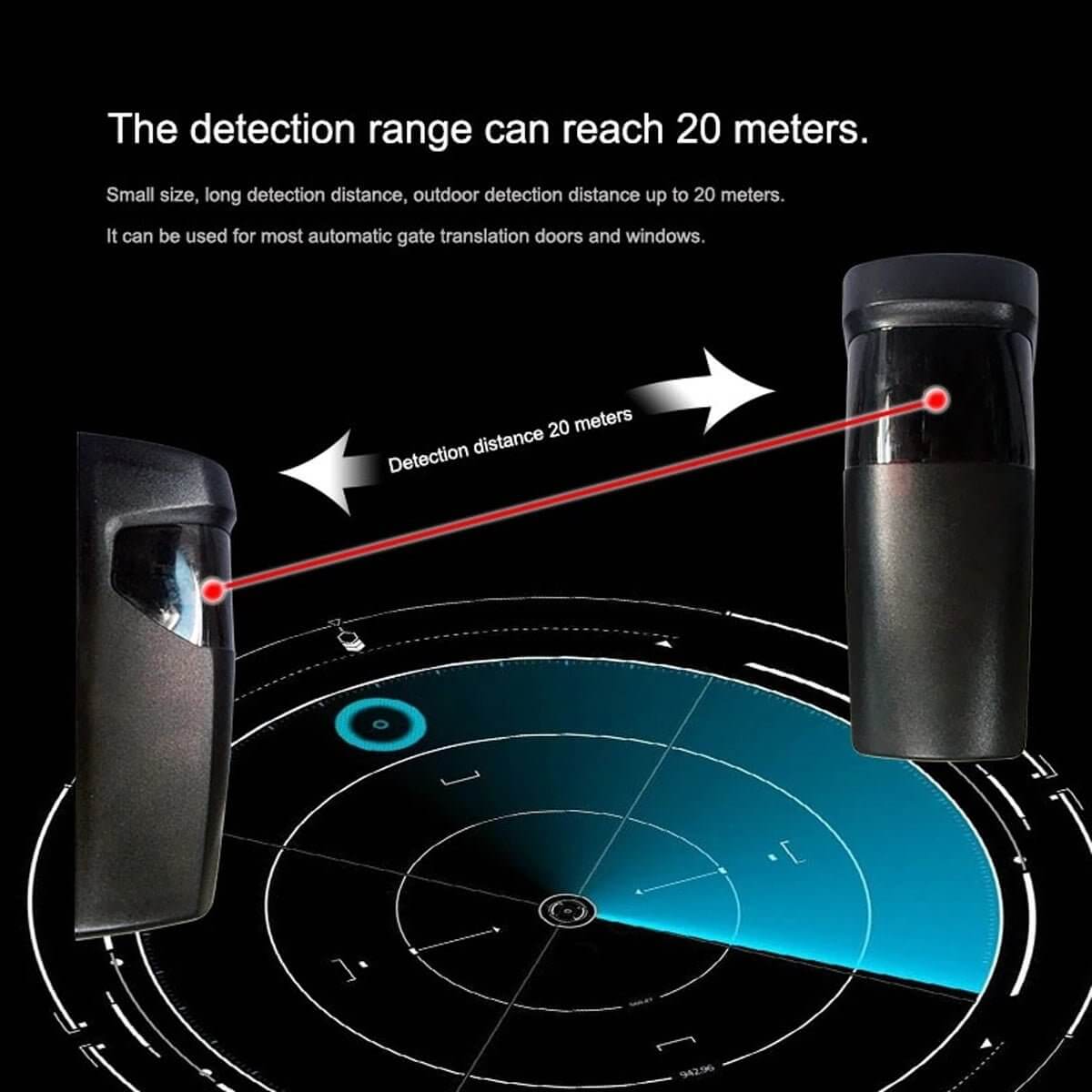

Illustration showing gate opener sensor with a 20-meter detection range for automatic driveway gate remote systems.

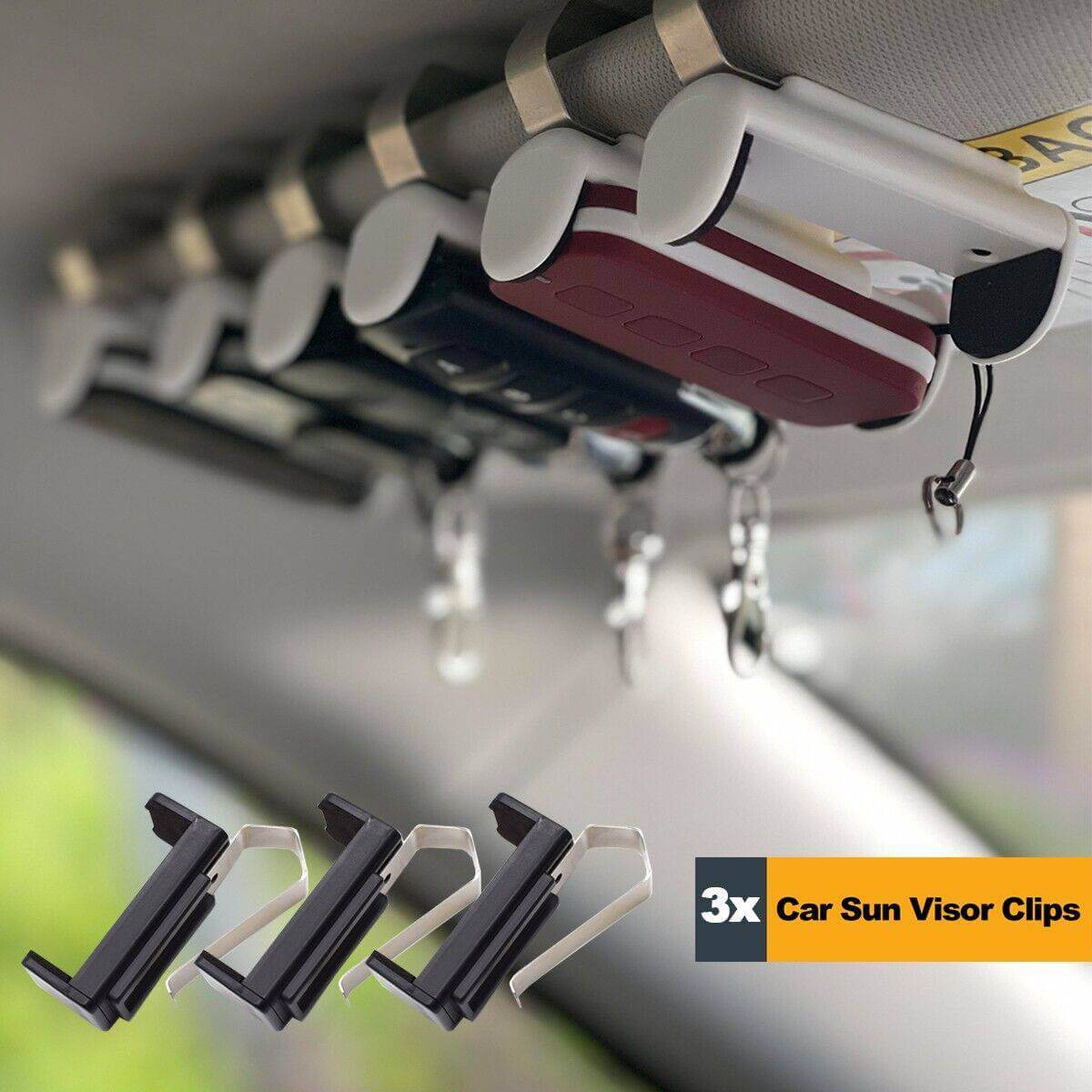

Car sun visor clips set of 3 holding sunglasses and keys in a vehicle, showcasing convenient interior organization.
Adjustable spring clip arm with soft, non-harmful design, measuring 45-67mm
Garageway.com.au

SIGMA SW-300 Full Farm Solar Double Swing Gate Opener/Motor Brackets

Sale price$755.00 Regular price$895.00
Save $140.00

SW300DC SWING GATE OPENER

  • DC Motor, support backup battery DC24V(4.5AH/9.0AH)
  • Optional single/double gate mode
  • No limit switch, stop in obstacle, need gate block
  • Automatic closing function with adjustable time(0~99S)
  • Slow start and stop, smooth operation, no inertia
  • Manual release design for emergency purpose
  • Alarm lamp, photo beam & safety beam interface
  • Support access control system to realize automatic identification and access control



Main technical parameters

Unit Model

SW300DC

Power Supply

AC220V/50Hz;AC110V/60Hz

Maximum Loading weight

450kg/Leaf

Motor Power

DC24V/50W

Driving Method

Screw driving piston type

Limit switch

Electrotechnical limit switch/hall senso

Gate Moving Speed

3.0cm/s

Max. Single-Leaf Length

2.5m

Remote control Range

≥30m

Recording of Up Remotes

32

Remote Frequency

433.92MHz

Work Duty

S2 30min

Working Temperature

-20℃~70℃

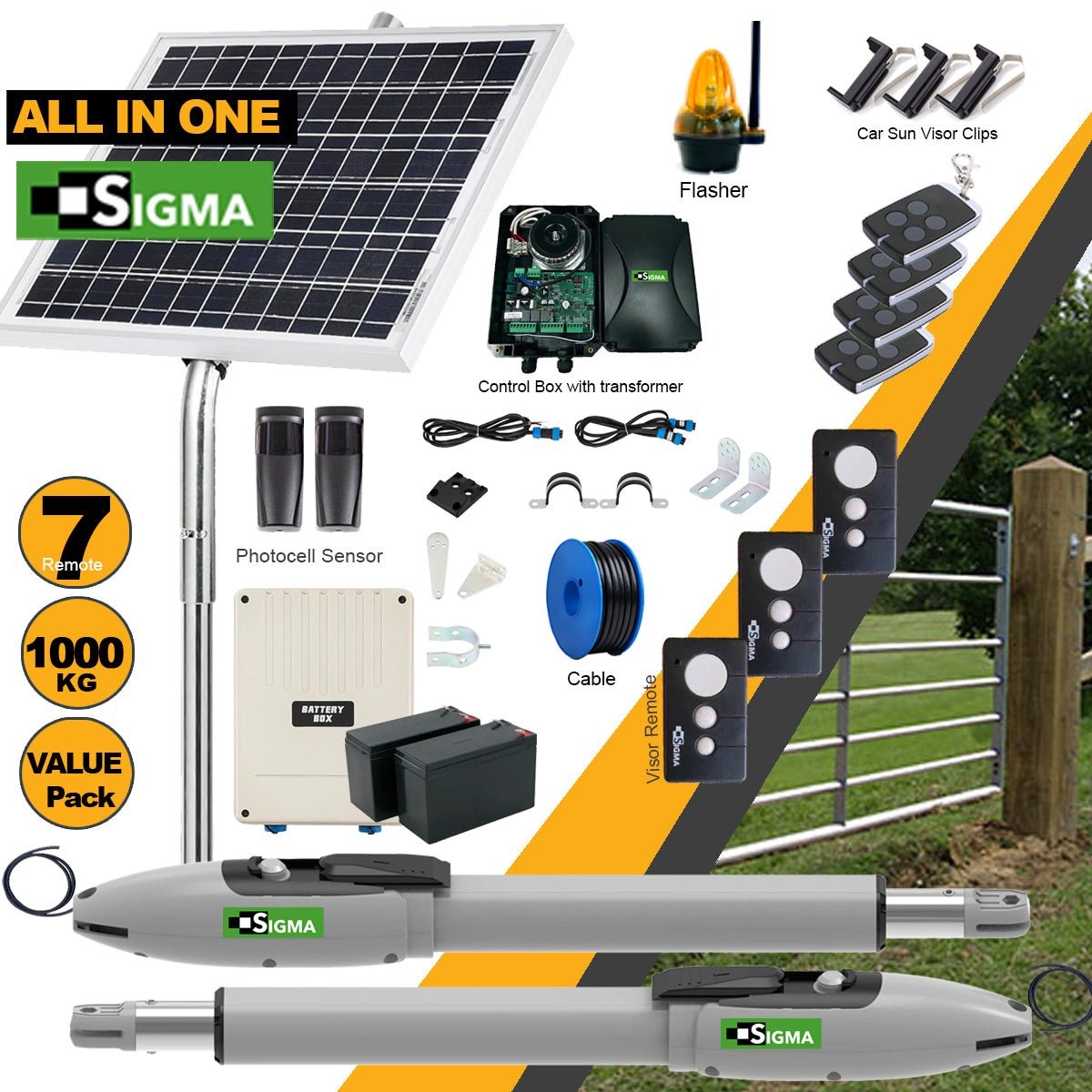

Package Include:

  • 2 x Swing Gate Opener Arms
  • 1 x 20w Solar panel + mounting Brackets
  • 2 x 12v 9Ah Batteries
  • 1 x Solar Charge Controller
  • 1 x Set Solar Kit Wiring Cable
  • 1 x Control Board
  • 1 x Transformer
  • 1 x Control box
  • 1 x Battery Box
  • 1 x Wireless Keypad
  • 1 x Wireless Push Button
  • 1 x Photocell Sensor
  • 1 x Flasher
  • 4 x Remote Controls
  • 3 x Visor Remote Controls
  • 3 x Car Sun Visor Clips
  • 1 X Manual/Instructions
