Sigma SW-350 Full Solar Powered Double Swing Gate Opener

📄 Download Installation Manual – PDF

Sigma SW-350DC Solar-Powered Swing Gate Opener – Dual Arm 24V Heavy-Duty System

The Sigma SW-350DC Swing Gate Opener is a powerful, solar-ready automation system built for residential properties requiring smooth, quiet, and reliable gate control. With support for gates up to 3.0 meters and 500kg per leaf, this DC-powered gate opener offers flexible stroke lengths, advanced safety features, and robust solar compatibility—making it ideal for homes, villas, and courtyard gates.

✅ Key Features:

• Heavy-Duty Design: Operates swing gates up to 3.0m per leaf and 500kg per gate

• 24V DC Motor: Quiet, compact, and energy-efficient with smooth operation

• Solar Powered System: Includes 20W panel, dual batteries, and solar controller

• Selectable Stroke Lengths: Choose between 29cm or 49cm depending on gate needs

• Independent Control Box: Simplifies wiring and setup

• Multiple Access Interfaces: Supports keypad, single-button openers, photo beams, and safety sensors

• Auto-Close Function: Adjustable automatic closing timer

• Built-in Mechanical Stops: Optional use of adjustable limit block eliminates ground stops

• Emergency Manual Release: Keyed release design ensures access during power outages

• Obstacle Detection: Stops on contact during opening and auto-reverses during closing

• Low Noise Operation: ≤ 60 dB for residential comfort

⚙️ Technical Specifications:

• Model: PK300DC / PK350DC

• Power Supply: AC220V/50Hz or AC110V/60Hz

• Motor Power: 24V DC, 80W

• Max Gate Weight: 500kg per leaf

• Max Gate Length: 2.5m (PK300DC), 3.0m (PK350DC)

• Gate Speed: ~20 seconds per 90° open

• Limit Switch Type: Electrotechnical

• Remote Frequency: 433.92MHz (Rolling Code)

• Remote Capacity: Stores up to 32 remotes

• Duty Cycle: S2 30min

• Operating Temperature: -20°C to 70°C

• Noise Level: ≤ 60 dB

• Gross Weight: 15.6–17.2 kg (varies by model)

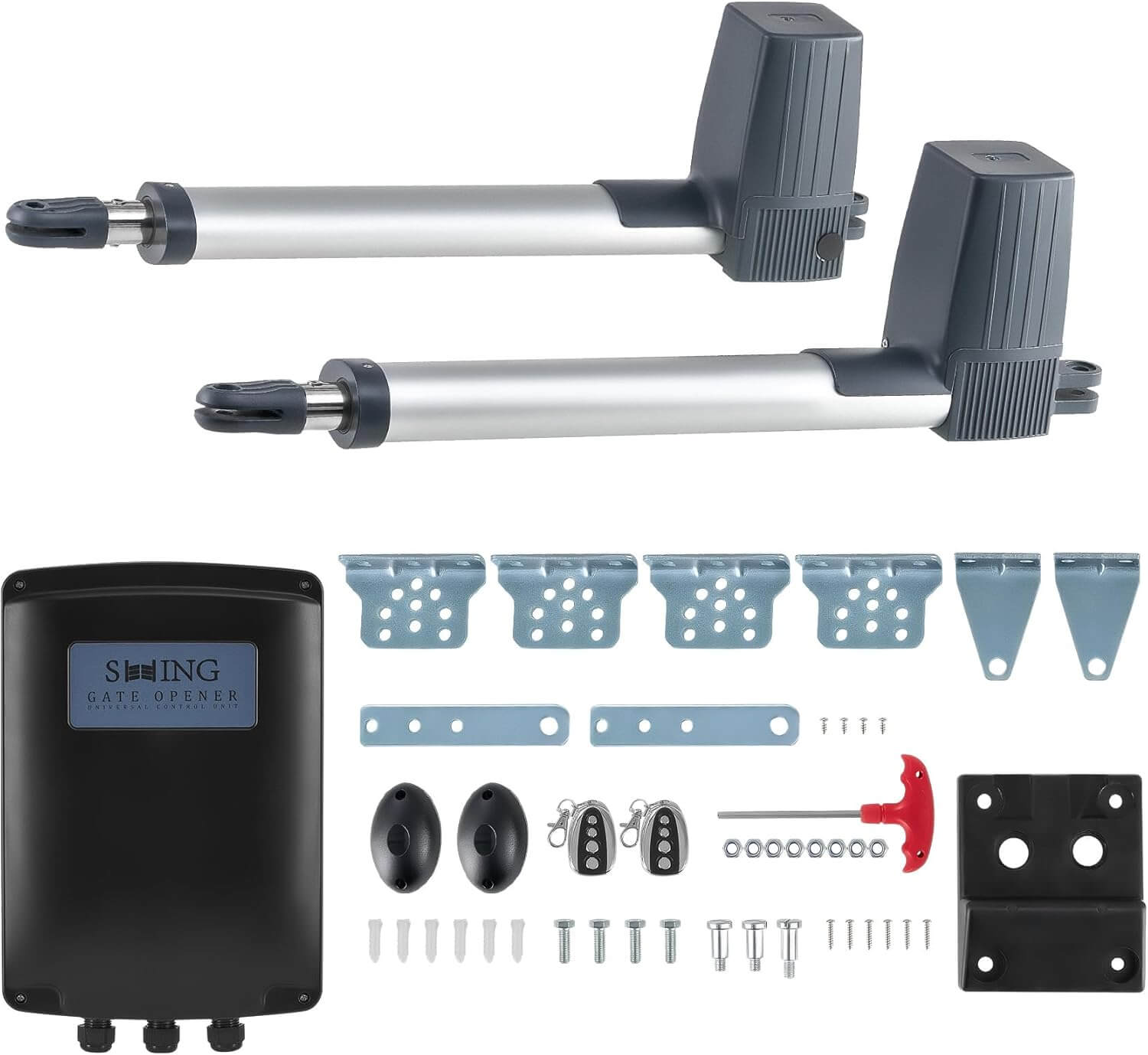

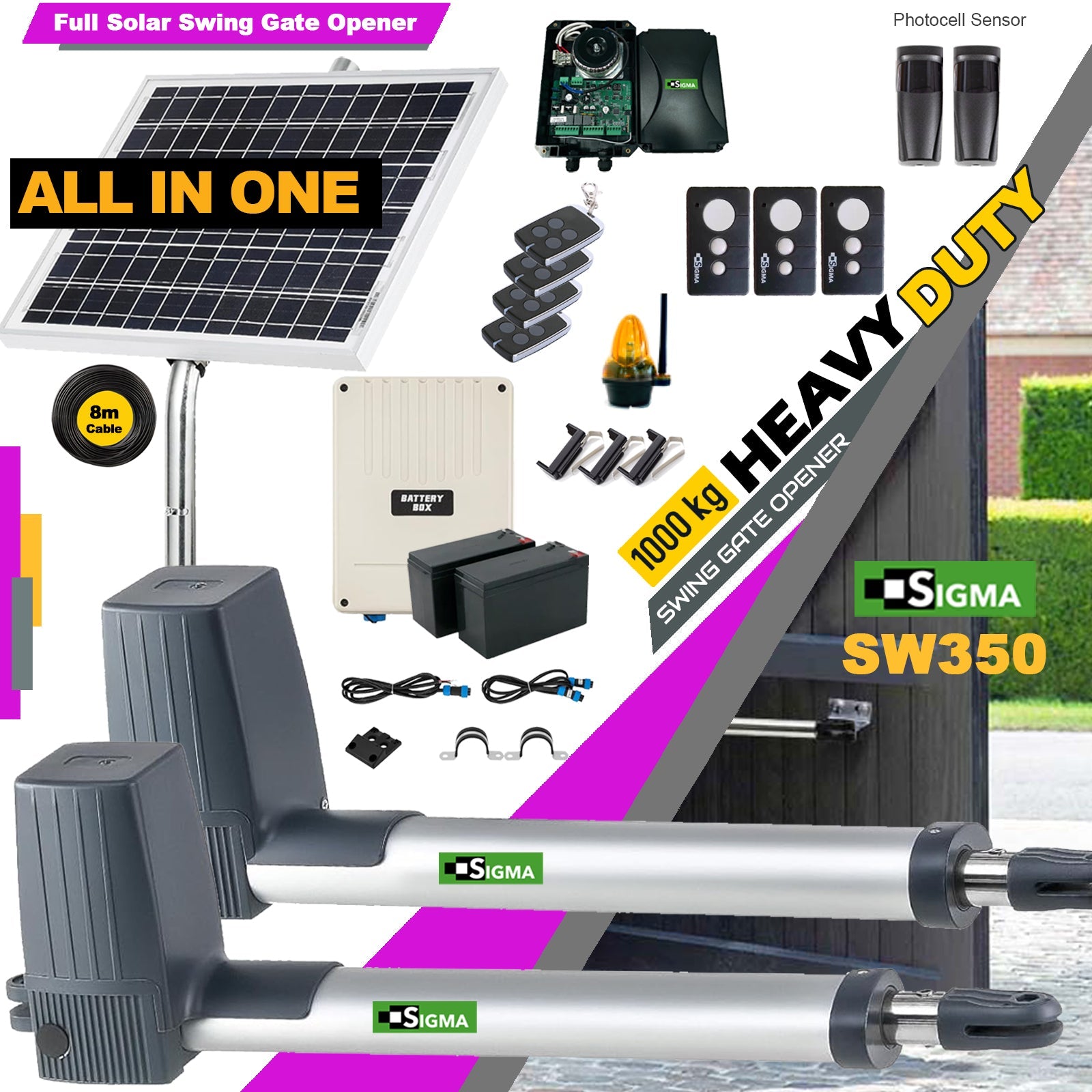

📦 Package Includes:

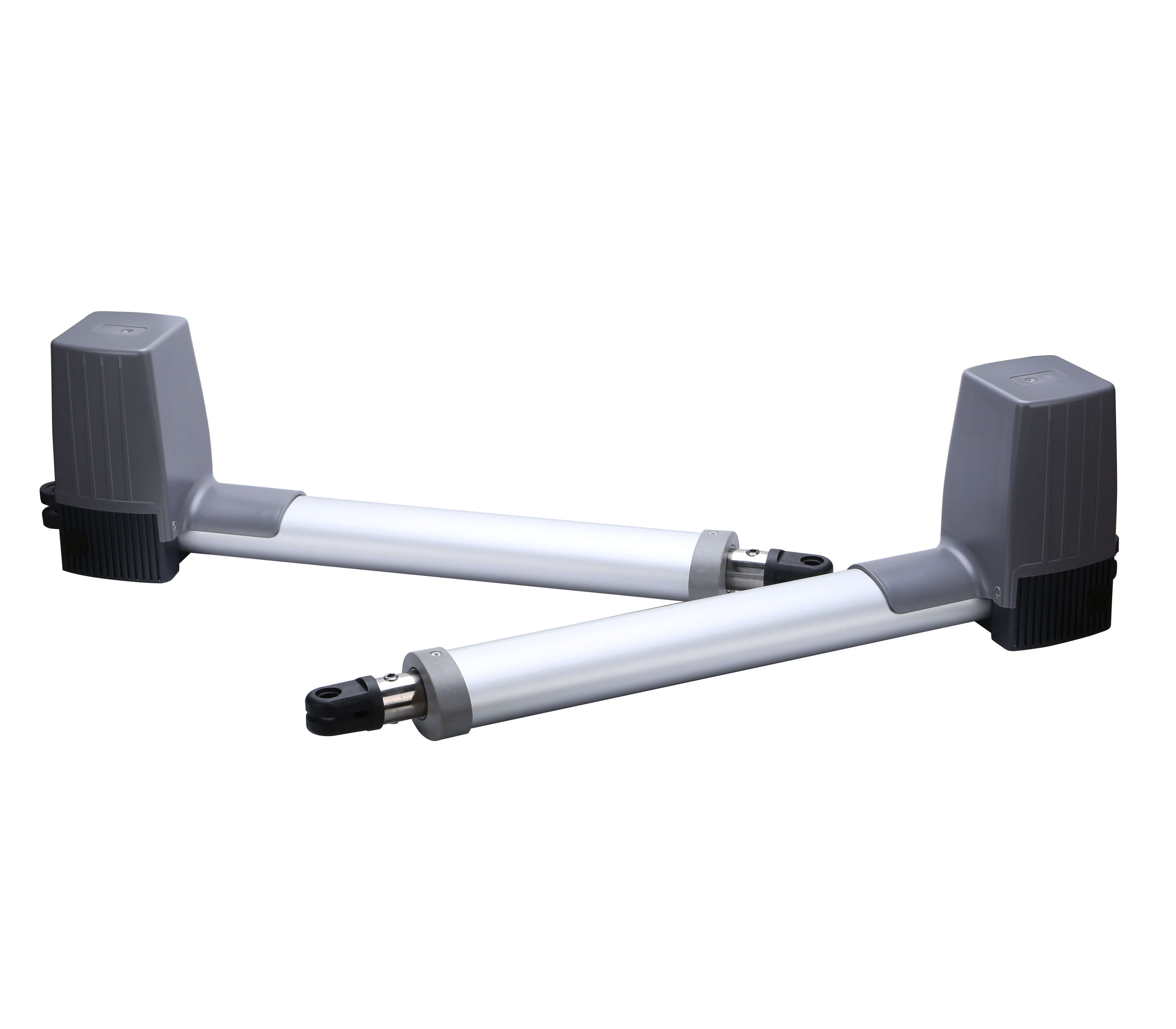

• 2 x Swing Gate Opener Arms

• 1 x 20W Solar Panel with Mounting Brackets

• 2 x 12V 9Ah Batteries

• 1 x Solar Charge Controller

• 1 x Set of Solar Wiring Cables

• 1 x Control Board

• 1 x Transformer

• 1 x Control Box

• 1 x Battery Box

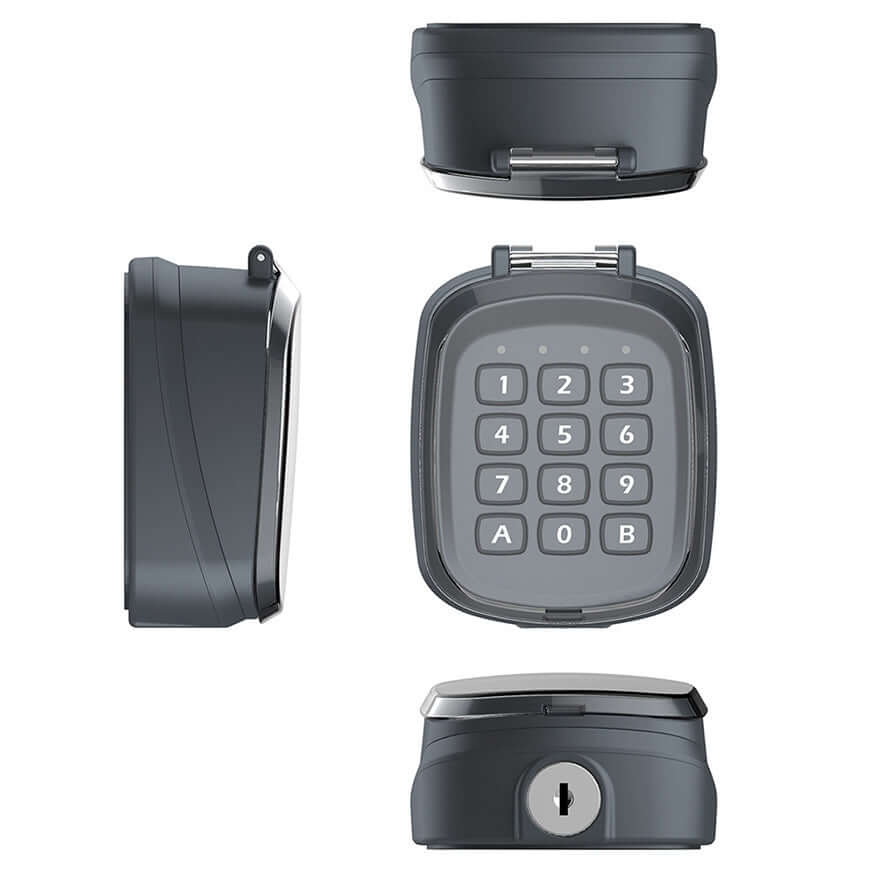

• 1 x Wireless Keypad

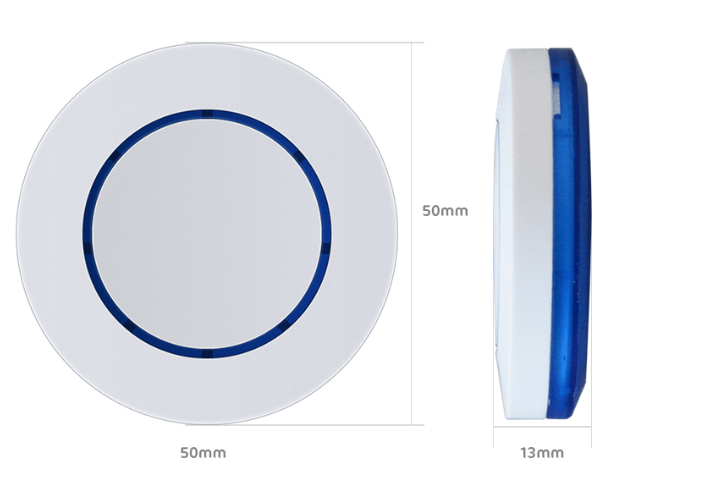

• 1 x Wireless Push Button

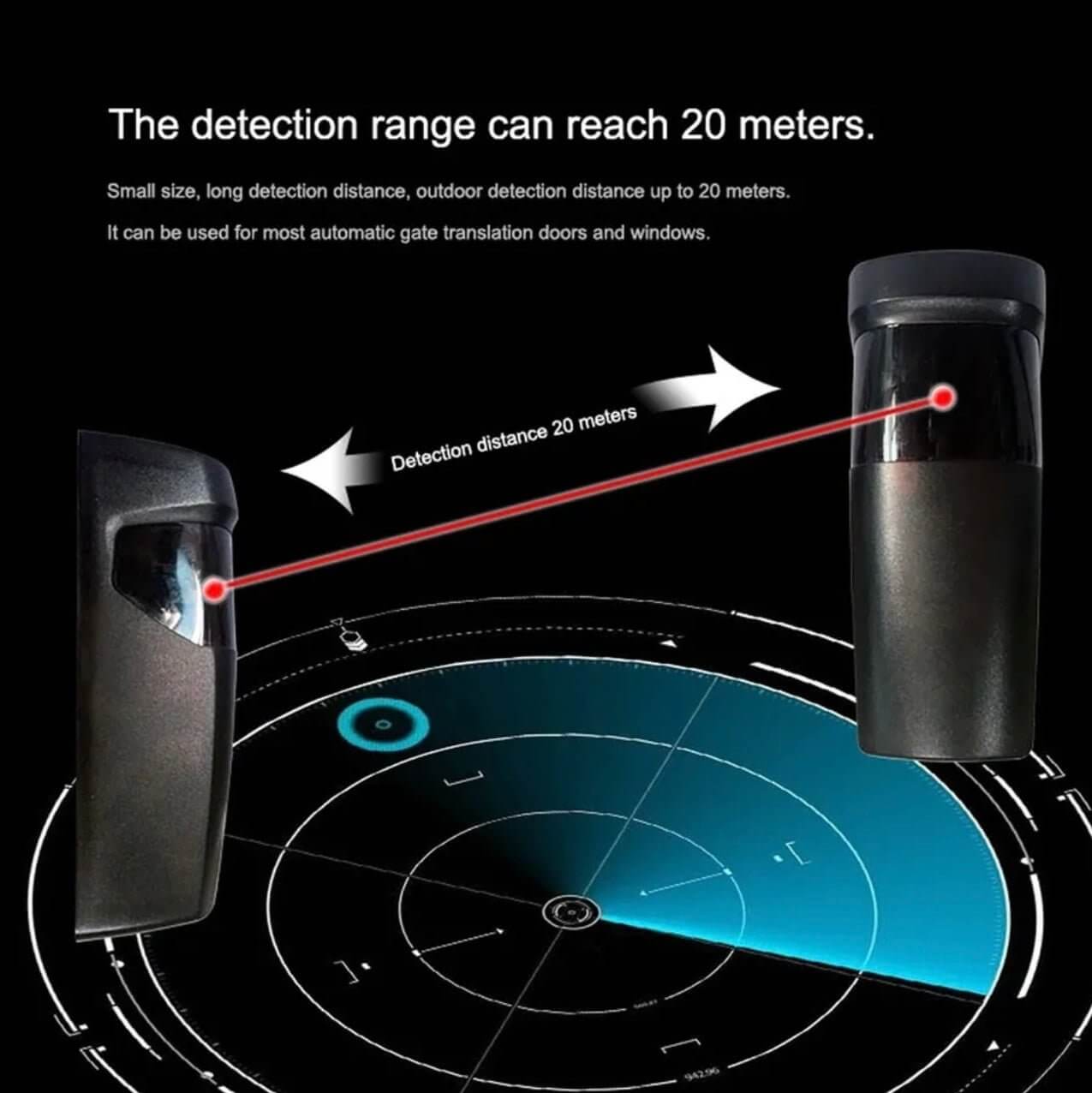

• 1 x Photocell Safety Sensor

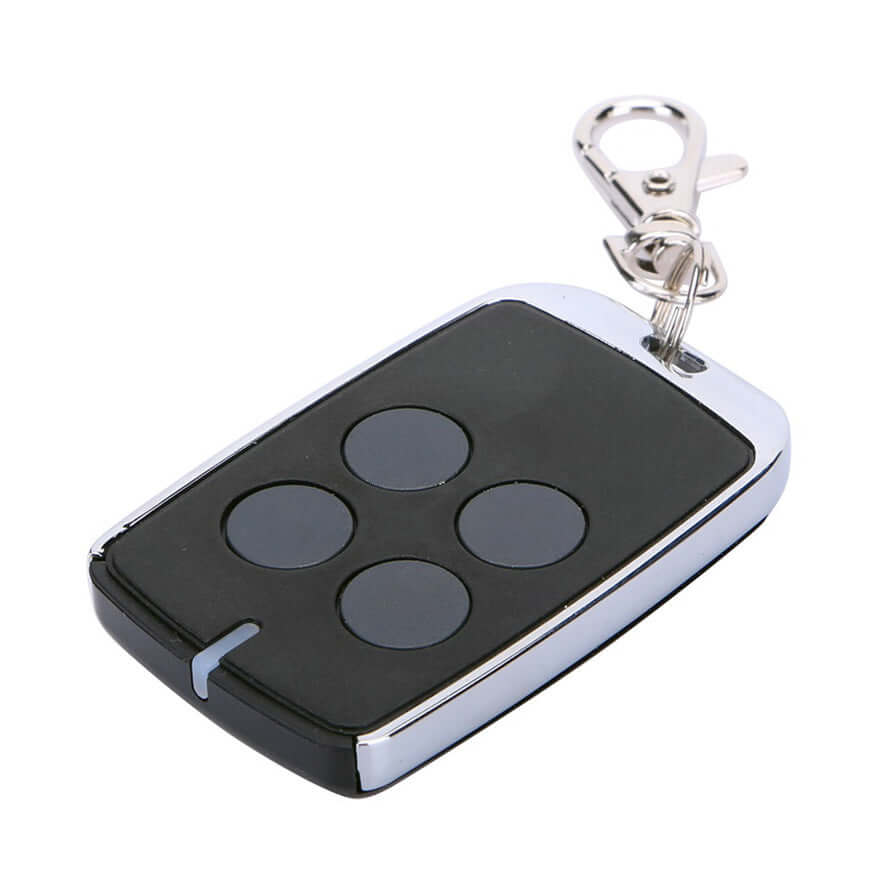

• 4 x Remote Controls

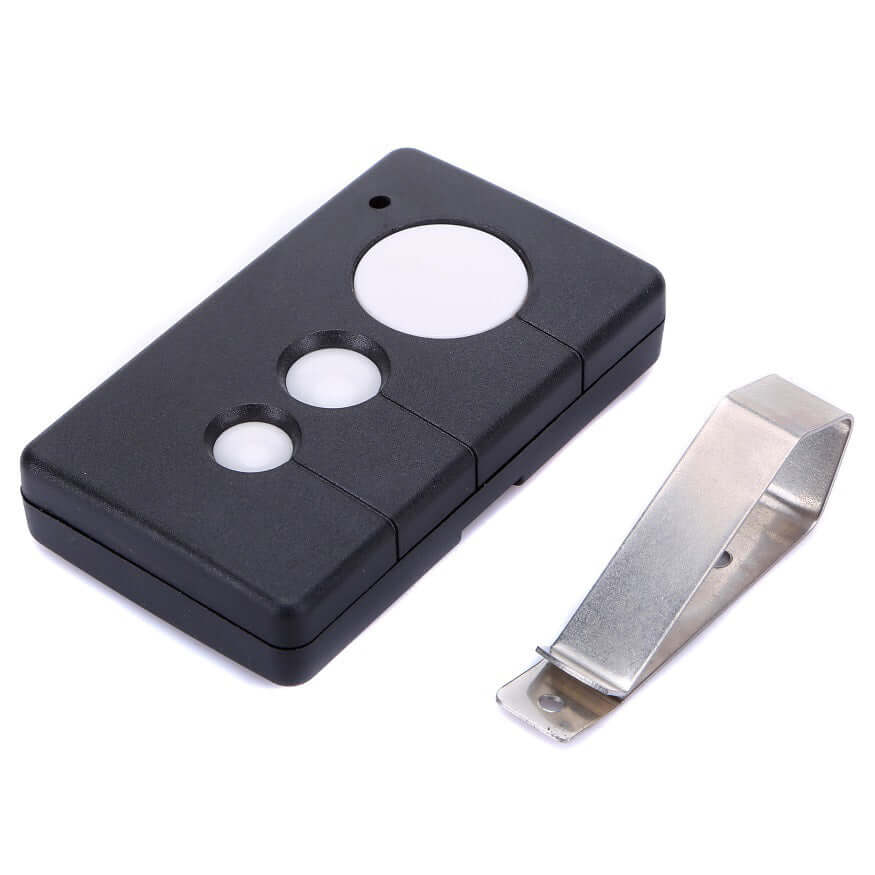

• 2 x Visor Remote Controls

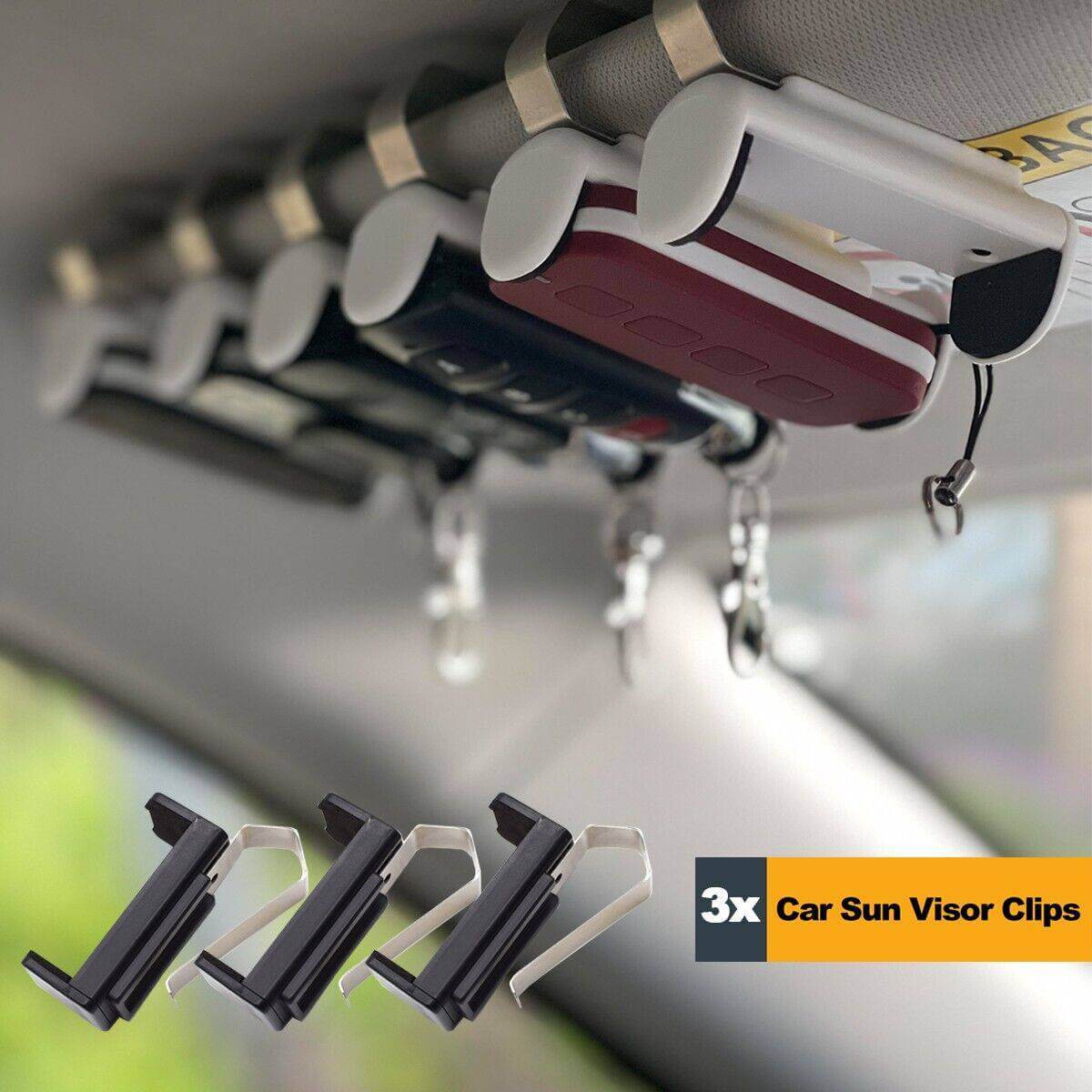

• 3 x Car Visor Clips

• 1 x User Manual

• 1 x Set of Installation Hardware

Engineered for modern homes and designed to operate efficiently in solar or AC-powered setups, the Sigma SW-350DC offers premium gate control, safety, and convenience—ideal for Australian conditions.

💡 Choose reliability and solar efficiency with the Sigma SW-350DC for your swing gate needs.
